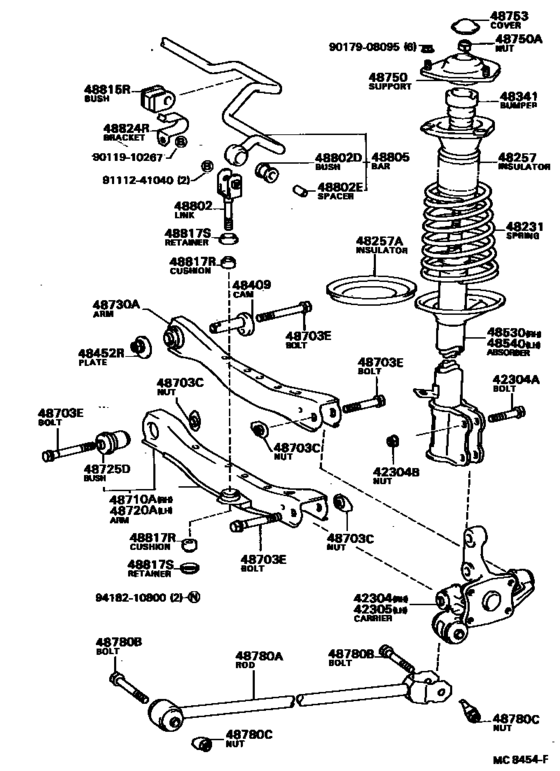

Rear Spring & Shock Absorber ([05.1982 - ] (8205- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-16010 Carrier Sub-Assy, Rear Axle, Rh[05.1982 - 04.1986] AL2# |
42304-16010 |
US $209.66 |
||
|
42304A
|
42304A
90105-12042
Bolt (For Rear Axle Carrier)
[05.1982 - 09.1984] AL2# |
90105-12042 |
— | ||
| replacement | |||||
|
42304A
|
42304A
90105-12263 Bolt (For Rear Axle Carrier)[05.1982 - 09.1984] AL2# |
90105-12263 |
US $4.96 |
||
|
42304A
|
42304A
90105-12102
Bolt (For Rear Axle Carrier)
[09.1984 - 04.1986] AL2# |
90105-12102 |
— | ||
| replacement | |||||
|
42304A
|
42304A
90105-12236 Bolt (For Rear Axle Carrier)[09.1984 - 04.1986] AL2# |
90105-12236 |
US $4.96 |
||
|
42304B
|
42304B
90179-12025 Nut (For Rear Axle Carrier)[05.1982 - 04.1986] AL2# |
90179-12025 |
from US $1.25 |
||
|
42305
|
42305
42305-16010 Carrier Sub-Assy, Rear Axle, Lh[05.1982 - 04.1986] AL2# |
42305-16010 |
US $209.66 |
||
|
48231
|
48231
48231-16091 Spring, Coil, Rear[08.1984 - 04.1986] AL2# |
48231-16091 |
US $115.02 |
||
|
48231
|
48231
48231-16121 Spring, Coil, Rear[11.1982 - 08.1984] AL21..3AHU |
48231-16121 |
US $122.30 |
||
|
48257
|
48257
48257-32030
Insulator, Rear Coil Spring
[11.1982 - 04.1986] AL2# |
48257-32030 |
— | ||
|
48257A
|
48257A
48258-16010 Insulator, Rear Coil Spring, Lower[11.1982 - 04.1986] AL2# |
48258-16010 |
US $11.68 |
||
|
48341
|
48341
48341-16010 Bumper, Rear Spring[05.1982 - 04.1986] AL2# |
48341-16010 |
US $14.27 |
||
|
48409
|
48409
48409-32010
Cam Sub-Assy, Rear Suspension Toe Adjust
[05.1982 - 04.1986] AL2# |
48409-32010 |
— | ||
|
48452R
|
48452R
48452-32010
Plate, Rear Suspension Toe Adjust, No.2
[05.1982 - 04.1986] AL2# |
48452-32010 |
— | ||
|
48530
|
48530
48530-16031 Absorber Assy, Shock, Rear Rh[11.1982 - 08.1984] AL21..3AHU |
48530-16031 |
US $285.38 |
||
|
48530
|
48530
48530-16042 Absorber Assy, Shock, Rear Rh[08.1984 - 04.1986] AL21 |
48530-16042 |
US $286.83 |
||
|
48540
|
48540
48540-16031 Absorber Assy, Shock, Rear Lh[11.1982 - 08.1984] AL21..3AHU |
48540-16031 |
US $285.38 |
||
|
48540
|
48540
48540-16042 Absorber Assy, Shock, Rear Lh[08.1984 - 04.1986] AL21 |
48540-16042 |
US $286.83 |
||
|
48703C
|
48703C
90179-12023
Nut(For Rear Suspension Arm)
[05.1982 - 04.1986] AL2# NO.1 ARM X CARRIPER |
90179-12023 |
— | ||
|
48703C
|
48703C
90179-12028 Nut(For Rear Suspension Arm)[05.1982 - 04.1986] AL2# NO.2 ARM X CARRIPER |
90179-12028 |
US $4.37 |
||
|
48703C
|
48703C
90179-12033
Nut(For Rear Suspension Arm)
[05.1982 - 04.1986] AL2# NO.1 ARM X BODY |
90179-12033 |
— | ||
|
48703E
|
48703E
90105-10052
Bolt(For Rear Suspension Arm)
[05.1982 - 04.1986] AL2# NO.2 ARM X BODY |
90105-10052 |
— | ||
|
48703E
|
48703E
90105-12037
Bolt(For Rear Suspension Arm)
[05.1982 - 04.1986] AL2# NO.2 ARM X CARRIER |
90105-12037 |
— | ||
|
48703E
|
48703E
90105-12038 Bolt(For Transaxle Case & Engine Setting)[05.1982 - 04.1986] AL2# ＊１２−１．２５ＰＸ７２−２５,NO.1 ARM |
90105-12038 |
US $4.66 |
||
|
48710A
|
48710A
48710-16020
Arm Assy, Rear Suspension, No.1 Rh
[05.1982 - 08.1985] AL21..SR |
48710-16020 |
— | ||
| replacement | |||||
|
48710A
|
48710A
48710-16021 Arm Assy, Rear Suspension, No.1 Rh[05.1982 - 08.1985] AL21..SR |
48710-16021 |
US $71.64 |
||
|
48710A
|
48710A
48710-16021 Arm Assy, Rear Suspension, No.1 Rh[08.1985 - 04.1986] AL21 |
48710-16021 |
US $71.64 |
||
|
48720A
|
48720A
48720-16020
Arm Assy, Rear Suspension, No.1 Lh
[05.1982 - 08.1985] AL21..SR |
48720-16020 |
— | ||
| replacement | |||||
|
48720A
|
48720A
48720-16021
Arm Assy, Rear Suspension, No.1 Lh
[05.1982 - 08.1985] AL21..SR |
48720-16021 |
— | ||
|
48720A
|
48720A
48720-16021
Arm Assy, Rear Suspension, No.1 Lh
[08.1985 - 04.1986] AL21 |
48720-16021 |
— | ||
|
48725D
|
48725D
48725-32080 Bush, Rear Suspension Arm, No.3[04.1986 - 04.1986] AL2# |
48725-32080 |
US $39.17 |
||
| replacement | |||||
|
48725D
|
48725D
48725-32070 Bush, Rear Suspension Arm, No.3[04.1986 - 04.1986] AL2# |
48725-32070 |
US $18.35 |
||
|
48730A
|
48730A
48730-16010 Arm Assy, Rear Suspension, No.2[05.1982 - 08.1985] AL2# |
48730-16010 |
US $71.34 |
||
| replacement | |||||
|
48730A
|
48730A
48730-32011
Arm Assy, Rear Suspension, No.2
[05.1982 - 08.1985] AL2# |
48730-32011 |
— | ||
|
48730A
|
48730A
48730-16011 Arm Assy, Rear Suspension, No.2[08.1985 - 04.1986] AL2# |
48730-16011 |
US $71.64 |
||
| replacement | |||||
|
48730A
|
48730A
48730-32011
Arm Assy, Rear Suspension, No.2
[08.1985 - 04.1986] AL2# |
48730-32011 |
— | ||
|
48750
|
48750
48750-12020 Support Assy, Rear Suspension[08.1983 - 04.1986] AL2# |
48750-12020 |
US $82.99 |
||
|
48750A
|
48750A
94182-11400 Nut(For Idler Arm Support)[05.1982 - 04.1986] AL2# |
94182-11400 |
US $4.96 |
||
|
48753
|
48753
48753-16010
Cover, Rear Suspension Support
[05.1982 - 04.1986] AL2# |
48753-16010 |
— | ||
|
48780A
|
48780A
48780-16010 Rod Assy, Strut, Rear[05.1982 - 04.1986] AL2# |
48780-16010 |
US $82.99 |
||
|
48780B
|
48780B
90105-12035
Bolt(For Rear Suspension Arm)
[05.1982 - 04.1986] AL2# |
90105-12035 |
— | ||
|
48780C
|
48780C
90179-12023
Nut(For Rear Suspension Arm)
[05.1982 - 04.1986] AL2# ROD X CARRIPER |
90179-12023 |
— | ||
|
48780C
|
48780C
90179-12033
Nut(For Rear Suspension Arm)
[08.1982 - 04.1986] AL2# ROD X BODY |
90179-12033 |
— | ||
|
48802
|
48802
48802-32010
Link Sub-Assy, Stabilizer
[05.1982 - 04.1986] AL21..SR |
48802-32010 |
— | ||
|
48802D
|
48802D
90385-11021 Bush, Stabilizer Link[05.1982 - 04.1986] AL21..SR |
90385-11021 |
from US $1.56 |
||
|
48802E
|
48802E
90560-10275 Spacer(For Rear Stabilizer Bar)[05.1982 - 04.1986] AL21..SR |
90560-10275 |
from US $2.24 |
||
|
48805
|
48805
48805-16010 Bar Sub-Assy, Rear Stabilizer[05.1982 - 04.1986] AL21..SR |
48805-16010 |
US $171.81 |
||
|
48815R
|
48815R
48818-16030 Bush, Stabilizer(For Rear)[05.1982 - 04.1986] AL21..SR |
48818-16030 |
US $8.59 |
||
|
48817R
|
48817R
48817-10010 Cushion, Front Stabilizer[05.1982 - 04.1986] AL21..SR |
48817-10010 |
from US $3.84 |
||
|
48817S
|
48817S
90948-02024 Retainer, Cushion, No.1(For Front Stabilizer Bar)[05.1982 - 04.1986] AL21..SR |
90948-02024 |
from US $2.88 |
||
|
48824R
|
48824R
48832-16020 Bracket, Stabilizer(For Rear)[05.1982 - 04.1986] AL21..SR |
48832-16020 |
US $8.44 |
||
|
9011910267
|
9011910267
90119-10267 Bolt(for Transaxle & Engine Setting) |
90119-10267 |
US $1.89 |
||
| replacement | |||||
|
9011910267
|
9011910267
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9017908095
|
9017908095
90179-08095 Nut(For Rear Suspension Support) |
90179-08095 |
US $2.88 |
||
|
9111241040
|
9111241040
91112-41040
Bolt(For Rear Stabilizer)
|
91112-41040 |
— | ||
| replacement | |||||
|
9111241040
|
9111241040
91111-51040 Shaft, Control Select Lever (For Column Shift) |
91111-51040 |
US $3.36 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.44 |
||
