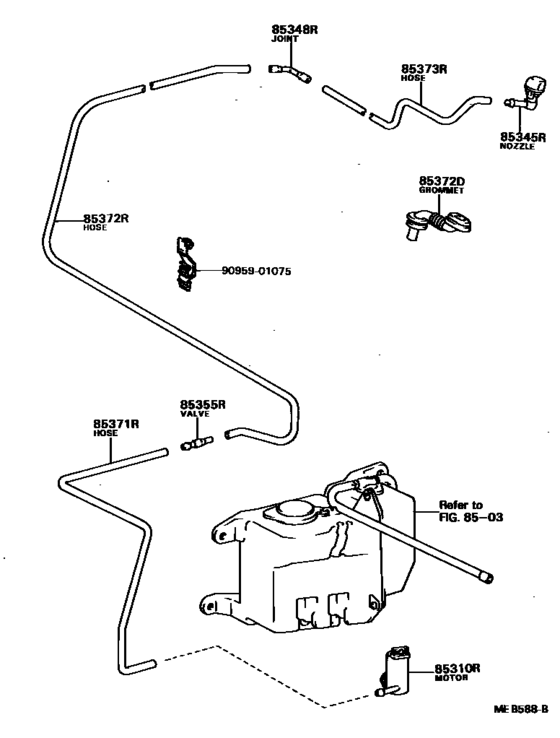

Rear Washer ([05.1982 - ] (8205- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85310R
|
85310R
85310-16030
Motor Assy, Rear Washer
[05.1982 - 08.1984] AL2# |
85310-16030 |
— | ||
|
85310R
|
85310R
85310-22080 Motor And Pump Assy, Windshield Washer[08.1984 - 04.1986] AL2#..DLX,GL,SR |
85310-22080 |
from US $49.97 |
||
|
85345R
|
85345R
85341-16080
Nozzle, Rear Washer
[01.1983 - 08.1984] AL2# |
85341-16080 |
— | ||
|
85348R
|
85348R
85355-20080
Joint, Rear Washer Hose, No.1
[05.1982 - 08.1984] AL2# |
85355-20080 |
— | ||
|
85355R
|
85355R
85031-14080
Joint, Windshield Washer Hose, No.1
[05.1982 - 08.1984] AL2# |
85031-14080 |
— | ||
| replacement | |||||
|
85355R
|
85355R
85031-12250
Valve Sub-Assy, Washer
[05.1982 - 08.1984] AL2# |
85031-12250 |
— | ||
|
85371R
|
85371R
90446-06013 Hose, Windshield Washer (From Motor To Joint)[08.1982 - 08.1984] AL2# 長さ＝４５０ |
90446-06013 |
from US $0.70 |
||
|
85371R
|
85371R
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.1984 - 01.1985] AL21..3ASU ＊Ｈ，Ｌ＝４８０ |
90446-07001 |
from US $2.10 |
||
|
85372D
|
85372D
85372-14020
Grommet, Rear Washer Hose
[05.1982 - 08.1984] AL2# |
85372-14020 |
— | ||
|
85372R
|
85372R
90099-33053
Hose, Rear Washer (From Joint To Joint Or Nozzle)
[11.1983 - 08.1984] AL2# L=3120 |
90099-33053 |
— | ||
| replacement | |||||
|
85372R
|
85372R
90099-33406
Hose, Rear Washer (From Joint To Joint Or Nozzle)
[11.1983 - 08.1984] AL2# L=3120 |
90099-33406 |
— | ||
|
85373R
|
85373R
90099-33299 Joint, Windshield Washer Elbow, No.2[05.1982 - 08.1984] AL2# ＊Ｈ，Ｌ＝４００ |
90099-33299 |
from US $4.37 |
||
|
9095901075
|
9095901075
90959-01075 New Genuine Part |
90959-01075 |
US $1.89 |
||
