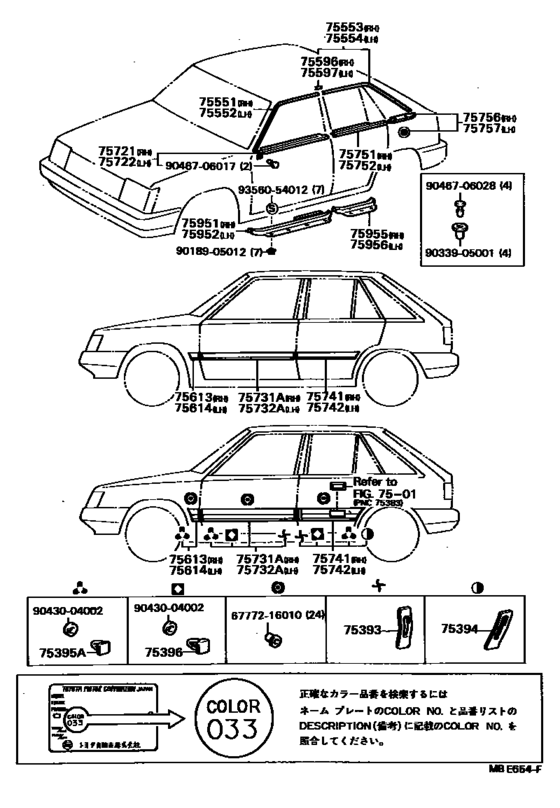

Side Moulding ([05.1982 - ] (8205- )5DS) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75393
|
75393
75393-16010 Retainer, Outside Moulding, No.2[05.1982 - 04.1986] AL21 |
75393-16010 |
US $11.07 |
||
|
75394
|
75394
75394-16010 Retainer, Outside Moulding, No.3[05.1982 - 04.1986] AL21..5DS RH |
75394-16010 |
US $11.07 |
||
|
75394
|
75394
75395-16010 Retainer, Outside Moulding, No.3[05.1982 - 04.1986] AL21..5DS LH |
75395-16010 |
US $11.07 |
||
|
75395A
|
75395A
75397-16010 Clip, Outside Moulding, No.1[05.1982 - 08.1984] AL21..5DS |
75397-16010 |
US $6.12 |
||
|
75396
|
75396
75396-16010
Clip, Outside Moulding, No.2
[08.1984 - 04.1986] AL21..5DS |
75396-16010 |
— | ||
|
75551
|
75551
75551-16040 Moulding, Roof Drip Side Finish, Rh[05.1982 - 04.1986] AL2#..5DS |
75551-16040 |
US $72.80 |
||
|
75552
|
75552
75552-16040 Moulding, Roof Drip Side Finish, Lh[05.1982 - 04.1986] AL2#..5DS |
75552-16040 |
US $72.80 |
||
|
75553
|
75553
75553-16020 Moulding, Roof Drip Side Finish, Rh[05.1982 - 04.1986] AL2#..5DS |
75553-16020 |
US $60.28 |
||
|
75554
|
75554
75554-16020 Moulding, Roof Drip Side Finish, Lh[05.1982 - 04.1986] AL2#..5DS |
75554-16020 |
US $60.28 |
||
|
75596
|
75596
75596-16030
Cover, Roof Drip Side Finish Moulding Joint, Rh
[05.1982 - 04.1986] AL2#..5DS; AL2#..3DS..(DLX,GL,SE,SR) |
75596-16030 |
— | ||
|
75597
|
75597
75596-16030
Cover, Roof Drip Side Finish Moulding Joint, Rh
[05.1982 - 04.1986] AL2#..5DS; AL2#..3DS..(DLX,GL,SE,SR) |
75596-16030 |
— | ||
|
75613
|
75613
75611-16130-01
Moulding, Front Fender, Outside Rh
[01.1983 - 04.1986] AL21..SR BLACK,BLACK |
75611-16130-01 |
— | ||
|
75614
|
75614
75612-16120-01 Moulding, Front Fender, Outside Lh[01.1983 - 04.1986] AL21..SR BLACK,BLACK |
75612-16120-01 |
US $17.76 |
||
|
75721
|
75721
75710-19145 Moulding, Front Door Belt, Rh[05.1982 - 04.1986] AL2#..5DS..(GL,SE,SR) |
75710-19145 |
US $96.10 |
||
| replacement | |||||
|
75721
|
75721
75710-16060 Moulding, Front Door Belt, Rh[05.1982 - 04.1986] AL2#..5DS..(GL,SE,SR) |
75710-16060 |
US $96.10 |
||
|
75721
|
75721
75710-19155 Moulding, Front Door Belt, Rh[05.1983 - 04.1986] AL2#..5DS..(GL,SE,SR) W/DOOR MIRROR |
75710-19155 |
US $96.10 |
||
| replacement | |||||
|
75721
|
75721
75710-16070 Moulding, Front Door Belt, Rh[05.1983 - 04.1986] AL2#..5DS..(GL,SE,SR) W/DOOR MIRROR |
75710-16070 |
US $96.10 |
||
|
75722
|
75722
75720-19145 Moulding, Front Door Belt, Lh[05.1982 - 04.1986] AL2#..5DS..(GL,SE,SR) |
75720-19145 |
US $116.48 |
||
| replacement | |||||
|
75722
|
75722
75720-16060 Moulding, Front Door Belt, Lh[05.1982 - 04.1986] AL2#..5DS..(GL,SE,SR) |
75720-16060 |
US $119.39 |
||
|
75722
|
75722
75720-19155 Moulding, Front Door Belt, Lh[05.1983 - 04.1986] AL2#..5DS..(GL,SE,SR) W/DOOR MIRROR |
75720-19155 |
US $96.10 |
||
| replacement | |||||
|
75722
|
75722
75720-16070 Moulding, Front Door Belt, Lh[05.1983 - 04.1986] AL2#..5DS..(GL,SE,SR) W/DOOR MIRROR |
75720-16070 |
US $96.10 |
||
|
75731A
|
75731A
75731-16200-01 Moulding, Front Door, Outside Rh[01.1983 - 04.1986] AL21..5DS..SR BLACK,BLACK |
75731-16200-01 |
US $151.42 |
||
|
75732A
|
75732A
75732-16200-01 Moulding, Front Door, Outside Lh[01.1983 - 04.1986] AL21..5DS..SR BLACK,BLACK |
75732-16200-01 |
US $151.42 |
||
|
75741
|
75741
75741-16120-01 Moulding, Rear Door, Outside Rh[01.1983 - 04.1986] AL21..5DS..SR BLACK,BLACK |
75741-16120-01 |
US $94.64 |
||
|
75742
|
75742
75742-16110-01 Moulding, Rear Door, Outside Lh[01.1983 - 04.1986] AL21..5DS..SR BLACK,BLACK |
75742-16110-01 |
US $94.64 |
||
|
75751
|
75751
75730-16020 Moulding, Rear Door Belt, Rh[05.1982 - 04.1986] AL2#..5DS..(GL,SE,SR) |
75730-16020 |
US $75.71 |
||
|
75752
|
75752
75740-16020 Moulding, Rear Door Belt, Lh[05.1982 - 04.1986] AL2#..5DS..(GL,SE,SR) |
75740-16020 |
US $75.71 |
||
|
75756
|
75756
75671-19025 Moulding, Quarter Belt, Rh[05.1982 - 04.1986] AL2#..5DS..(GL,SE,SR) |
75671-19025 |
US $32.03 |
||
| replacement | |||||
|
75756
|
75756
75671-16050
Moulding, Quarter Belt, Rh
[05.1982 - 04.1986] AL2#..5DS..(GL,SE,SR) |
75671-16050 |
— | ||
|
75757
|
75757
75672-19025 Moulding, Quarter Belt, Lh[05.1982 - 04.1986] AL2#..5DS..(GL,SE,SR) |
75672-19025 |
US $25.04 |
||
| replacement | |||||
|
75757
|
75757
75672-16050
Moulding, Quarter Belt, Lh
[05.1982 - 04.1986] AL2#..5DS..(GL,SE,SR) |
75672-16050 |
— | ||
|
75951
|
75951
67913-16040-02 Plate, Front Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS DARK WINE,DARK WINE,TRIM3# |
67913-16040-02 |
US $47.17 |
||
|
75951
|
75951
67913-16040-03 Plate, Front Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS GRAY,GRAY,TRIM1# |
67913-16040-03 |
US $47.17 |
||
| replacement | |||||
|
75951
|
75951
67913-16040-01 Plate, Front Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS GRAY,GRAY,TRIM1# |
67913-16040-01 |
US $47.17 |
||
|
75951
|
75951
67913-16040-06 Plate, Front Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS BROWN,BROWN,TRIM4# |
67913-16040-06 |
US $47.17 |
||
| replacement | |||||
|
75951
|
75951
67913-16040-01 Plate, Front Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS BROWN,BROWN,TRIM4# |
67913-16040-01 |
US $47.17 |
||
|
75951
|
75951
67913-16040-13 Plate, Front Door Scuff, Outside Rh[08.1984 - 04.1986] AL2#..5DS GRAY,GRAY,TRIM1# |
67913-16040-13 |
US $47.17 |
||
|
75952
|
75952
67914-16040-02 Plate, Front Door Scuff, Outside Lh[05.1982 - 08.1984] AL2#..5DS DARK WINE,DARK WINE,TRIM3# |
67914-16040-02 |
US $47.17 |
||
|
75952
|
75952
67914-16040-03 Plate, Front Door Scuff, Outside Lh[05.1982 - 08.1984] AL2#..5DS GRAY,GRAY,TRIM1# |
67914-16040-03 |
US $47.17 |
||
| replacement | |||||
|
75952
|
75952
67914-16040-01 Plate, Front Door Scuff, Outside Lh[05.1982 - 08.1984] AL2#..5DS GRAY,GRAY,TRIM1# |
67914-16040-01 |
US $47.17 |
||
|
75952
|
75952
67914-16040-06 Plate, Front Door Scuff, Outside Lh[05.1982 - 08.1984] AL2#..5DS BROWN,BROWN,TRIM4# |
67914-16040-06 |
US $47.17 |
||
| replacement | |||||
|
75952
|
75952
67914-16040-01 Plate, Front Door Scuff, Outside Lh[05.1982 - 08.1984] AL2#..5DS BROWN,BROWN,TRIM4# |
67914-16040-01 |
US $47.17 |
||
|
75952
|
75952
67914-16040-13 Plate, Front Door Scuff, Outside Lh[08.1984 - 04.1986] AL2#..5DS GRAY,GRAY,TRIM1# |
67914-16040-13 |
US $47.17 |
||
|
75955
|
75955
67917-16020-02 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS DARK WINE,DARK WINE,TRIM3# |
67917-16020-02 |
US $20.24 |
||
| replacement | |||||
|
75955
|
75955
67917-16020-01 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS DARK WINE,DARK WINE,TRIM3# |
67917-16020-01 |
US $20.24 |
||
|
75955
|
75955
67917-16020-03 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS GRAY,GRAY,TRIM1# |
67917-16020-03 |
US $20.24 |
||
| replacement | |||||
|
75955
|
75955
67917-16020-01 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS GRAY,GRAY,TRIM1# |
67917-16020-01 |
US $20.24 |
||
|
75955
|
75955
67917-16020-06 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS BROWN,BROWN,TRIM4# |
67917-16020-06 |
US $20.24 |
||
| replacement | |||||
|
75955
|
75955
67917-16020-01 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS BROWN,BROWN,TRIM4# |
67917-16020-01 |
US $20.24 |
||
|
75955
|
75955
67917-16020-13 Plate, Rear Door Scuff, Outside Rh[08.1984 - 04.1986] AL2#..5DS GRAY,GRAY,TRIM1# |
67917-16020-13 |
US $20.24 |
||
|
75956
|
75956
67917-16020-02 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS DARK WINE,DARK WINE,TRIM3# |
67917-16020-02 |
US $20.24 |
||
| replacement | |||||
|
75956
|
75956
67917-16020-01 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS DARK WINE,DARK WINE,TRIM3# |
67917-16020-01 |
US $20.24 |
||
|
75956
|
75956
67917-16020-03 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS GRAY,GRAY,TRIM1# |
67917-16020-03 |
US $20.24 |
||
| replacement | |||||
|
75956
|
75956
67917-16020-01 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS GRAY,GRAY,TRIM1# |
67917-16020-01 |
US $20.24 |
||
|
75956
|
75956
67917-16020-06 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS BROWN,BROWN,TRIM4# |
67917-16020-06 |
US $20.24 |
||
| replacement | |||||
|
75956
|
75956
67917-16020-01 Plate, Rear Door Scuff, Outside Rh[05.1982 - 08.1984] AL2#..5DS BROWN,BROWN,TRIM4# |
67917-16020-01 |
US $20.24 |
||
|
75956
|
75956
67917-16020-13 Plate, Rear Door Scuff, Outside Rh[08.1984 - 04.1986] AL2#..5DS GRAY,GRAY,TRIM1# |
67917-16020-13 |
US $20.24 |
||
|
6777216010
|
6777216010
67772-16010 Weatherstrip, Back Door Trim, Lh |
67772-16010 |
US $2.48 |
||
|
9018905012
|
9018905012
90189-05012 New Genuine Part |
90189-05012 |
US $3.52 |
||
|
9033905001
|
9033905001
90339-05001
New Genuine Part
|
90339-05001 |
— | ||
|
9043004002
|
9043004002
90430-04002 Gasket(For Roof Side Vent Louver) |
90430-04002 |
US $3.20 |
||
| replacement | |||||
|
9043004002
|
9043004002
90202-05017 New Genuine Part |
90202-05017 |
from US $1.60 |
||
|
9046706017
|
9046706017
90467-06017
Clip, Battery Service Cover, No.2
|
90467-06017 |
— | ||
|
9046706028
|
9046706028
90467-06028
Clip, Quarter Belt Moulding, No.1
|
90467-06028 |
— | ||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
