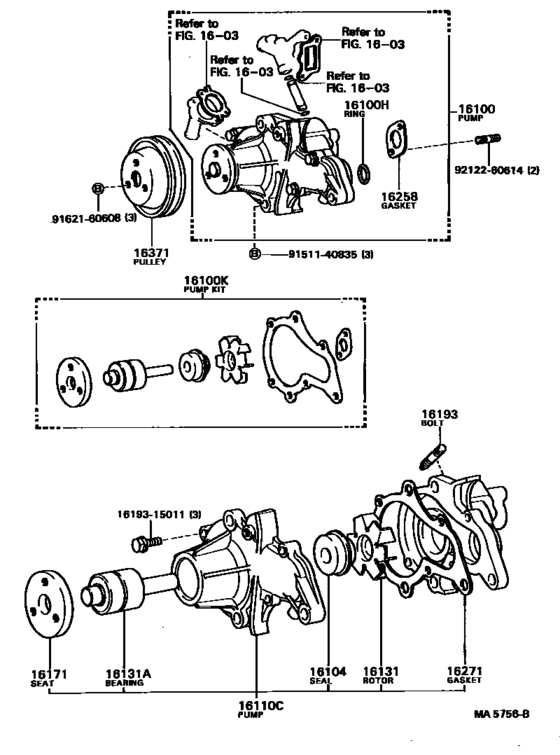

Water Pump ([05.1982 - ] (8205- )) Diagram Toyota COROLLA
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 08.1984
- To
- 04.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-19027 Pump Assy, Engine Water[05.1982 - 04.1986] 2AU,3A#..AL2# |
16100-19027 |
US $158.70 |
||
| replacement | |||||
|
16100
|
16100
16100-19086
Pump Assy, Engine Water
[05.1982 - 04.1986] 2AU,3A#..AL2# |
16100-19086 |
— | ||
|
16100H
|
16100H
96711-24035
Ring, O(For Water Pump)
[05.1982 - 04.1986] 2AU,3A#..AL2# |
96711-24035 |
— | ||
| replacement | |||||
|
16100H
|
16100H
96761-24035 Ring, O(For Water Pump)[05.1982 - 04.1986] 2AU,3A#..AL2# |
96761-24035 |
from US $2.85 |
||
|
16100K
|
16100K
04161-15020 Pump Kit, Water[05.1982 - 04.1986] 2AU,3A#..AL2# |
04161-15020 |
US $57.66 |
||
| replacement | |||||
|
16100K
|
16100K
04161-15021
Pump Kit, Water
[05.1982 - 04.1986] 2AU,3A#..AL2# |
04161-15021 |
— | ||
|
16104
|
16104
16104-15020 Seal Set, Water Pump[05.1984 - 04.1986] 2AU,3A#..AL2# |
16104-15020 |
US $22.13 |
||
|
16110C
|
16110C
16110-19035 Pump Assy, Water, W/o Cover[05.1982 - 04.1986] 2AU,3A#..AL2# |
16110-19035 |
US $112.11 |
||
| replacement | |||||
|
16110C
|
16110C
16110-19036
Pump Assy, Water, W/o Cover
[05.1982 - 04.1986] 2AU,3A#..AL2# |
16110-19036 |
— | ||
|
16131
|
16131
16131-15010
Rotor, Water Pump
[05.1982 - 04.1986] 2AU,3A#..AL2# |
16131-15010 |
— | ||
|
16131A
|
16131A
90369-30024
Bearing, Water Pump
[05.1982 - 04.1986] 2AU,3A#..AL2# |
90369-30024 |
— | ||
|
16171
|
16171
16171-15011 Seat, Water Pump Pulley[05.1982 - 04.1986] 2AU,3A#..AL2# |
16171-15011 |
US $13.83 |
||
|
16193
|
16193
16193-15010 Bolt,stud(For Oil Pump)[05.1982 - 04.1986] 2AU,3A#..AL2# |
16193-15010 |
US $5.76 |
||
|
16258
|
16258
16258-15011 Gasket(For Heater Return)[05.1982 - 04.1986] 2AU,3A#..AL2# |
16258-15011 |
US $8 |
||
|
16271
|
16271
16124-15010
Gasket, Water Pump Cover
[05.1982 - 04.1986] 2AU,3A#..AL2# |
16124-15010 |
— | ||
| replacement | |||||
|
16271
|
16271
16124-16020 Gasket, Water Pump Cover[05.1982 - 04.1986] 2AU,3A#..AL2# |
16124-16020 |
US $7.36 |
||
|
16371
|
16371
16371-15011 Pulley, Fan[05.1982 - 04.1986] 2AU,3A#..AL2# |
16371-15011 |
US $38.29 |
||
|
1619315011
|
1619315011
16193-15011 Bolt, Stud(For Water Pump Cover) |
16193-15011 |
US $4.80 |
||
|
9151140835
|
9151140835
91511-40835
Bolt (for Pawl Stopper Plate)
|
91511-40835 |
— | ||
| replacement | |||||
|
9151140835
|
9151140835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.56 |
||
|
9162160608
|
9162160608
91621-60608 New Genuine Part |
91621-60608 |
US $4.22 |
||
| replacement | |||||
|
9162160608
|
9162160608
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9212260614
|
9212260614
92122-60614 Bolt, Stud(For Oil Strainer) |
92122-60614 |
US $2.56 |
||
