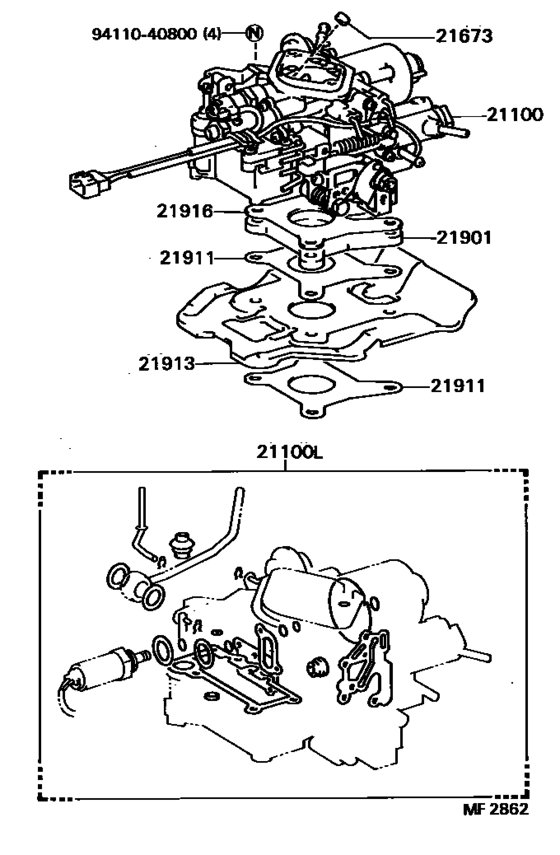

Carburetor Assembly ([05.1982 - 08.1984] (8205-8408)3AHU) Diagram Toyota COROLLA
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21100
|
21100
21100-15250 Carburetor Assy[05.1982 - 08.1984] 3AHU..AL21 |
21100-15250 |
US $1,659.84 |
||
|
21100L
|
21100L
04212-15060 Gasket Kit, Carburetor[05.1982 - 01.1984] 3AHU..AL21 |
04212-15060 |
US $63.19 |
||
| replacement | |||||
|
21100L
|
21100L
04212-15062 Gasket Kit, Carburetor[05.1982 - 01.1984] 3AHU..AL21 |
04212-15062 |
US $69.01 |
||
|
21100L
|
21100L
04212-15061 Gasket Kit, Carburetor[01.1984 - 08.1984] 3AHU..AL21 |
04212-15061 |
US $47.76 |
||
| replacement | |||||
|
21100L
|
21100L
04212-15062 Gasket Kit, Carburetor[01.1984 - 08.1984] 3AHU..AL21 |
04212-15062 |
US $69.01 |
||
|
21100L
|
21100L
04212-15110 Gasket Kit, Carburetor[08.1984 - 02.1985] 2AU,3A#..AL2# |
04212-15110 |
US $36.69 |
||
| replacement | |||||
|
21100L
|
21100L
04212-15111
Gasket Kit, Carburetor
[08.1984 - 02.1985] 2AU,3A#..AL2# |
04212-15111 |
— | ||
|
21673
|
21673
21673-13280
Cap, Idle Limit
[08.1984 - 04.1986] 2AU,3A#..AL2# |
21673-13280 |
— | ||
|
21673
|
21673
21673-15010 Cap, Idle Limit[05.1982 - 04.1983] 3AHU..AL21 |
21673-15010 |
US $8.74 |
||
| replacement | |||||
|
21673
|
21673
21673-15011 Cap, Idle Limit[05.1982 - 04.1983] 3AHU..AL21 |
21673-15011 |
US $8.74 |
||
|
21673
|
21673
21673-15011 Cap, Idle Limit[04.1983 - 08.1984] 3AHU..AL21 |
21673-15011 |
US $8.74 |
||
|
21901
|
21901
21901-15020 Insulator Sub-Assy, Carburetor Heat, No.1[05.1982 - 10.1982] 3AHU..AL21 |
21901-15020 |
US $65.81 |
||
| replacements | |||||
|
21901
|
21901
21901-15021 Insulator Sub-Assy, Carburetor Heat, No.1[05.1982 - 10.1982] 3AHU..AL21 |
21901-15021 |
US $65.67 |
||
|
21901
|
21901
21911-15020 Gasket, Carburetor, No.2[05.1982 - 10.1982] 3AHU..AL21 |
21911-15020 |
US $8.01 |
||
|
21901
|
21901
21901-15021 Insulator Sub-Assy, Carburetor Heat, No.1[10.1982 - 08.1984] 3AHU..AL21 |
21901-15021 |
US $65.67 |
||
|
21911
|
21911
21914-15010 Gasket, Carburetor[05.1982 - 05.1984] 3AHU..AL21 |
21914-15010 |
US $7.43 |
||
| replacement | |||||
|
21911
|
21911
21914-15030 Gasket, Carburetor[05.1982 - 05.1984] 3AHU..AL21 |
21914-15030 |
US $7.86 |
||
|
21911
|
21911
21914-15030 Gasket, Carburetor[05.1984 - 08.1984] 3AHU..AL21 |
21914-15030 |
US $7.86 |
||
|
21913
|
21913
21913-15020 Insulator, Carburetor Heat, No.2[05.1982 - 08.1984] 3AHU..AL21 |
21913-15020 |
US $24.61 |
||
| replacement | |||||
|
21913
|
21913
21913-15070 Insulator, Carburetor Heat, No.2[05.1982 - 08.1984] 3AHU..AL21 |
21913-15070 |
US $24.75 |
||
|
21916
|
21916
21911-15020 Gasket, Carburetor, No.2[10.1982 - 08.1984] 3AHU..AL21 |
21911-15020 |
US $8.01 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
