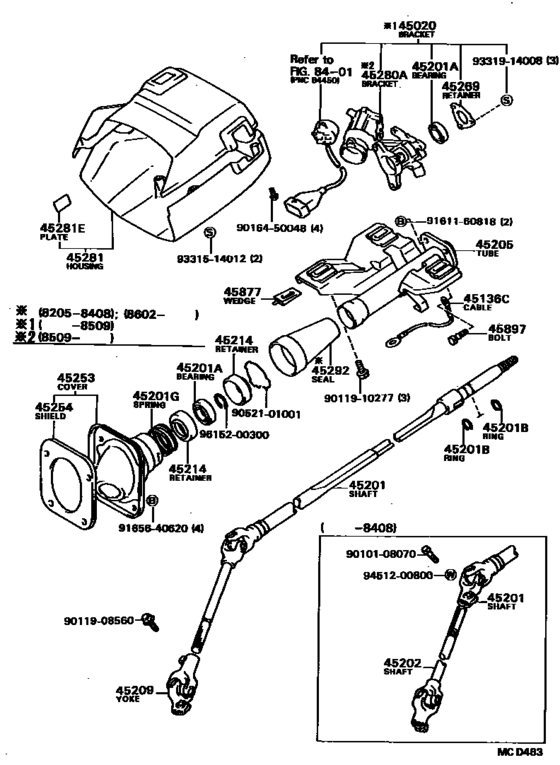

Steering Column & Shaft ([05.1982 - 08.1984] (8205-8408)CTD,DLX,GL,SR ; (8408- )) Diagram Toyota COROLLA
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SR
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45020
|
45020
45020-16020
Bracket Assy, Steering Column Upper W/switch
[05.1982 - 09.1985] AL2# |
45020-16020 |
— | ||
|
45136C
|
45136C
90980-07204 Cable, Bond(For Horn Earth)[05.1982 - 04.1986] AL2# |
90980-07204 |
US $7.28 |
||
|
45201
|
45201
45210-16040 Shaft Sub-Assy, Steering Main[08.1984 - 04.1986] AL2#..DLX,GL,SR W/POWER STEERING |
45210-16040 |
US $321.78 |
||
|
45201
|
45201
45210-16050 Shaft Sub-Assy, Steering Main[05.1982 - 08.1984] AL2# |
45210-16050 |
US $356.72 |
||
|
45201
|
45201
45210-16060 Shaft Sub-Assy, Steering Main[08.1984 - 04.1986] AL2# |
45210-16060 |
US $321.78 |
||
|
45201A
|
45201A
90363-18003 Bearing(For Steering Main Shaft)[05.1982 - 08.1984] AL2#..CTD,DLX,GL,SR UPR |
90363-18003 |
US $9.90 |
||
| replacement | |||||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[05.1982 - 08.1984] AL2#..CTD,DLX,GL,SR UPR |
90363-18038 |
US $10.56 |
||
|
45201A
|
45201A
90363-30015 Bearing(For Steering Main Shaft)[05.1982 - 04.1986] AL2# LWR |
90363-30015 |
US $41.50 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[05.1982 - 04.1986] AL2# 厚さ＝１．２０,T=1.2 |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17196 Ring, Shaft Snap(For Steering Main Shaft)[05.1982 - 04.1986] AL2# 厚さ＝１．３５−１．４５,T=1.4 |
90520-17196 |
US $2.97 |
||
|
45201G
|
45201G
90501-32003 Spring, Compression(For Steering Main Shaft)[05.1982 - 04.1986] AL2# |
90501-32003 |
US $3.35 |
||
|
45202
|
45202
45202-16030 Shaft Sub-Assy, Steering Intermediate[05.1982 - 08.1984] AL2# |
45202-16030 |
US $219.86 |
||
|
45205
|
45205
45205-16031 Tube Sub-Assy, Steering Column[08.1984 - 04.1986] AL2#..GL,SR W/TILT STEERING |
45205-16031 |
US $74.26 |
||
|
45205
|
45205
45205-16040 Tube Sub-Assy, Steering Column[05.1982 - 04.1986] AL2#..CTD,DLX,GL,SR |
45205-16040 |
US $99.01 |
||
|
45209
|
45209
45209-10020 Yoke Sub-Assy, Steering Sliding[08.1984 - 04.1986] AL2# |
45209-10020 |
from US $121.36 |
||
|
45209
|
45209
45209-16010 Yoke Sub-Assy, Steering Sliding[08.1984 - 04.1986] AL2#..DLX,GL,SR W/POWER STEERING |
45209-16010 |
US $137.64 |
||
|
45214
|
45214
45214-10010
Retainer, Main Shaft Spring
[05.1982 - 04.1986] AL2# |
45214-10010 |
— | ||
|
45253
|
45253
45025-16030 Cover, Steering Column Hole[05.1982 - 08.1984] AL2# |
45025-16030 |
US $46.88 |
||
| replacement | |||||
|
45253
|
45253
45025-16050 Cover, Steering Column Hole[05.1982 - 08.1984] AL2# |
45025-16050 |
US $42.81 |
||
|
45253
|
45253
45025-16050 Cover, Steering Column Hole[08.1984 - 04.1986] AL2# |
45025-16050 |
US $42.81 |
||
|
45254
|
45254
45254-16020 Shield, Steering Column Hole[05.1982 - 04.1986] AL2# |
45254-16020 |
US $8.01 |
||
|
45269
|
45269
45269-35010 Retainer, Main Shaft Bearing[05.1982 - 04.1986] AL2# |
45269-35010 |
US $6.41 |
||
|
45281
|
45281
45286-16020-02
Housing, Steering Column
[05.1982 - 08.1984] AL2#..DLX,GL,SR UPR,DARK WINE,RED/MAROON,TRIM3# |
45286-16020-02 |
— | ||
|
45281
|
45281
45286-16020-03
Housing, Steering Column
[05.1982 - 08.1984] AL2#..DLX,GL,SR UPR,GRAY,GRAY,TRIM1# |
45286-16020-03 |
— | ||
|
45281
|
45281
45286-16020-06
Housing, Steering Column
[05.1982 - 08.1984] AL2#..CTD,DLX,GL,SR UPR,BROWN,BROWN,TRIM4# |
45286-16020-06 |
— | ||
|
45281
|
45281
45286-16020-13
Housing, Steering Column
[08.1984 - 04.1986] AL2# UPR,GRAY,GRAY,TRIM1# |
45286-16020-13 |
— | ||
|
45281
|
45281
45286-16030-13
Housing, Steering Column
[08.1984 - 04.1986] AL2#..GL,SR UPR,W/TILT STEERING,GRAY,GRAY,TRIM1# |
45286-16030-13 |
— | ||
|
45281
|
45281
45287-16010-02
Housing, Steering Column
[05.1982 - 08.1984] AL2#..DLX,GL,SR LWR,DARK WINE,RED/MAROON,TRIM3# |
45287-16010-02 |
— | ||
|
45281
|
45281
45287-16010-03
Housing, Steering Column
[05.1982 - 08.1984] AL2#..DLX,GL,SR LWR,GRAY,GRAY,TRIM1# |
45287-16010-03 |
— | ||
|
45281
|
45281
45287-16010-06
Housing, Steering Column
[05.1982 - 08.1984] AL2#..CTD,DLX,GL,SR LWR,BROWN,BROWN,TRIM4# |
45287-16010-06 |
— | ||
|
45281
|
45281
45287-16010-13
Housing, Steering Column
[08.1984 - 04.1986] AL2# LWR,GRAY,GRAY,TRIM1# |
45287-16010-13 |
— | ||
|
45281
|
45281
45287-16020-13
Housing, Steering Column
[08.1984 - 04.1986] AL2#..GL,SR LWR,W/TILT STEERING,GRAY,GRAY,TRIM1# |
45287-16020-13 |
— | ||
|
45281E
|
45281E
45283-12010 Plate, Safety Caution[05.1982 - 04.1986] AL2# |
45283-12010 |
US $3.06 |
||
|
45292
|
45292
45292-10010 Seal, Main Shaft Lower Dust[05.1982 - 08.1984] AL2# |
45292-10010 |
US $12.23 |
||
|
45877
|
45877
45877-12010 Wedge, Caster(For Steering Column Tube Setting)[05.1982 - 04.1986] AL2# |
45877-12010 |
US $4.37 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[05.1982 - 04.1986] AL2#..CTD,DLX,GL,SR |
45897-12020 |
from US $3.36 |
||
|
9010108070
|
9010108070
90101-08070
Bolt, Hexagon
|
90101-08070 |
— | ||
| replacement | |||||
|
9010108070
|
9010108070
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
|
9011910277
|
9011910277
90119-10277 New Genuine Part |
90119-10277 |
US $3.64 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9052101001
|
9052101001
90521-01001 New Genuine Part |
90521-01001 |
US $3.49 |
||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.29 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.88 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
|
9615200300
|
9615200300
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft) |
96152-00300 |
US $0.70 |
||
