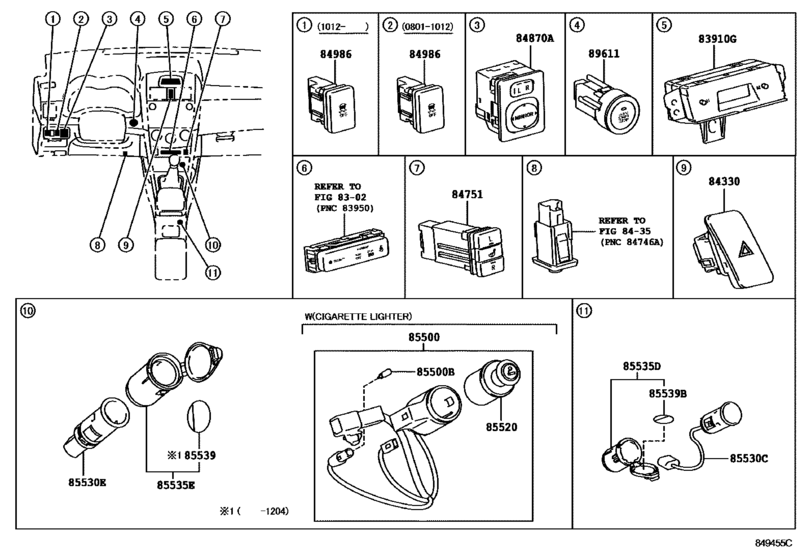

Switch & Relay & Computer ([01.2008 - ] INSTRUMENT PANEL (0801- )NAP) Diagram Toyota COROLLA
- Year
- 2008 - 2012
- Sales region
- U.S.A.
- Frame
- AZE141
- grade
- XRS
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- CND
- Model
- COROLLA (NAP/SED/LB)
- From
- 01.2008
- To
- 08.2012
- Gear Shift Type
- 5FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-02140
Clock Assy
[12.2011 - 08.2013] AZE141,ZRE142..NAP |
83910-02140 |
— | ||
|
84330
|
84330
84332-02170
Switch Assy, Hazard Warning Signal
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
84332-02170 |
— | ||
|
84751
|
84751
84751-02040
Switch, Seat Heater
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS) LEATHER PACKAGE |
84751-02040 |
— | ||
|
84870A
|
84870A
84870-08010
Switch Assy, Outer Mirror
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
84870-08010 |
— | ||
|
84986
|
84986
84986-02040
Switch, Vehicle Stability Control
[01.2008 - 12.2010] AZE141..NAP; AZE141..NAP..USA MEXICO SPEC |
84986-02040 |
— | ||
| replacement | |||||
|
84986
|
84986
84986-02041
Switch, Vehicle Stability Control
[01.2008 - 12.2010] AZE141..NAP; AZE141..NAP..USA MEXICO SPEC |
84986-02041 |
— | ||
|
85500
|
85500
85500-12260 Lighter Assy, Cigarette[01.2008 - 12.2010] AZE141,ZRE142..NAP ASH TRAY-WITH(FR1) |
85500-12260 |
from US $50.17 |
||
|
85500B
|
85500B
90010-01163 Bulb, Cigarette Lighter[01.2008 - 12.2010] AZE141,ZRE142..NAP 12V 1.2W,W(CAP),ASH TRAY-WITH(FR1) |
90010-01163 |
US $5.82 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[01.2008 - 12.2010] AZE141,ZRE142..NAP ASH TRAY-WITH(FR1) |
85520-28010 |
from US $17.90 |
||
|
85530C
|
85530C
85530-02020
Socket Assy, Power Outlet, Center
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
85530-02020 |
— | ||
|
85530E
|
85530E
85530-06030
Socket Assy, Power Outlet, No.1
[01.2008 - 12.2010] AZE141,ZRE142..NAP |
85530-06030 |
— | ||
|
85535D
|
85535D
85535-0C010-B1
Cover, Power Outlet Socket, No.1
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS) DK.GRAY,TRIM1# |
85535-0C010-B1 |
— | ||
|
85535E
|
85535E
85535-0C040-C0
Cover, Power Outlet Socket, No.1
[01.2008 - 12.2010] AZE141,ZRE142..NAP BLACK |
85535-0C040-C0 |
— | ||
|
85535E
|
85535E
85535-0E060-C0
Cover, Power Outlet Socket, No.1
[04.2012 - 08.2013] AZE141,ZRE142..NAP BLACK |
85535-0E060-C0 |
— | ||
|
85539
|
85539
85539-60020 Label, Power Outlet Notice[01.2008 - 12.2010] AZE141,ZRE142..NAP |
85539-60020 |
US $1.41 |
||
|
85539B
|
85539B
85539-60020 Label, Power Outlet Notice[01.2008 - 12.2010] AZE141,ZRE142..NAP |
85539-60020 |
US $1.41 |
||
