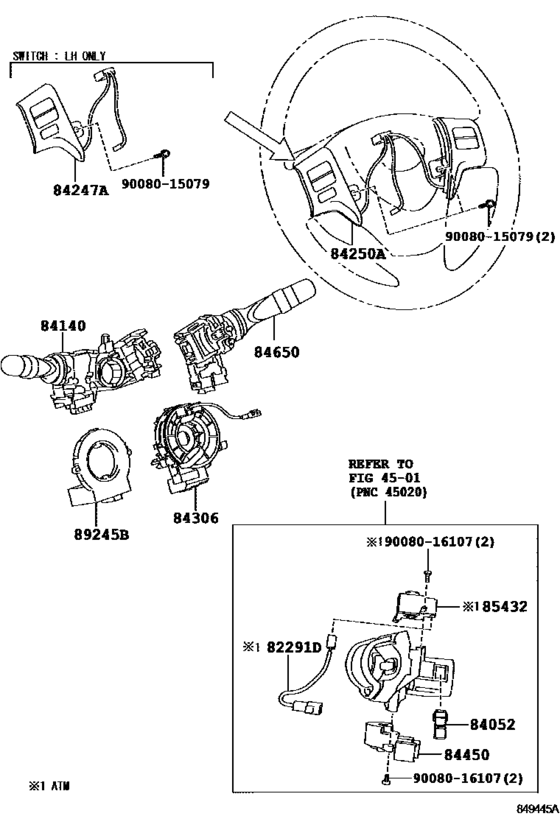

Switch & Relay & Computer ([01.2008 - ] IGNITION & COMBINATION SWITCH (0801- )NAP) Diagram Toyota COROLLA
- Year
- 2008 - 2012
- Sales region
- U.S.A.
- Frame
- AZE141
- grade
- XRS
- ENGINE
- 2AZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- DESTINATION
- CND
- Model
- COROLLA (NAP/SED/LB)
- From
- 01.2008
- To
- 08.2012
- Gear Shift Type
- 5FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82291D
|
82291D
82291-02020
Wire, To Solenoid
[01.2008 - 12.2010] AZE141,ZRE142..NAP..ATM; ZRE142..NAP..LE STARTING SYSTEM-PUSH(W/SMART) |
82291-02020 |
— | ||
|
84052
|
84052
84052-71010 Switch Assy, Un-Lock Warning[01.2008 - 12.2010] AZE141,ZRE142..NAP; ZRE142..NAP..LE STARTING SYSTEM-PUSH(W/SMART) |
84052-71010 |
US $25.68 |
||
|
84140
|
84140
84140-02670 Switch Assy, Headlamp DimmerHEADLAMP DIMMER [01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS); ZRE142..NAP..LE FRONT FOG LAMP-WITH |
84140-02670 |
US $94.64 |
||
|
84247A
|
84247A
84247-02040
Switch, Steering Pad, Lh
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS) |
84247-02040 |
— | ||
|
84247A
|
84247A
84247-02060
Switch, Steering Pad, Lh
[12.2011 -] AZE141..NAP;ZRE142..NAP..S..CND |
84247-02060 |
— | ||
|
84250A
|
84250A
84250-02110
Switch Assy, Steering Pad
[01.2008 - 12.2010] ZRE142..NAP..LE;ZRE142..NAP..S..USA CRUISE CONTROL-WITH(ELECTRIC TYPE)&AUDIO-JBL-AM/FM CD CHANGER 8SPEAKER BLUETOOTH; ZRE142..NAP..S..USA;AZE141,ZRE142..NAP..(LE,XRS) AUDIO-JBL-AM/FM CD CHANGER 8SPEAKER BLUETOOTH |
84250-02110 |
— | ||
|
84250A
|
84250A
84250-02210
Switch Assy, Steering Pad
[12.2010 - 12.2011] AZE141..NAP;ZRE142..NAP..S..CND; ZRE142..NAP..S..USA CRUISE CONTROL-WITH(ELECTRIC TYPE)&STEERING WHEEL-3-SP,LEATHER,WITH(AUDIO&HFSW); ZRE142..NAP..S..USA CRUISE CONTROL-WITH(ELECTRIC TYPE)&STEERING WHEEL-3-SP,URETANE,WITH(AUDIO&HFSW) |
84250-02210 |
— | ||
|
84306
|
84306
84306-0E010
Cable Sub-Assy, Spiral
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS); ZRE142..NAP..LE AUDIO-JBL-AM/FM CD CHANGER 8SPEAKER BLUETOOTH |
84306-0E010 |
— | ||
| replacement | |||||
|
84306
|
84306
84306-48030
Cable Sub-Assy, Spiral
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(S,XRS); ZRE142..NAP..LE AUDIO-JBL-AM/FM CD CHANGER 8SPEAKER BLUETOOTH |
84306-48030 |
— | ||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[01.2008 - 12.2010] AZE141,ZRE142..NAP; ZRE142..NAP..LE STARTING SYSTEM-PUSH(W/SMART) |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-02390
Switch Assy, Windshield Wiper
[01.2008 - 12.2010] AZE141,ZRE142..NAP..(CE,S,STD,XRS) |
84652-02390 |
— | ||
|
84650
|
84650
84652-02610 Switch Assy, Windshield WiperWINDSHIELD WIPER [01.2008 - 12.2010] ZRE142..NAP..LE; AZE141,ZRE142..NAP..(S,XRS) INTERMITTENT WIPER-WITH(TIME ADJUSTMENT) |
84652-02610 |
US $97.55 |
||
|
85432
|
85432
85432-71010 Solenoid, Key Inter Lock[01.2008 - 12.2010] AZE141,ZRE142..NAP..ATM; ZRE142..NAP..LE STARTING SYSTEM-PUSH(W/SMART) |
85432-71010 |
US $40.33 |
||
|
89245B
|
89245B
89245-02050
Sensor, Steering
[01.2008 - 12.2010] AZE141..NAP |
89245-02050 |
— | ||
|
9008015079
|
9008015079
90080-15079 SCREW WWASHER |
90080-15079 |
US $0.73 |
||
|
9008016107
|
9008016107
90080-16107
New Genuine Part
|
90080-16107 |
— | ||
