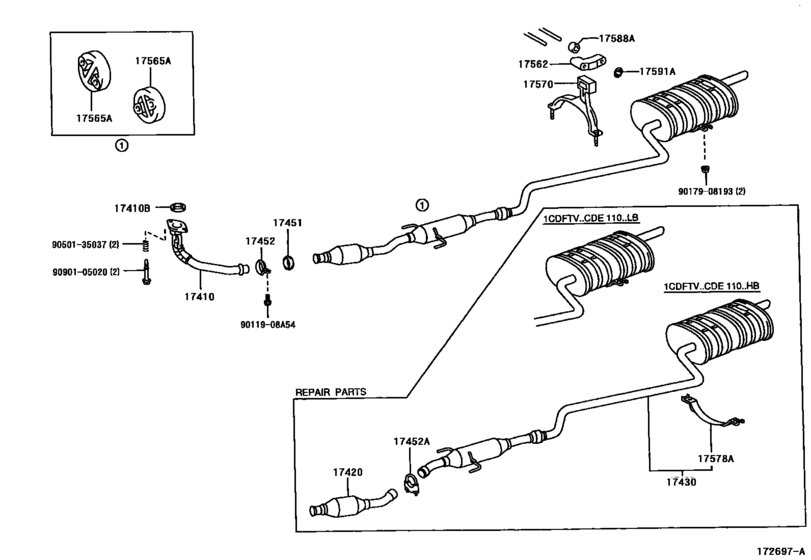

Exhaust Pipe ([08.2000 - ] (0008- )1CDFTV) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-27110 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.2000 - 09.2001] 1CDFTV..CDE110 |
17410-27110 |
US $168.90 |
||
|
17410B
|
17410B
17451-74060 Gasket, Exhaust Pipe, Center[08.2000 - 09.2001] 1CDFTV..CDE110 |
17451-74060 |
from US $20.36 |
||
|
17420
|
17420
17420-27020
Pipe Assy, Exhaust, Center
[08.2000 - 09.2001] 1CDFTV..CDE110 |
17420-27020 |
— | ||
|
17430
|
17430
17430-27110
Pipe Assy, Exhaust, Tail
[08.2000 - 07.2001] 1CDFTV..CDE110..HB |
17430-27110 |
— | ||
|
17451
|
17451
90917-06084 Gasket, Exhaust PipeEXHAUST PIPE [09.1998 - 11.2001] 1CDFTV,3ZZFE,4ZZFE..CDE110,ZZE11#;4AFE,4EFE,1WZ..AE111,EE111,WZE110..UKP |
90917-06084 |
US $5.10 |
||
|
17452
|
17452
90461-15016
Clamp, Exhaust Pipe
[09.1998 - 11.2001] 1CDFTV,3ZZFE,4ZZFE..CDE110,ZZE11#;4AFE,4EFE,1WZ..AE111,EE111,WZE110..UKP |
90461-15016 |
— | ||
|
17452A
|
17452A
17452-16160 Clamp, Exhaust PipeEXHAUST PIPE [08.2000 - 07.2001] 1CDFTV..CDE110..HB;3ZZFE..ZZE112..RHD..HB..4FC |
17452-16160 |
US $14.12 |
||
|
17562
|
17562
17562-16240 Support, Exhaust Pipe, No.2[09.1998 - 11.2001] 4AFE,4EFE..AE111,EE111..UKP;1CDFTV,1WZ,3ZZFE,4ZZFE..CDE110,WZE110,ZZE11# |
17562-16240 |
from US $18.60 |
||
|
17565A
|
17565A
17565-11160 Support, Exhaust Pipe, No.1[10.1999 - 11.2001] 1CDFTV,1WZ,3ZZFE,4ZZFE..CDE110,WZE110,ZZE11# |
17565-11160 |
from US $9.17 |
||
|
17570
|
17570
17570-16040 Bracket Assy, Exhaust Pipe Support[10.1999 - 09.2001] 1CDFTV,1WZ,3ZZFE,4ZZFE..CDE110,WZE110,ZZE11#..JPP |
17570-16040 |
US $48.57 |
||
|
17578A
|
17578A
17578-11030 Clamp, Muffler[10.1999 - 09.2001] 1CDFTV,1WZ,3ZZFE,4ZZFE..CDE110,WZE110,ZZE11#..JPP |
17578-11030 |
US $43.68 |
||
|
17588A
|
17588A
17588-16020 Spacer, Exhaust Pipe Hanger[09.1998 - 11.2001] 4AFE,4EFE..AE111,EE111..UKP;1CDFTV,1WZ,3ZZFE,4ZZFE..CDE110,WZE110,ZZE11# |
17588-16020 |
US $6.88 |
||
|
17591A
|
17591A
17591-16020 Stopper, Exhaust Pipe Support[09.1998 - 11.2001] 4AFE,4EFE..AE111,EE111..UKP;1CDFTV,1WZ,3ZZFE,4ZZFE..CDE110,WZE110,ZZE11# |
17591-16020 |
from US $0.82 |
||
|
9011908A54
|
9011908A54
90119-08A54 BOLT WWASHER |
90119-08A54 |
US $2.08 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9050135037
|
9050135037
90501-35037 Spring, Exhaust Pipe |
90501-35037 |
from US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
