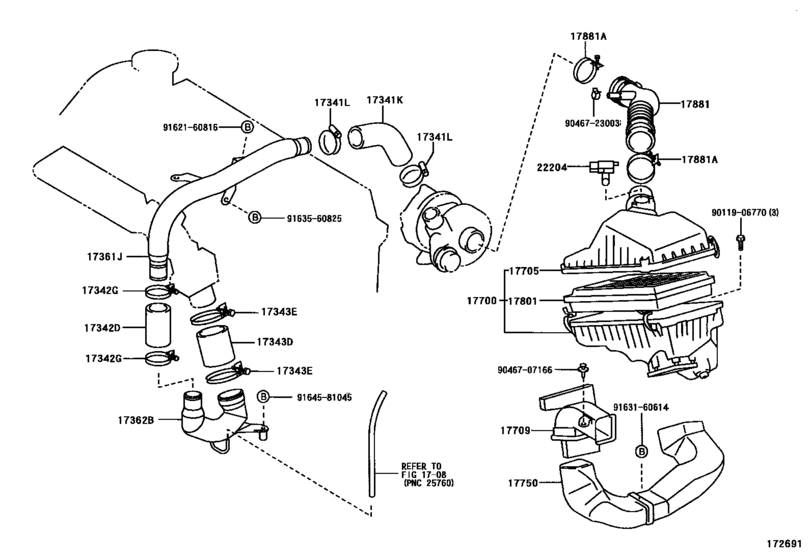

Air Cleaner ([08.2000 - ] (0008- )1CDFTV) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341K
|
17341K
17341-27020
Hose, Air, No.1(For Intercooler)
[08.2000 - 09.2001] 1CDFTV..CDE110 |
17341-27020 |
— | ||
|
17341L
|
17341L
90460-50006 Clamp, HoseHOSE [08.2000 - 09.2001] 1CDFTV..CDE110 |
90460-50006 |
US $6.70 |
||
|
17342D
|
17342D
17342-27020 Hose, Air, No.2AIR, NO.2 [08.2000 - 09.2001] 1CDFTV..CDE110 |
17342-27020 |
US $20.82 |
||
|
17342G
|
17342G
90460-50006 Clamp, HoseHOSE [08.2000 - 09.2001] 1CDFTV..CDE110 |
90460-50006 |
US $6.70 |
||
|
17343D
|
17343D
17343-27020
Hose, Air, No.3
[08.2000 - 09.2001] 1CDFTV..CDE110 |
17343-27020 |
— | ||
|
17343E
|
17343E
90460-73011 Clamp Or Clip(For Air Hose, No.1)[08.2000 - 09.2001] 1CDFTV..CDE110 |
90460-73011 |
US $7.04 |
||
|
17361J
|
17361J
17361-27040 Tube, Air, No.1AIR, NO.1 [08.2000 - 09.2001] 1CDFTV..CDE110 |
17361-27040 |
US $139.78 |
||
|
17362B
|
17362B
17362-27020 Tube, Air, No.2AIR, NO.2 [08.2000 - 09.2001] 1CDFTV..CDE110 |
17362-27020 |
US $104.83 |
||
|
17700
|
17700
17700-27150
Cleaner Assy, Air
[08.2000 - 09.2001] 1CDFTV..CDE110 |
17700-27150 |
— | ||
|
17705
|
17705
17705-27020
Cap Sub-Assy, Air Cleaner
[08.2000 - 09.2001] 1CDFTV..CDE110 |
17705-27020 |
— | ||
|
17709
|
17709
17709-64020 Inlet Sub-Assy, Air Cleaner[08.2000 - 09.2001] 1CDFTV..CDE110 |
17709-64020 |
US $90.27 |
||
|
17750
|
17750
17750-27010 Cover Assy, Air Cleaner Inlet, SealAIR CLEANER INLET, SEAL [08.2000 - 09.2001] 1CDFTV..CDE110 |
17750-27010 |
US $88.82 |
||
|
17801
|
17801
17801-64060
Element Sub-Assy, Air Cleaner Filter
[08.2000 - 09.2001] 1CDFTV..CDE110 |
17801-64060 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-64070 Element Sub-Assy, Air Cleaner Filter[08.2000 - 09.2001] 1CDFTV..CDE110 |
17801-64070 |
from US $26.73 |
||
|
17881
|
17881
17880-27020
Hose, Air Cleaner, No.1
[08.2000 - 09.2001] 1CDFTV..CDE110 |
17880-27020 |
— | ||
|
17881A
|
17881A
90460-58003 Clamp, Intake Pipe, No.1[08.2000 - 09.2001] 1CDFTV..CDE110 TURBOCHARGER SIDE |
90460-58003 |
US $12.38 |
||
|
17881A
|
17881A
90460-73001
Clamp Or Clip(For Air Hose, No.1)
[08.2000 - 09.2001] 1CDFTV..CDE110 AIR CLEANER SIDE |
90460-73001 |
— | ||
| replacement | |||||
|
17881A
|
17881A
90460-73011 Clamp Or Clip(For Air Hose, No.1)[08.2000 - 09.2001] 1CDFTV..CDE110 AIR CLEANER SIDE |
90460-73011 |
US $7.04 |
||
|
22204
|
22204
22204-27010 Meter Sub-Assy, Intake Air Flow[08.2000 - 09.2001] 1CDFTV..CDE110 |
22204-27010 |
from US $175.95 |
||
|
9011906770
|
9011906770
90119-06770 New Genuine Part |
90119-06770 |
US $1.75 |
||
| replacement | |||||
|
9011906770
|
9011906770
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.09 |
||
|
9046707166
|
9046707166
90467-07166 Clip(For Front Fender Apron Seal) |
90467-07166 |
from US $0.90 |
||
|
9046723003
|
9046723003
90467-23003
Clip(For Ventilation Hose)
|
90467-23003 |
— | ||
| replacement | |||||
|
9046723003
|
9046723003
96134-42300 Clip Or Clamp(For Ventilation Hose) |
96134-42300 |
US $1.44 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.90 |
||
|
9163160614
|
9163160614
91631-60614 BOLT |
91631-60614 |
US $1.60 |
||
| replacement | |||||
|
9163160614
|
9163160614
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9163560825
|
9163560825
91635-60825 New Genuine Part |
91635-60825 |
US $1.65 |
||
|
9164581045
|
9164581045
91645-81045 New Genuine Part |
91645-81045 |
US $3.06 |
||
| replacement | |||||
|
9164581045
|
9164581045
91642-81040 New Genuine Part |
91642-81040 |
US $3.84 |
||
