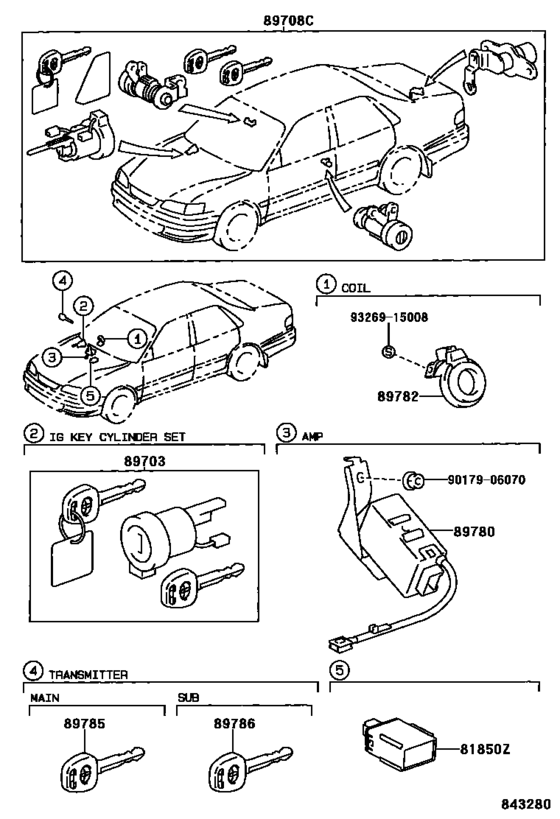

Anti-Theft Device ([01.2000 - ] (0001- )CDE110,WZE110..TERRA) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81850Z
|
81850Z
81850-12250
Lamp Assy, Theft Warning Indicator
[10.1999 - 09.2001] AE115,CDE110,WZE110,ZZE11# |
81850-12250 |
— | ||
|
89703
|
89703
89703-12140
Cylinder & Key Set, Ignition W/transponder
[10.1999 - 09.2001] ZZE112..LHD;ZZE112..RHD..TERRA;CDE110,WZE110,ZZE111..STD,TERRA |
89703-12140 |
— | ||
|
89708C
|
89708C
89708-12080
Cylinder Set, Lock W/transponder Key Transmitter
[10.1999 - 09.2001] WZE110,ZZE112..SED;CDE110,ZZE111..SED..(STD,TERRA) |
89708-12080 |
— | ||
|
89780
|
89780
89780-12120
Computer Assy, Transponder Key
[08.2000 - 07.2001] CDE110..RHD |
89780-12120 |
— | ||
|
89782
|
89782
89782-44010
Coil, Transponder Key
[10.1999 - 09.2001] AE115,CDE110,WZE110,ZZE11# |
89782-44010 |
— | ||
|
89785
|
89785
89785-26020 Transmitter, Transponder Key MasterЧИП [10.1999 - 09.2001] ZZE112..LHD;ZZE112..RHD..TERRA;CDE110,WZE110,ZZE111..STD,TERRA |
89785-26020 |
from US $45.90 |
||
|
89786
|
89786
89786-60050 Transmitter, Transponder Key Sub[10.1999 - 09.2001] CDE110,WZE110,ZZE11#..SED |
89786-60050 |
from US $41.54 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9326915008
|
9326915008
93269-15008 New Genuine Part |
93269-15008 |
US $0.96 |
||
