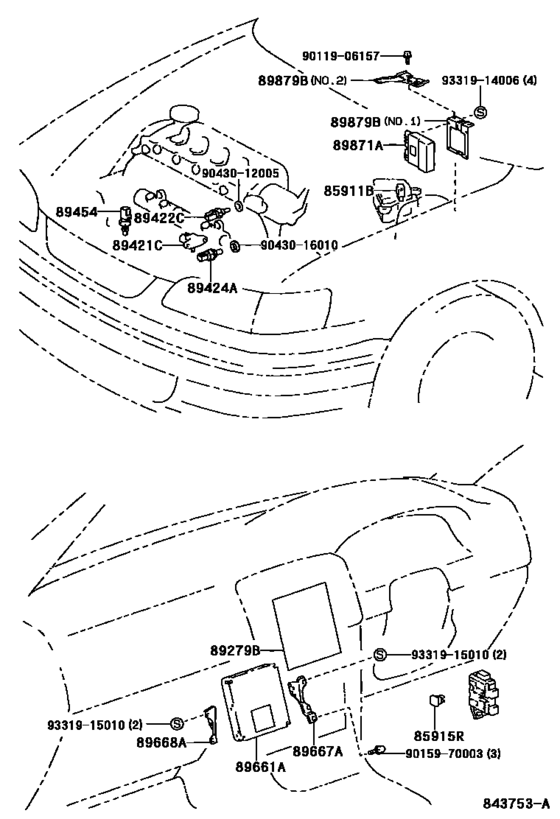

Electronic Controled Diesel (Ecd) ([08.2000 - ] (0008- )CDE110) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85911B
|
85911B
90080-87013
Relay, Fog Lamp
[08.2000 - 09.2001] CDE110 BOSCH |
90080-87013 |
— | ||
| replacement | |||||
|
85911B
|
85911B
90080-87021
Relay, Lamp Cut
[08.2000 - 09.2001] CDE110 BOSCH |
90080-87021 |
— | ||
|
85911B
|
85911B
90987-02012 Relay, Ignition, No.1[08.2000 - 09.2001] CDE110 DENSO |
90987-02012 |
from US $27.11 |
||
|
85915R
|
85915R
90080-87013
Relay, Fog Lamp
[08.2000 - 09.2001] CDE110 BOSCH |
90080-87013 |
— | ||
| replacement | |||||
|
85915R
|
85915R
90080-87021
Relay, Lamp Cut
[08.2000 - 09.2001] CDE110 BOSCH |
90080-87021 |
— | ||
|
85915R
|
85915R
90987-02012 Relay, Ignition, No.1[08.2000 - 09.2001] CDE110 DENSO |
90987-02012 |
from US $27.11 |
||
|
89279B
|
89279B
89279-13020 Cover, Engine Control Computer[08.2000 - 09.2001] CDE110 |
89279-13020 |
US $24.75 |
||
|
89421C
|
89421C
89421-20210 Sensor, Turbo Pressure (For Diesel Turbo)[08.2000 - 09.2001] CDE110 |
89421-20210 |
from US $139.12 |
||
|
89422C
|
89422C
89422-16010 Sensor, Water Temperature (For E.f.i.)[08.2000 - 09.2001] CDE110 DENSO |
89422-16010 |
from US $36.63 |
||
|
89422C
|
89422C
89422-22030 Sensor, Water Temperature (For E.f.i.)[08.2000 - 09.2001] CDE110 SAAMOSTA |
89422-22030 |
from US $52.51 |
||
|
89424A
|
89424A
89424-60010 Sensor, Inlet Air Temperature (For Diesel Turbo)[08.2000 - 09.2001] CDE110 |
89424-60010 |
from US $66.12 |
||
|
89454
|
89454
89454-60010 Sensor, Fuel Temperature[08.2000 - 07.2001] CDE110..RHD |
89454-60010 |
from US $36.78 |
||
|
89661A
|
89661A
89666-12320
Computer, Engine Control
[08.2000 - 09.2001] CDE110 |
89666-12320 |
— | ||
|
89667A
|
89667A
89667-12130 Bracket, Engine Control Computer[08.2000 - 09.2001] CDE110 |
89667-12130 |
US $9.61 |
||
|
89668A
|
89668A
89668-12060 Bracket, Engine Control Computer, No.2[08.2000 - 09.2001] CDE110 |
89668-12060 |
US $6.84 |
||
|
89871A
|
89871A
89871-20030 Driver, InjectorINJECTOR [08.2000 - 09.2001] CDE110 |
89871-20030 |
from US $779.25 |
||
|
89879B
|
89879B
89879-12020 Bracket, Injector DriverINJECTOR DRIVER [08.2000 - 07.2001] CDE110..RHD NO.1 |
89879-12020 |
US $21.69 |
||
|
89879B
|
89879B
89879-12040 Bracket, Injector DriverINJECTOR DRIVER [08.2000 - 07.2001] CDE110..RHD NO.2 |
89879-12040 |
US $13.40 |
||
|
9011906157
|
9011906157
90119-06157 Bolt |
90119-06157 |
US $2.33 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9043016010
|
9043016010
90430-16010 Gasket, Neutral Start Switch |
90430-16010 |
from US $1.01 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
