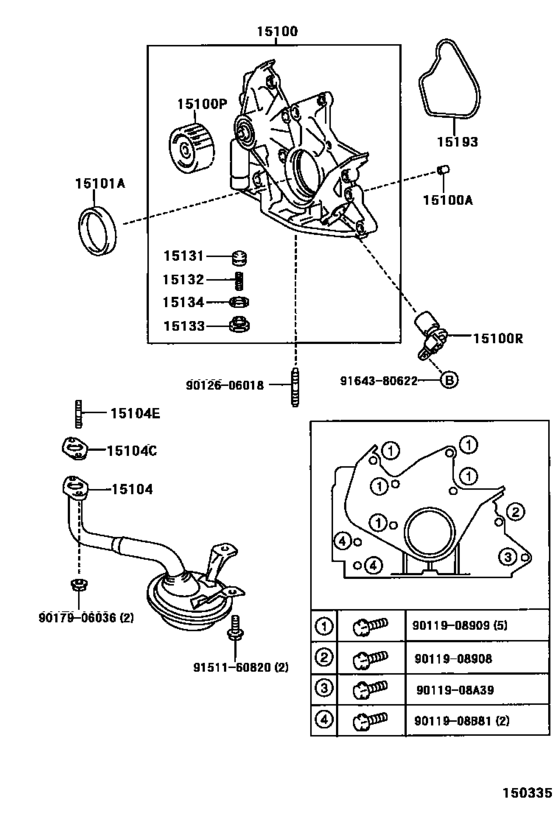

Engine Oil Pump ([08.2000 - ] (0008- )1CDFTV) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-27010 Pump Assy, OilOIL [08.2000 - 09.2001] 1CDFTV..CDE110 |
15100-27010 |
US $182.62 |
||
|
15100A
|
15100A
90253-11021 Pin, Ring[08.2000 - 09.2001] 1CDFTV..CDE110 |
90253-11021 |
from US $1.50 |
||
|
15100P
|
15100P
13524-64020 Pulley, Oil Pump Drive Shaft[08.2000 - 09.2001] 1CDFTV..CDE110 |
13524-64020 |
US $19.04 |
||
|
15100R
|
15100R
90919-05042 Sensor, Crank PositionCRANK POSITION [08.2000 - 09.2001] 1CDFTV..CDE110 |
90919-05042 |
US $82.99 |
||
|
15101A
|
15101A
90311-45017 Seal(For Crankshaft)[08.2000 - 09.2001] 1CDFTV..CDE110 |
90311-45017 |
US $8.32 |
||
|
15104
|
15104
15104-27010 Strainer Sub-Assy, OilOIL [08.2000 - 02.2001] 1CDFTV..CDE110 |
15104-27010 |
US $81.54 |
||
| replacement | |||||
|
15104
|
15104
15104-27040 Strainer Sub-Assy, OilOIL [08.2000 - 02.2001] 1CDFTV..CDE110 |
15104-27040 |
US $81.54 |
||
|
15104
|
15104
15104-27040 Strainer Sub-Assy, OilOIL [02.2001 - 09.2001] 1CDFTV..CDE110 |
15104-27040 |
US $81.54 |
||
|
15104C
|
15104C
15149-64070 Gasket(For Oil Strainer)[08.2000 - 09.2001] 1CDFTV..CDE110 |
15149-64070 |
US $3.52 |
||
|
15104E
|
15104E
90116-06132 Bolt, Stud(For Oil Strainer)[08.2000 - 09.2001] 1CDFTV..CDE110 |
90116-06132 |
US $1.05 |
||
|
15131
|
15131
15131-64041 Valve, Oil Pump Relief[08.2000 - 09.2001] 1CDFTV..CDE110 |
15131-64041 |
US $5.39 |
||
|
15132
|
15132
15132-17010 Spring, Oil Pump Relief Valve[08.2000 - 09.2001] 1CDFTV..CDE110 |
15132-17010 |
from US $1.27 |
||
|
15133
|
15133
15133-64041 Plug, Oil Pump Relief Valve[08.2000 - 09.2001] 1CDFTV..CDE110 |
15133-64041 |
US $3.93 |
||
|
15134
|
15134
15134-67020 Gasket, Oil Pump Relief Valve[08.2000 - 09.2001] 1CDFTV..CDE110 |
15134-67020 |
from US $3.84 |
||
|
15193
|
15193
15193-64022 Gasket, Oil Pump[08.2000 - 09.2001] 1CDFTV..CDE110 |
15193-64022 |
from US $3.72 |
||
|
9011908A39
|
9011908A39
90119-08A39 BOLT WWASHER |
90119-08A39 |
US $1.28 |
||
|
9011908B81
|
9011908B81
90119-08B81 New Genuine Part |
90119-08B81 |
US $1.49 |
||
|
9011908908
|
9011908908
90119-08908 BOLT WWASHER |
90119-08908 |
US $1.22 |
||
|
9011908909
|
9011908909
90119-08909 New Genuine Part |
90119-08909 |
US $1.22 |
||
|
9012606018
|
9012606018
90126-06018 Bolt, Stud(For Engine Rear Oil Seal Retainer) |
90126-06018 |
US $0.87 |
||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9164380622
|
9164380622
91643-80622 New Genuine Part |
91643-80622 |
US $1.46 |
||
