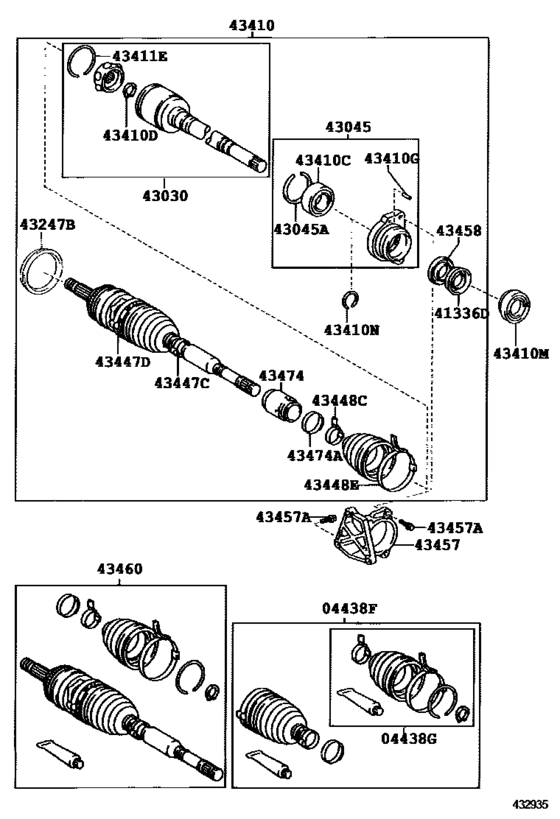

Front Drive Shaft ([08.2000 - ] RH (0008- )CDE110) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-12520 Boot Kit, Front Drive Shaft, In & Outboard, RhFRONT DRIVE SHAFT, IN & OUTBOARD, RH [08.2000 - 09.2001] CDE110 |
04438-12520 |
US $100.46 |
||
|
04438G
|
04438G
04438-12510 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2000 - 09.2001] CDE110 |
04438-12510 |
US $88.82 |
||
|
41336D
|
41336D
41336-12020 Cover, Dust(For Front Drive Shaft)[08.2000 - 09.2001] CDE110 |
41336-12020 |
from US $3.71 |
||
|
43030
|
43030
43030-12100 Joint Assy, Front Drive Inboard, RhFRONT DRIVE INBOARD, RH [08.2000 - 09.2001] CDE110 |
43030-12100 |
US $546 |
||
|
43045
|
43045
43045-20050
Case Sub Assy, Drive Shaft Bearing
[08.2000 - 09.2001] CDE110 |
43045-20050 |
— | ||
| replacement | |||||
|
43045
|
43045
43045-64020 Case Sub Assy, Drive Shaft Bearing[08.2000 - 09.2001] CDE110 |
43045-64020 |
from US $54.60 |
||
|
43045A
|
43045A
90520-69002 Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)[08.2000 - 09.2001] CDE110 |
90520-69002 |
US $0.79 |
||
|
43247B
|
43247B
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[08.2000 - 09.2001] CDE110 |
43247-12010 |
from US $10.88 |
||
|
43410
|
43410
43410-12570 Shaft Assy, Front Drive, RhFRONT DRIVE, RH [08.2000 - 09.2001] CDE110 |
43410-12570 |
US $1,113.84 |
||
|
43410C
|
43410C
90363-41002 Bearing (For Front Drive Shaft)[08.2000 - 09.2001] CDE110 |
90363-41002 |
US $40.04 |
||
| replacement | |||||
|
43410C
|
43410C
90363-41003 Bearing (For Front Drive Shaft)[08.2000 - 09.2001] CDE110 |
90363-41003 |
from US $26.38 |
||
|
43410D
|
43410D
90520-23056 Ring, Shaft Snap (For Power Take-Off Idler Shaft)[08.2000 - 09.2001] CDE110 |
90520-23056 |
US $2.18 |
||
|
43410G
|
43410G
90250-06003 Pin, Straight[01.2000 - 09.2001] CDE110,WZE110 |
90250-06003 |
US $1.44 |
||
|
43410M
|
43410M
90311-40025 Oil Seal, Front Drive Shaft, Rh[08.2000 - 09.2001] CDE110 |
90311-40025 |
US $4.51 |
||
| replacement | |||||
|
43410M
|
43410M
90311-40036 Seal, Oil, No.2(For Transaxle Case)[08.2000 - 09.2001] CDE110 |
90311-40036 |
from US $4.96 |
||
|
43410N
|
43410N
90520-38015 Ring, Shaft Snap(For Rear Drive Shaft)[08.2000 - 09.2001] CDE110 |
90520-38015 |
from US $1.60 |
||
|
43411E
|
43411E
90520-71002
Ring, Hole Snap (For Front Drive Inboard Joint Rh)
[08.2000 - 09.2001] CDE110 |
90520-71002 |
— | ||
|
43447C
|
43447C
90949-01A65 Clamp (For Front Axle Outboard Joint Boot Rh)[08.2000 - 09.2001] CDE110 ID=34.1 |
90949-01A65 |
US $3.20 |
||
|
43447D
|
43447D
42345-20130 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.2000 - 09.2001] CDE110 ID=94.3 |
42345-20130 |
US $9.32 |
||
|
43448C
|
43448C
90949-01108 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2001] CDE110 |
90949-01108 |
US $3.32 |
||
|
43448E
|
43448E
42346-22010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2001] CDE110 |
42346-22010 |
US $9.43 |
||
|
43457
|
43457
43457-20070 Bracket, Drive Shaft BearingDRIVE SHAFT BEARING [08.2000 - 09.2001] CDE110 |
43457-20070 |
US $82.99 |
||
|
43457A
|
43457A
90105-10285
Bolt (For Drive Shaft Bearing Bracket Setting No.1)
[08.2000 - 09.2001] CDE110 *10-1.25PX22-19.5 |
90105-10285 |
— | ||
| replacement | |||||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[08.2000 - 09.2001] CDE110 *10-1.25PX22-19.5 |
90105-10361 |
from US $1.01 |
||
|
43458
|
43458
43458-12010 Cover, Front Drive Shaft Dust[08.2000 - 09.2001] CDE110 |
43458-12010 |
from US $8 |
||
|
43460
|
43460
43460-19815 Shaft Assy, Front Drive Outboard Joint, RhFRONT DRIVE OUTBOARD JOINT, RH [08.2000 - 09.2001] CDE110 |
43460-19815 |
US $639.18 |
||
| replacement | |||||
|
43460
|
43460
43460-19816
Shaft Assy, Front Drive Outboard Joint, Rh
[08.2000 - 09.2001] CDE110 |
43460-19816 |
— | ||
|
43474
|
43474
43474-12110 Damper, Drive ShaftDRIVE SHAFT [08.2000 - 09.2001] CDE110 |
43474-12110 |
US $48.63 |
||
|
43474A
|
43474A
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2001] CDE110 |
90949-01078 |
US $0.61 |
||
