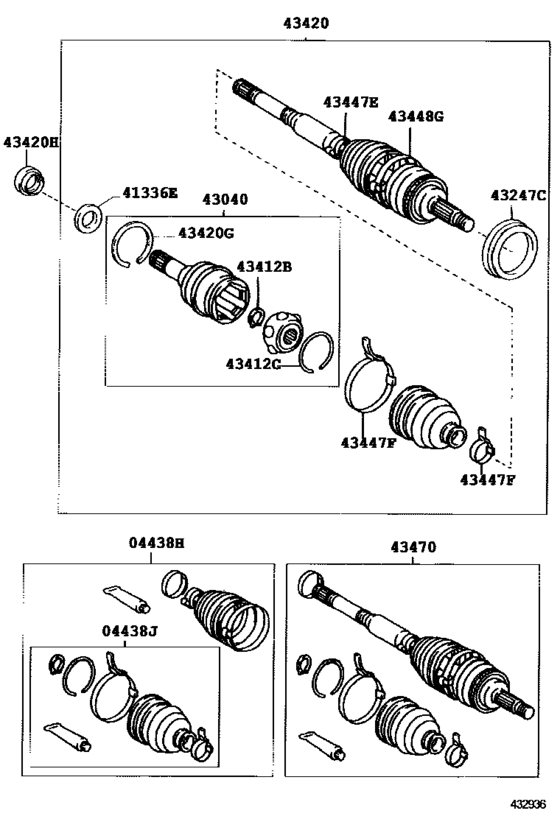

Front Drive Shaft ([08.2000 - ] LH (0008- )CDE110) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-12520 Boot Kit, Front Drive Shaft, In & Outboard, RhFRONT DRIVE SHAFT, IN & OUTBOARD, RH [08.2000 - 09.2001] CDE110 |
04438-12520 |
US $100.46 |
||
|
04438J
|
04438J
04438-12510 Boot Kit, Front Drive Shaft Inboard Joint, Rh[08.2000 - 09.2001] CDE110 |
04438-12510 |
US $88.82 |
||
|
41336E
|
41336E
41336-28020 Cover, Front Drive Shaft Dust, Lh[08.2000 - 09.2001] CDE110 |
41336-28020 |
US $4.48 |
||
|
43040
|
43040
43040-12080 Joint Assy, Front Drive Inboard, LhFRONT DRIVE INBOARD, LH [08.2000 - 09.2001] CDE110 |
43040-12080 |
US $381.47 |
||
|
43247C
|
43247C
43247-12010 Deflector, Rear Wheel Bearing Dust, No.1[08.2000 - 09.2001] CDE110 |
43247-12010 |
from US $10.88 |
||
|
43412B
|
43412B
90520-23056 Ring, Shaft Snap (For Power Take-Off Idler Shaft)[08.2000 - 09.2001] CDE110 |
90520-23056 |
US $2.18 |
||
|
43412C
|
43412C
90520-71002
Ring, Hole Snap (For Front Drive Inboard Joint Rh)
[08.2000 - 09.2001] CDE110 |
90520-71002 |
— | ||
|
43420
|
43420
43420-12500 Shaft Assy, Front Drive, LhFRONT DRIVE, LH [08.2000 - 09.2001] CDE110 |
43420-12500 |
US $962.42 |
||
|
43420G
|
43420G
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[08.2000 - 09.2001] CDE110 |
90521-33002 |
from US $1.60 |
||
|
43420H
|
43420H
90311-50024 Oil Seal, Front Drive Shaft, Lh[08.2000 - 09.2001] CDE110 |
90311-50024 |
US $12.73 |
||
| replacement | |||||
|
43420H
|
43420H
90311-50047 Seal, Oil(For Transmission Case)[08.2000 - 09.2001] CDE110 |
90311-50047 |
from US $8.32 |
||
|
43447E
|
43447E
90949-01A65 Clamp (For Front Axle Outboard Joint Boot Rh)[08.2000 - 09.2001] CDE110 ID=34.1 |
90949-01A65 |
US $3.20 |
||
|
43447F
|
43447F
42345-20130 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.2000 - 09.2001] CDE110 ID=94.3 |
42345-20130 |
US $9.32 |
||
|
43447F
|
43447F
90949-01108 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2001] CDE110 ID=33.6 |
90949-01108 |
US $3.32 |
||
|
43448G
|
43448G
42346-22010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[08.2000 - 09.2001] CDE110 |
42346-22010 |
US $9.43 |
||
|
43470
|
43470
43470-80005 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [08.2000 - 09.2001] CDE110 |
43470-80005 |
US $618.80 |
||
| replacement | |||||
|
43470
|
43470
43470-80398
Shaft Assy, Front Drive Outboard Joint, Lh
[08.2000 - 09.2001] CDE110 |
43470-80398 |
— | ||
