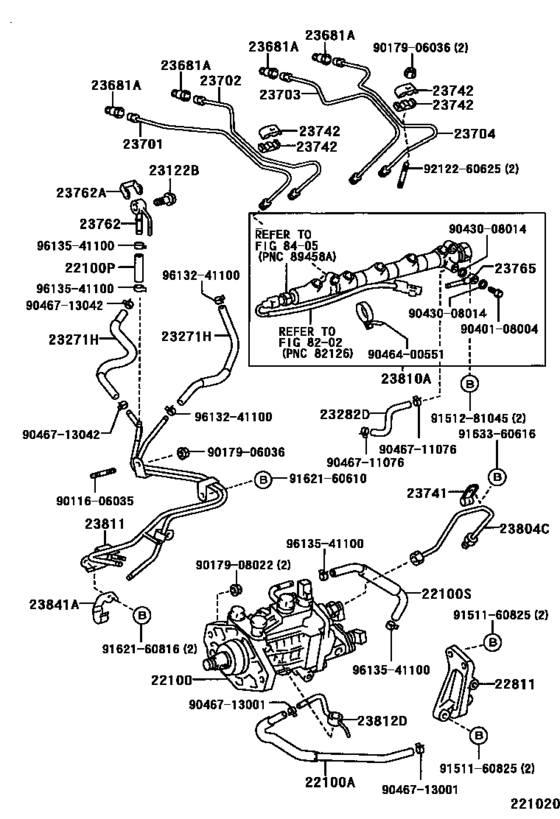

Injection Pump Assembly ([08.2000 - ] (0008- )1CDFTV) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-27010 Pump Assy, Injection Or SupplyINJECTION OR SUPPLY [08.2000 - 09.2001] 1CDFTV..CDE110 |
22100-27010 |
US $4,338.88 |
||
|
22100A
|
22100A
23273-27010
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23273-27010 |
— | ||
|
22100P
|
22100P
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.2000 - 09.2001] 1CDFTV..CDE110 |
95333-06020 |
— | ||
| replacement | |||||
|
22100P
|
22100P
95337-06020 Hose, Differential Pressure Control[08.2000 - 09.2001] 1CDFTV..CDE110 |
95337-06020 |
from US $9.12 |
||
|
22100S
|
22100S
23274-27010
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23274-27010 |
— | ||
|
22811
|
22811
22811-27010 Stay, Injection Pump, No.1INJECTION PUMP, NO.1 [08.2000 - 09.2001] 1CDFTV..CDE110 |
22811-27010 |
US $19.95 |
||
|
23122B
|
23122B
23122-27010
Valve, Check
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23122-27010 |
— | ||
| replacement | |||||
|
23122B
|
23122B
23769-30010 Valve, Check[08.2000 - 09.2001] 1CDFTV..CDE110 |
23769-30010 |
US $31.27 |
||
|
23271H
|
23271H
23271-27030 Hose, Fuel, No.1FUEL, NO.1 [08.2000 - 09.2001] 1CDFTV..CDE110 NO.1 |
23271-27030 |
US $13.69 |
||
|
23271H
|
23271H
23271-27040 Hose, Fuel, No.1FUEL, NO.1 [08.2000 - 09.2001] 1CDFTV..CDE110 NO.2 |
23271-27040 |
US $13.69 |
||
|
23282D
|
23282D
90445-11152 Hose, Fuel, No.4FUEL, NO.4 [05.2001 - 09.2001] 1CDFTV..CDE110 |
90445-11152 |
US $4.80 |
||
|
23282D
|
23282D
95333-04020 Hose, Lpg Injector[08.2000 - 05.2001] 1CDFTV..CDE110 |
95333-04020 |
from US $4.84 |
||
|
23681A
|
23681A
23681-17010 Seal, Nozzle Holder[08.2000 - 09.2001] 1CDFTV..CDE110 |
23681-17010 |
from US $7.53 |
||
|
23701
|
23701
23701-27010
Pipe Sub-Assy, Injection, No.1
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23701-27010 |
— | ||
| replacement | |||||
|
23701
|
23701
23701-27011 Pipe Sub-Assy, Injection, No.1INJECTION, NO.1 [08.2000 - 09.2001] 1CDFTV..CDE110 |
23701-27011 |
US $34.80 |
||
|
23702
|
23702
23702-27010
Pipe Sub-Assy, Injection, No.2
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23702-27010 |
— | ||
| replacement | |||||
|
23702
|
23702
23702-27011 Pipe Sub-Assy, Injection, No.2INJECTION, NO.2 [08.2000 - 09.2001] 1CDFTV..CDE110 |
23702-27011 |
US $37.13 |
||
|
23703
|
23703
23703-27010
Pipe Sub-Assy, Injection, No.3
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23703-27010 |
— | ||
| replacement | |||||
|
23703
|
23703
23703-27011 Pipe Sub-Assy, Injection, No.3INJECTION, NO.3 [08.2000 - 09.2001] 1CDFTV..CDE110 |
23703-27011 |
US $37.13 |
||
|
23704
|
23704
23704-27010
Pipe Sub-Assy, Injection, No.4
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23704-27010 |
— | ||
| replacement | |||||
|
23704
|
23704
23704-27011 Pipe Sub-Assy, Injection, No.4INJECTION, NO.4 [08.2000 - 09.2001] 1CDFTV..CDE110 |
23704-27011 |
US $37.13 |
||
|
23741
|
23741
23741-27010 Clamp, Injection Pipe, No.1INJECTION PIPE, NO.1 [08.2000 - 09.2001] 1CDFTV..CDE110 |
23741-27010 |
US $7.43 |
||
|
23742
|
23742
23742-27010 Clamp, Injection Pipe, No.2[08.2000 - 09.2001] 1CDFTV..CDE110 |
23742-27010 |
from US $10.20 |
||
|
23762
|
23762
23762-27010 Pipe, Nozzle Leakage, No.2NOZZLE LEAKAGE, NO.2 [08.2000 - 09.2001] 1CDFTV..CDE110 |
23762-27010 |
US $17.76 |
||
|
23762A
|
23762A
90904-30012 Gasket, Nozzle Leakage Pipe No.2[08.2000 - 09.2001] 1CDFTV..CDE110 |
90904-30012 |
US $5.76 |
||
|
23765
|
23765
23765-27010 Pipe, Nozzle Leakage, No.5NOZZLE LEAKAGE, NO.5 [08.2000 - 09.2001] 1CDFTV..CDE110 |
23765-27010 |
US $7.43 |
||
|
23804C
|
23804C
23804-27010
Pipe Sub-Assy, Fuel Inlet
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23804-27010 |
— | ||
| replacement | |||||
|
23804C
|
23804C
23804-27011
Pipe Sub-Assy, Fuel Inlet
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23804-27011 |
— | ||
|
23810A
|
23810A
23810-27011
Rail Assy, Common
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23810-27011 |
— | ||
| replacement | |||||
|
23810A
|
23810A
23810-27021
Rail Assy, Common
[08.2000 - 09.2001] 1CDFTV..CDE110 |
23810-27021 |
— | ||
|
23811
|
23811
23811-27010 Pipe, Fuel(For Fuel Filter To Injection Pump)FUEL(FOR FUEL FILTER TO INJECTION PUMP) [08.2000 - 09.2001] 1CDFTV..CDE110 |
23811-27010 |
US $81.54 |
||
|
23812D
|
23812D
23812-27010 Pipe, Fuel, No.2FUEL, NO.2 [08.2000 - 09.2001] 1CDFTV..CDE110 |
23812-27010 |
US $36.11 |
||
|
23841A
|
23841A
23841-27010 Clamp, Fuel Pipe, No.1(For Injection Pump)FUEL PIPE, NO.1(FOR INJECTION PUMP) [08.2000 - 09.2001] 1CDFTV..CDE110 |
23841-27010 |
US $3.49 |
||
|
9011606035
|
9011606035
90116-06035 Bolt, Stud(For Timing Gear Cover) |
90116-06035 |
US $2.91 |
||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017908022
|
9017908022
90179-08022 NUT |
90179-08022 |
from US $1.58 |
||
|
9040108004
|
9040108004
90401-08004 Bolt Union(For Oil Jet) |
90401-08004 |
US $3.14 |
||
|
9043008014
|
9043008014
90430-08014 Gasket(For Oil Filter Outlet Pipe) |
90430-08014 |
from US $0.86 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9046711076
|
9046711076
90467-11076 Clamp Or Clip(For Air Hose, No.5) |
90467-11076 |
US $3.32 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9046713042
|
9046713042
90467-13042 Clip, No.2(For Idle-Up Hose) |
90467-13042 |
US $3.04 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
US $2.24 |
||
|
9151281045
|
9151281045
91512-81045 New Genuine Part |
91512-81045 |
US $3.52 |
||
|
9162160610
|
9162160610
91621-60610
New Genuine Part
|
91621-60610 |
— | ||
| replacement | |||||
|
9162160610
|
9162160610
91651-B0612 Bolt |
91651-B0612 |
US $1.92 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.88 |
||
|
9163360616
|
9163360616
91633-60616 New Genuine Part |
91633-60616 |
US $1.46 |
||
| replacement | |||||
|
9163360616
|
9163360616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.70 |
||
|
9212260625
|
9212260625
92122-60625 New Genuine Part |
92122-60625 |
US $0.76 |
||
|
9613241100
|
9613241100
96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose) |
96132-41100 |
US $1.92 |
||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
|
9613541100
|
9613541100
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
|
96135-41100 |
— | ||
| replacement | |||||
|
9613541100
|
9613541100
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.93 |
||
