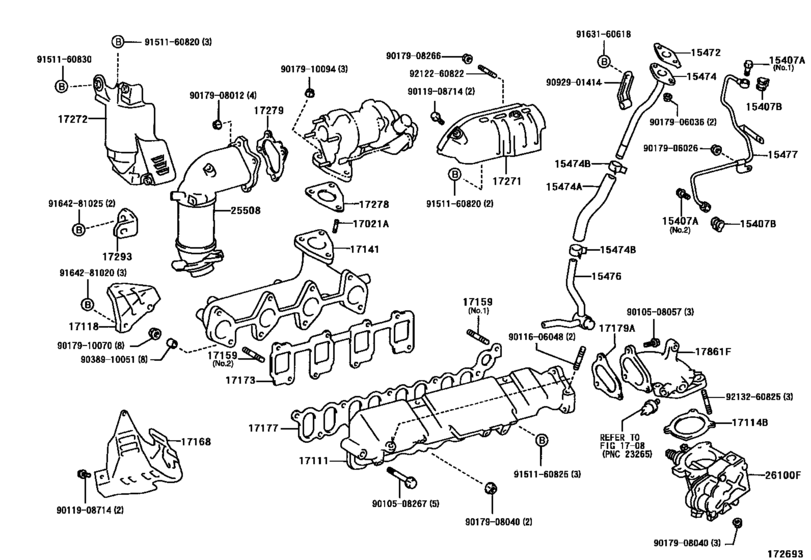

Manifold ([08.2000 - ] (0008- )1CDFTV) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407A
|
15407A
90401-10061 Bolt, Union(For Turbo Oil Inlet Pipe)UNION, NO.2 [08.2000 - 09.2001] 1CDFTV..CDE110 NO.1 |
90401-10061 |
US $3.49 |
||
|
15407A
|
15407A
90401-10063 Bolt, Union(For Turbo Oil Inlet Pipe)UNION(FOR TURBO OIL INLET PIPE) [08.2000 - 09.2001] 1CDFTV..CDE110 NO.2 |
90401-10063 |
US $3.49 |
||
|
15407B
|
15407B
90904-30011 Gasket(For Turbo Oil Inlet Pipe)[08.2000 - 09.2001] 1CDFTV..CDE110 |
90904-30011 |
from US $3.24 |
||
|
15472
|
15472
15472-27010
Gasket, Turbo Oil Outlet, No.1
[08.2000 - 09.2001] 1CDFTV..CDE110 |
15472-27010 |
— | ||
|
15474
|
15474
15474-27010
Pipe, Turbo Oil Outlet
[08.2000 - 09.2001] 1CDFTV..CDE110 |
15474-27010 |
— | ||
|
15474A
|
15474A
15491-27010 Hose, Turbo Oil OutletTURBO OIL OUTLET [08.2000 - 09.2001] 1CDFTV..CDE110 |
15491-27010 |
US $21.69 |
||
|
15474B
|
15474B
90467-20005
Clip(For Ventilation Hose No.2)
[08.2000 - 09.2001] 1CDFTV..CDE110 |
90467-20005 |
— | ||
| replacement | |||||
|
15474B
|
15474B
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.2000 - 09.2001] 1CDFTV..CDE110 |
96134-41900 |
from US $1.44 |
||
|
15476
|
15476
15476-27010 Pipe, Turbo Oil Outlet, No.2TURBO OIL OUTLET, NO.2 [08.2000 - 09.2001] 1CDFTV..CDE110 |
15476-27010 |
US $66.25 |
||
|
15477
|
15477
15477-27011 Pipe, Turbo Oil InletTURBO OIL INLET [08.2000 - 09.2001] 1CDFTV..CDE110 |
15477-27011 |
US $38.58 |
||
|
17021A
|
17021A
90116-10148 Bolt, Stud(For Turbocharger)[08.2000 - 09.2001] 1CDFTV..CDE110 |
90116-10148 |
US $1.31 |
||
|
17111
|
17111
17111-27010
Manifold, Intake
[08.2000 - 04.2001] 1CDFTV..CDE110 |
17111-27010 |
— | ||
| replacements | |||||
|
17111
|
17111
17111-27012
Manifold, Intake
[08.2000 - 04.2001] 1CDFTV..CDE110 |
17111-27012 |
— | ||
|
17111
|
17111
22815-27011 Insulator, Injection PumpINJECTION PUMP [08.2000 - 04.2001] 1CDFTV..CDE110 |
22815-27011 |
US $22.13 |
||
|
17111
|
17111
17111-27011
Manifold, Intake
[04.2001 - 09.2001] 1CDFTV..CDE110 |
17111-27011 |
— | ||
| replacements | |||||
|
17111
|
17111
17111-27012
Manifold, Intake
[04.2001 - 09.2001] 1CDFTV..CDE110 |
17111-27012 |
— | ||
|
17111
|
17111
22815-27011 Insulator, Injection PumpINJECTION PUMP [04.2001 - 09.2001] 1CDFTV..CDE110 |
22815-27011 |
US $22.13 |
||
|
17114B
|
17114B
26171-27010 Gasket, Intake FlangeINTAKE FLANGE [08.2000 - 09.2001] 1CDFTV..CDE110 |
26171-27010 |
US $5.74 |
||
|
17118
|
17118
17118-27020 Stay, ManifoldMANIFOLD [08.2000 - 09.2001] 1CDFTV..CDE110 |
17118-27020 |
US $46.01 |
||
|
17141
|
17141
17141-27020
Manifold, Exhaust
[08.2000 - 09.2001] 1CDFTV..CDE110 |
17141-27020 |
— | ||
|
17159
|
17159
90126-10024 Bolt, Stud(For Manifold To Cylinder Head)STUD(FOR MANIFOLD TO CYLINDER HEAD) [08.2000 - 09.2001] 1CDFTV..CDE110 NO.2 |
90126-10024 |
from US $3.45 |
||
|
17159
|
17159
92132-60820 Bolt, Stud(For Intake Manifold To Cylinder Head)[08.2000 - 09.2001] 1CDFTV..CDE110 NO.1 |
92132-60820 |
US $0.79 |
||
|
17168
|
17168
17168-27010 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [08.2000 - 09.2001] 1CDFTV..CDE110 |
17168-27010 |
US $45.43 |
||
|
17173
|
17173
17173-27010 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [08.2000 - 09.2001] 1CDFTV..CDE110 |
17173-27010 |
US $51.98 |
||
|
17177
|
17177
17177-27010 Gasket, Intake Manifold To Head, No.1INTAKE MANIFOLD TO HEAD, NO.1 [08.2000 - 09.2001] 1CDFTV..CDE110 |
17177-27010 |
US $13.40 |
||
|
17179A
|
17179A
17179-27010 Gasket, Intake Manifold, No.2INTAKE MANIFOLD, NO.2 [08.2000 - 09.2001] 1CDFTV..CDE110 |
17179-27010 |
US $4.80 |
||
|
17271
|
17271
17271-27020 Insulator, Turbo, No.1TURBO, NO.1 [08.2000 - 09.2001] 1CDFTV..CDE110 |
17271-27020 |
US $187.82 |
||
|
17272
|
17272
17272-27020 Insulator, Turbo, No.2TURBO, NO.2 [08.2000 - 09.2001] 1CDFTV..CDE110 |
17272-27020 |
US $151.42 |
||
|
17278
|
17278
17278-27010 Gasket, Turbo To Exhaust ManifoldTURBO TO EXHAUST MANIFOLD [08.2000 - 09.2001] 1CDFTV..CDE110 |
17278-27010 |
from US $7.86 |
||
|
17279
|
17279
17279-27010 Gasket, Turbine Outlet ElbowTURBINE OUTLET ELBOW [08.2000 - 09.2001] 1CDFTV..CDE110 |
17279-27010 |
US $13.40 |
||
|
17293
|
17293
17293-27010
Stay, Turbocharger
[08.2000 - 09.2001] 1CDFTV..CDE110 |
17293-27010 |
— | ||
|
17861F
|
17861F
17861-27011 Connector, Intake AirINTAKE AIR [08.2000 - 09.2001] 1CDFTV..CDE110 |
17861-27011 |
US $125.22 |
||
|
25508
|
25508
25051-27020 Converter Sub-Assy, ManifoldMANIFOLD [08.2000 - 09.2001] 1CDFTV..CDE110 *115=TOYOTA/00-01/N |
25051-27020 |
US $931.84 |
||
|
26100F
|
26100F
26100-27010 Shutter Assy, IntakeINTAKE [08.2000 - 02.2001] 1CDFTV..CDE110 |
26100-27010 |
US $168.90 |
||
| replacement | |||||
|
26100F
|
26100F
26100-27020 Shutter Assy, IntakeINTAKE [08.2000 - 02.2001] 1CDFTV..CDE110 |
26100-27020 |
US $436.80 |
||
|
26100F
|
26100F
26100-27020 Shutter Assy, IntakeINTAKE [02.2001 - 09.2001] 1CDFTV..CDE110 |
26100-27020 |
US $436.80 |
||
|
9010508057
|
9010508057
90105-08057 Bolt, W/washer(For Transmission Case Cover) |
90105-08057 |
US $3.79 |
||
|
9010508267
|
9010508267
90105-08267 BOLT WASHER BASED |
90105-08267 |
US $2.80 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.84 |
||
|
9011908714
|
9011908714
90119-08714
New Genuine Part
|
90119-08714 |
— | ||
| replacement | |||||
|
9011908714
|
9011908714
91621-40812 BOLT |
91621-40812 |
US $1.60 |
||
|
9017906026
|
9017906026
90179-06026
Nut, Cap(For Cylinder Head Cover)
|
90179-06026 |
— | ||
| replacement | |||||
|
9017906026
|
9017906026
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.68 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
from US $2.03 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.09 |
||
|
9017908266
|
9017908266
90179-08266 New Genuine Part |
90179-08266 |
US $1.75 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
9017910070
|
9017910070
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.93 |
||
|
9038910051
|
9038910051
90389-10051 New Genuine Part |
90389-10051 |
US $4.08 |
||
|
9092901414
|
9092901414
90929-01414 New Genuine Part |
90929-01414 |
US $6.12 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.05 |
||
|
9151160825
|
9151160825
91511-60825
Bolt (For Transfer Stiffener Plate)
|
91511-60825 |
— | ||
| replacement | |||||
|
9151160825
|
9151160825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
US $2.24 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.98 |
||
|
9163160618
|
9163160618
91631-60618 BOLT WWASHER |
91631-60618 |
US $1.46 |
||
| replacement | |||||
|
9163160618
|
9163160618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.82 |
||
|
9164281020
|
9164281020
91642-81020
New Genuine Part
|
91642-81020 |
— | ||
| replacement | |||||
|
9164281020
|
9164281020
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $2.72 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $0.98 |
||
|
9212260822
|
9212260822
92122-60822 Stud |
92122-60822 |
US $1.31 |
||
|
9213260825
|
9213260825
92132-60825 Bolt, Stud(For Manifold To Cylinder Head) |
92132-60825 |
US $3.20 |
||
