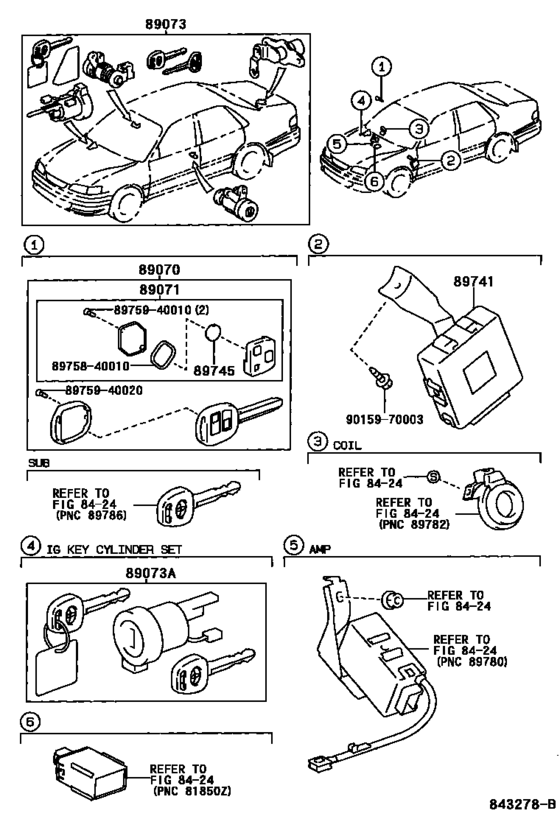

Wireless Door Lock ([01.2000 - ] (0001- )CDE110,WZE110) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89070
|
89070
89070-60360
Transmitter Assy, Door Control
[10.1999 - 12.2000] CDE110,WZE110,ZZE11#..RHD |
89070-60360 |
— | ||
| replacement | |||||
|
89070
|
89070
89070-60361
Transmitter Assy, Door Control
[10.1999 - 12.2000] CDE110,WZE110,ZZE11#..RHD |
89070-60361 |
— | ||
|
89070
|
89070
89070-60361
Transmitter Assy, Door Control
[12.2000 - 09.2001] AE115,CDE110,WZE110,ZZE11#..SOL,TERRA |
89070-60361 |
— | ||
|
89071
|
89071
89071-60080
Module Set, Transmitter Sub-Assy, Door Control
[10.1999 - 12.2000] AE115,CDE110,WZE110,ZZE11#..SOL,TERRA |
89071-60080 |
— | ||
| replacement | |||||
|
89071
|
89071
89071-60081 Module Set, Transmitter Sub-Assy, Door ControlTRANSMITTER SUB-ASSY, DOOR CONTROL [10.1999 - 12.2000] AE115,CDE110,WZE110,ZZE11#..SOL,TERRA |
89071-60081 |
US $183.46 |
||
|
89071
|
89071
89071-60081 Module Set, Transmitter Sub-Assy, Door ControlTRANSMITTER SUB-ASSY, DOOR CONTROL [12.2000 - 09.2001] ZZE11#..WG;CDE110..TERRA;WZE110..LHD..WG;ZZE111..RHD..SED;AE115,CDE110..WG..SOL;WZ E110,ZZE112..RHD..TERRA |
89071-60081 |
US $183.46 |
||
|
89073
|
89073
89073-12060
Cylinder Set, Lock W/transmitter Housing(Less Module)
[10.1999 - 12.2000] CDE110,WZE110,ZZE11#..RHD..SED |
89073-12060 |
— | ||
| replacement | |||||
|
89073
|
89073
89073-12061
Cylinder Set, Lock W/transmitter Housing(Less Module)
[10.1999 - 12.2000] CDE110,WZE110,ZZE11#..RHD..SED |
89073-12061 |
— | ||
|
89073
|
89073
89073-12061
Cylinder Set, Lock W/transmitter Housing(Less Module)
[12.2000 - 09.2001] CDE110,WZE110,ZZE11#..SED..(SOL,TERRA) |
89073-12061 |
— | ||
|
89073A
|
89073A
89073-12010
Ign Cylinder Set Lock W/transmitter Housing (Cut Key)
[10.1999 - 12.2000] CDE110,WZE110,ZZE11#..RHD |
89073-12010 |
— | ||
| replacement | |||||
|
89073A
|
89073A
89073-12011
Ign Cylinder Set Lock W/transmitter Housing (Cut Key)
[10.1999 - 12.2000] CDE110,WZE110,ZZE11#..RHD |
89073-12011 |
— | ||
|
89073A
|
89073A
89073-12011
Ign Cylinder Set Lock W/transmitter Housing (Cut Key)
[12.2000 - 09.2001] AE115,CDE110,WZE110,ZZE11#..SOL,TERRA |
89073-12011 |
— | ||
|
89741
|
89741
89741-12200
Receiver, Door Control
[10.1999 - 12.2000] CDE110,WZE110,ZZE11#..RHD |
89741-12200 |
— | ||
| replacement | |||||
|
89741
|
89741
89741-12201
Receiver, Door Control
[10.1999 - 12.2000] CDE110,WZE110,ZZE11#..RHD |
89741-12201 |
— | ||
|
89741
|
89741
89741-12201
Receiver, Door Control
[12.2000 - 07.2001] CDE110,WZE110,ZZE11#..RHD |
89741-12201 |
— | ||
|
89745
|
89745
89745-40010
Transmitter Battery
[10.1999 - 12.2000] AE115,CDE110,EE110,WZE110,ZZE11#..SOL,TERRA |
89745-40010 |
— | ||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $3.20 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $1.92 |
||
|
8975940020
|
8975940020
89759-40020 Screw, Door Control Transmitter |
89759-40020 |
from US $1.05 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
