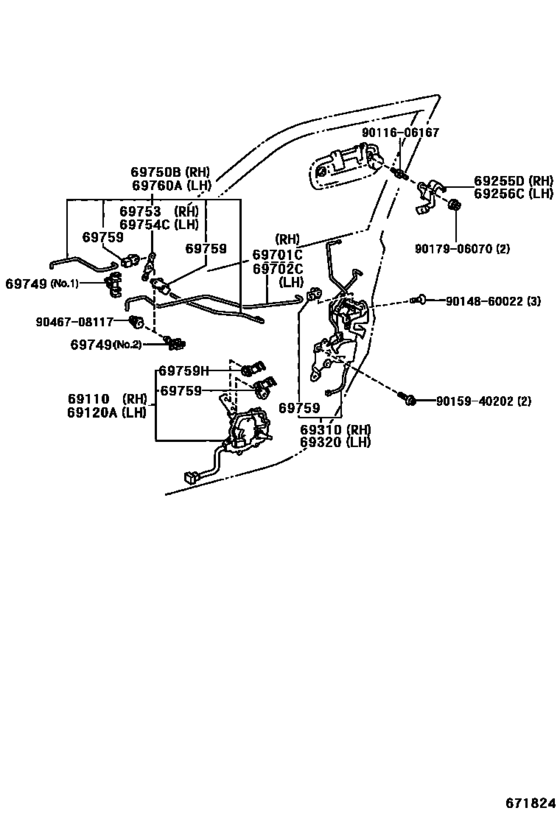

Front Door Lock & Handle ([10.1999 - ] W(DOUBLE LOCK) (9910- )RHD..HB) Diagram Toyota COROLLA
- Year
- 2000 - 2001
- Sales region
- Europe
- Frame
- CDE110
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2000
- To
- 07.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69110
|
69110
69110-12010 Actuator Assy, Front Door Lock, RhFRONT DOOR LOCK, RH [01.2000 - 07.2001] ZZE112..RHD..HB..4FC;CDE110,WZE110..RHD..HB |
69110-12010 |
US $122.30 |
||
|
69110
|
69110
69110-12060 Actuator Assy, Front Door Lock, RhFRONT DOOR LOCK, RH [10.1999 - 07.2001] ZZE11#..RHD..G6; CDE110,WZE110,ZZE11#..RHD..HB..TERRA W(DOUBLE-LOCK) |
69110-12060 |
US $131.04 |
||
|
69120A
|
69120A
69120-12010 Actuator Assy, Front Door Lock, LhFRONT DOOR LOCK, LH [01.2000 - 07.2001] ZZE112..RHD..HB..4FC;CDE110,WZE110..RHD..HB |
69120-12010 |
US $122.30 |
||
|
69120A
|
69120A
69120-12060 Actuator Assy, Front Door Lock, LhFRONT DOOR LOCK, LH [10.1999 - 07.2001] ZZE11#..RHD..G6; CDE110,WZE110,ZZE11#..RHD..HB..TERRA W(DOUBLE-LOCK) |
69120-12060 |
US $131.04 |
||
|
69255D
|
69255D
69255-12030 Protector, Door Outside HandleDOOR OUTSIDE HANDLE [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..JPP..RHD |
69255-12030 |
US $6.41 |
||
|
69256C
|
69256C
69256-12010 Protector, Door Outside Handle, LhDOOR OUTSIDE HANDLE, LH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..JPP..RHD |
69256-12010 |
US $6.41 |
||
|
69310
|
69310
69310-12561 Lock Assy, Front Door, RhFRONT DOOR, RH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB..(STD,TERRA) |
69310-12561 |
US $161.62 |
||
|
69310
|
69310
69310-12621 Lock Assy, Front Door, RhFRONT DOOR, RH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..RHD..HB..TERRA W(POWER DOOR LOCK) |
69310-12621 |
US $161.62 |
||
|
69310
|
69310
69310-12690 Lock Assy, Front Door, RhFRONT DOOR, RH [10.1999 - 07.2001] ZZE11#..RHD..G6; CDE110,WZE110,ZZE11#..RHD..HB..TERRA W(DOUBLE-LOCK) |
69310-12690 |
US $131.04 |
||
|
69320
|
69320
69320-12571 Lock Assy, Front Door, LhFRONT DOOR, LH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB..(STD,TERRA) |
69320-12571 |
US $161.62 |
||
|
69320
|
69320
69320-12621 Lock Assy, Front Door, LhFRONT DOOR, LH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..RHD..HB..TERRA W(POWER DOOR LOCK) |
69320-12621 |
US $161.62 |
||
|
69320
|
69320
69320-12680 Lock Assy, Front Door, LhFRONT DOOR, LH [10.1999 - 07.2001] ZZE11#..RHD..G6; CDE110,WZE110,ZZE11#..RHD..HB..TERRA W(DOUBLE-LOCK) |
69320-12680 |
US $131.04 |
||
|
69701C
|
69701C
69701-12010 Link Sub-Assy, Front Door Lock Control, RhFRONT DOOR LOCK CONTROL, RH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
69701-12010 |
US $18.93 |
||
|
69702C
|
69702C
69702-12010 Link Sub-Assy, Front Door Lock Control, LhFRONT DOOR LOCK CONTROL, LH [10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
69702-12010 |
US $18.93 |
||
|
69749
|
69749
69749-20040
Clamp, Front Door Lock Link
[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB NO.1 |
69749-20040 |
— | ||
|
69749
|
69749
69749-32030 Clamp, Front Door Lock Link[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB NO.2 |
69749-32030 |
US $1.60 |
||
|
69750B
|
69750B
69750-12080 Link Assy, Front Door Inside Locking, RhFRONT DOOR INSIDE LOCKING, RH [10.1999 - 07.2001] ZZE11#..LHD..G6;CDE110,WZE110,ZZE11#..HB..(4FC,5F) |
69750-12080 |
US $18.05 |
||
|
69750B
|
69750B
69750-12090 Link Assy, Front Door Inside Locking, RhFRONT DOOR INSIDE LOCKING, RH [10.1999 - 07.2001] ZZE11#..RHD..G6; CDE110,WZE110,ZZE11#..RHD..HB..TERRA W(DOUBLE-LOCK) |
69750-12090 |
US $18.05 |
||
|
69753
|
69753
69753-12110 Bellcrank, Door Lock Control, Rh[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
69753-12110 |
US $4.51 |
||
|
69754C
|
69754C
69754-12040 Bellcrank, Door Lock Control, Lh[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB |
69754-12040 |
US $4.51 |
||
|
69759
|
69759
69759-24050 Snap, Hood Auxiliary Catch Hook Control Link[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB GREEN |
69759-24050 |
from US $3.84 |
||
|
69759
|
69759
69759-24060 Snap(For Rear Door Lock)[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..HB GRAY |
69759-24060 |
from US $4.64 |
||
|
69759
|
69759
69759-24080 Snap, Front Door Lock Control Rod[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..RHD..HB W(DOUBLE-LOCK),YELLOW |
69759-24080 |
US $3.20 |
||
|
69759
|
69759
69759-33030 Snap, Door Lock Control Link, No.1[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..RHD..HB W(DOUBLE-LOCK),ORANGE |
69759-33030 |
US $3.93 |
||
|
69759
|
69759
69759-50030 Snap, Front Door Lock Control Rod[10.1999 - 07.2001] CDE110,ZZE11#..RHD..HB |
69759-50030 |
US $2.62 |
||
|
69759H
|
69759H
69759-50040 Snap, Front Door Lock Control Rod[10.1999 - 07.2001] CDE110,WZE110,ZZE11#..RHD..HB |
69759-50040 |
US $3.84 |
||
|
69760A
|
69760A
69760-12080 Link Assy, Front Door Inside Locking, LhFRONT DOOR INSIDE LOCKING, LH [10.1999 - 07.2001] ZZE11#..LHD..G6;CDE110,WZE110,ZZE11#..HB..(4FC,5F) |
69760-12080 |
US $18.05 |
||
|
69760A
|
69760A
69760-12090 Link Assy, Front Door Inside Locking, LhFRONT DOOR INSIDE LOCKING, LH [10.1999 - 07.2001] ZZE11#..RHD..G6; CDE110,WZE110,ZZE11#..RHD..HB..TERRA W(DOUBLE-LOCK) |
69760-12090 |
US $18.05 |
||
|
9011606167
|
9011606167
90116-06167 New Genuine Part |
90116-06167 |
US $1.60 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $0.96 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9046708117
|
9046708117
90467-08117 Clamp, Rear Door Lock |
90467-08117 |
US $1.44 |
||
