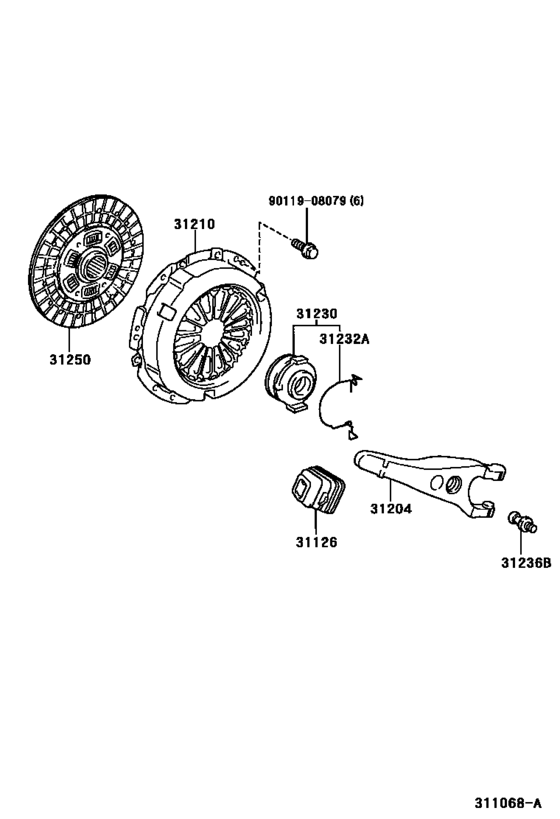

Clutch & Release Fork ([09.2002 - 05.2004] (0209-0405)CDE120..JPP) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.2002
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20080 Boot, Clutch Release Fork[09.2002 - 05.2004] CDE120..JPP |
31126-20080 |
from US $11.36 |
||
|
31204
|
31204
31204-20130
Fork Sub-Assy, Clutch Release
[09.2002 - 01.2003] CDE120..JPP |
31204-20130 |
— | ||
| replacement | |||||
|
31204
|
31204
31204-20131 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [09.2002 - 01.2003] CDE120..JPP |
31204-20131 |
US $82.99 |
||
|
31204
|
31204
31204-20131 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [01.2003 - 05.2004] CDE120..JPP |
31204-20131 |
US $82.99 |
||
|
31210
|
31210
31210-12240 Cover Assy, ClutchCLUTCH [09.2002 - 05.2004] CDE120..JPP |
31210-12240 |
US $214.03 |
||
| replacement | |||||
|
31210
|
31210
31210-12242
Cover Assy, Clutch
[09.2002 - 05.2004] CDE120..JPP |
31210-12242 |
— | ||
|
31230
|
31230
31230-20191 Bearing Assy, Clutch Release[09.2002 - 05.2004] CDE120..JPP |
31230-20191 |
from US $27.66 |
||
|
31232A
|
31232A
31232-20031 Clip, Release Bearing Hub[09.2002 - 05.2004] CDE120..JPP |
31232-20031 |
from US $2.56 |
||
|
31236B
|
31236B
31236-20080
Support, Release Fork
[09.2002 - 05.2004] CDE120..JPP |
31236-20080 |
— | ||
|
31250
|
31250
31250-12410 Disc Assy, ClutchCLUTCH [09.2002 - 05.2004] CDE120..JPP |
31250-12410 |
US $294.11 |
||
| replacement | |||||
|
31250
|
31250
31250-12412 Disc Assy, Clutch[09.2002 - 05.2004] CDE120..JPP |
31250-12412 |
from US $165.98 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
