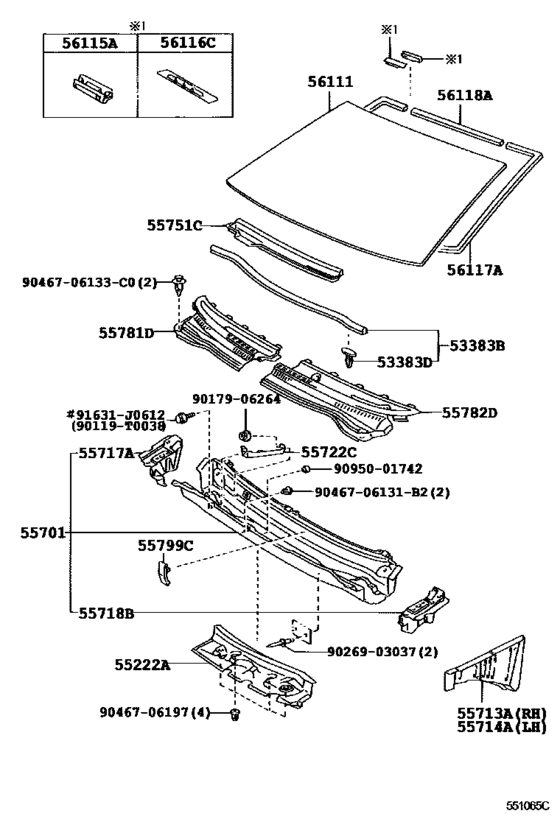

Cowl Panel & Windshield Glass ([09.2002 - 05.2004] (0209-0405)JPP..LHD) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.2002
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-12140 Seal, Hood To Cowl Top[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53383-12140 |
from US $15.66 |
||
|
53383D
|
53383D
90467-08108 Clip(For Hood To Cowl Top Seal)[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
90467-08108 |
from US $0.82 |
||
|
55222A
|
55222A
55224-02010
Insulator, Dash Panel, Outer Center
[09.2002 - 08.2003] CDE120,ZZE12#..JPP |
55224-02010 |
— | ||
| replacement | |||||
|
55222A
|
55222A
55224-02011
Insulator, Dash Panel, Outer Center
[09.2002 - 08.2003] CDE120,ZZE12#..JPP |
55224-02011 |
— | ||
|
55222A
|
55222A
55224-02011
Insulator, Dash Panel, Outer Center
[08.2003 - 05.2004] CDE120,ZZE12#..JPP |
55224-02011 |
— | ||
|
55701
|
55701
55700-13050 Panel Sub-Assy, CowlCOWL [09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
55700-13050 |
US $452.82 |
||
| replacement | |||||
|
55701
|
55701
55700-13051 Panel Sub-Assy, CowlCOWL [09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
55700-13051 |
US $452.82 |
||
|
55713A
|
55713A
55713-12110 Panel, Cowl Top Side, Rh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
55713-12110 |
US $52.85 |
||
|
55714A
|
55714A
55714-12110 Panel, Cowl Top Side, Lh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
55714-12110 |
US $52.85 |
||
|
55717A
|
55717A
55717-12170 Panel, Cowl Top Side, Inner Rh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
55717-12170 |
from US $22.57 |
||
|
55718B
|
55718B
55718-12120 Panel, Cowl Top Side, Inner Lh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
55718-12120 |
US $22.57 |
||
|
55722C
|
55722C
55722-13020 Brace, Cowl Top To Cowl, InnerCOWL TOP TO COWL, INNER [09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
55722-13020 |
US $9.61 |
||
|
55751C
|
55751C
55751-12071 Shield, Cowl Ventilator SplashCOWL VENTILATOR SPLASH [09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
55751-12071 |
US $29.12 |
||
|
55781D
|
55781D
55708-12250
Louver, Cowl Top Ventilator, Rh
[09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
55708-12250 |
— | ||
|
55781D
|
55781D
55708-12260 Louver, Cowl Top Ventilator, RhCOWL TOP VENTILATOR, RH [09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD COLD SPEC |
55708-12260 |
US $85.90 |
||
|
55782D
|
55782D
55709-12040 Louver, Cowl Top Ventilator, LhCOWL TOP VENTILATOR, LH [09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
55709-12040 |
US $77.17 |
||
|
55782D
|
55782D
55709-12050 Louver, Cowl Top Ventilator, LhCOWL TOP VENTILATOR, LH [09.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD COLD SPEC |
55709-12050 |
US $85.90 |
||
|
55799C
|
55799C
55799-13020 Clip, Cowl Top Ventilator LouverCOWL TOP VENTILATOR LOUVER [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
55799-13020 |
US $7.57 |
||
|
56111
|
56111
56101-13020
Glass, Windshield
[09.2002 - 05.2004] CDE120,ZZE12#..JPP *LAM,T=4.96,GREEN |
56101-13020 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-12240
Dam, Front Pillar, Outer
[09.2002 - 05.2004] CDE120,ZZE12#..JPP *D,L=3357 |
56117-12240 |
— | ||
| replacement | |||||
|
56117A
|
56117A
56117-47010 Dam Kit, Back Window Glass Adhesive[09.2002 - 05.2004] CDE120,ZZE12#..JPP *D,L=3357 |
56117-47010 |
from US $24.78 |
||
|
56118A
|
56118A
56117-12240
Dam, Front Pillar, Outer
[09.2002 - 05.2004] CDE120,ZZE12#..JPP *D,L=686 |
56117-12240 |
— | ||
| replacement | |||||
|
56118A
|
56118A
56117-47010 Dam Kit, Back Window Glass Adhesive[09.2002 - 05.2004] CDE120,ZZE12#..JPP *D,L=686 |
56117-47010 |
from US $24.78 |
||
|
90119T0038
|
90119T0038
90119-T0038 BOLT WWASHER |
90119-T0038 |
US $0.73 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.78 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.90 |
||
|
9026903037
|
9026903037
90269-03037 RIVET |
90269-03037 |
US $1.76 |
||
|
9046706131B2
|
9046706131B2
90467-06131-B2 Clip |
90467-06131-B2 |
US $1.22 |
||
|
9046706133C0
|
9046706133C0
90467-06133-C0 Clip, Step Plate Cover |
90467-06133-C0 |
from US $1.52 |
||
|
9046706197
|
9046706197
90467-06197 Clip |
90467-06197 |
US $1.92 |
||
|
9095001742
|
9095001742
90950-01742 New Genuine Part |
90950-01742 |
US $1.49 |
||
