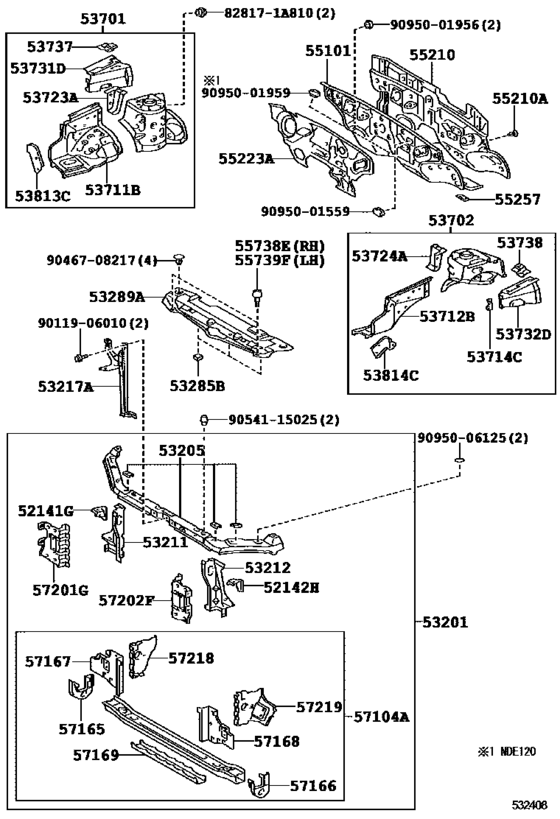

Front Fender Apron & Dash Panel ([09.2002 - 05.2004] (0209-0405)JPP) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.2002
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-13050 Stay, Front Bumper, Rh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
52141-13050 |
US $20.68 |
||
|
52142H
|
52142H
52142-13050 Stay, Front Bumper, Lh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
52142-13050 |
US $20.68 |
||
|
53201
|
53201
53201-13090 Support Sub-Assy, RadiatorRADIATOR [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53201-13090 |
US $326.14 |
||
|
53205
|
53205
53205-13900 Support Sub-Assy, Radiator, UpperRADIATOR, UPPER [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53205-13900 |
US $131.04 |
||
|
53211
|
53211
53211-13040 Support, Radiator, RhRADIATOR, RH [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53211-13040 |
US $41.06 |
||
|
53212
|
53212
53212-13040 Support, Radiator, LhRADIATOR, LH [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53212-13040 |
US $41.06 |
||
|
53217A
|
53217A
53208-13060
Support Sub-Assy, Hood Lock
[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53208-13060 |
— | ||
|
53285B
|
53285B
53155-02020 Seal, Radiator Side Air, No.1[09.2002 - 08.2003] CDE120,ZZE12#..JPP |
53155-02020 |
US $7.43 |
||
|
53285B
|
53285B
53155-13020 Seal, Front Side MemberFRONT SIDE MEMBER [08.2003 - 05.2004] CDE120,ZZE12#..JPP |
53155-13020 |
US $7.57 |
||
|
53289A
|
53289A
53141-02010
Cover, Radiator Support Opening
[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53141-02010 |
— | ||
|
53701
|
53701
53701-13070 Apron Sub-Assy, Front Fender, RhFRONT FENDER, RH [09.2002 - 11.2002] CDE120,ZZE12#..JPP |
53701-13070 |
US $262.08 |
||
| replacement | |||||
|
53701
|
53701
53701-1A090 Apron Sub-Assy, Front Fender, Rh[09.2002 - 11.2002] CDE120,ZZE12#..JPP |
53701-1A090 |
US $262.08 |
||
|
53701
|
53701
53701-1A090 Apron Sub-Assy, Front Fender, Rh[11.2002 - 05.2004] CDE120,ZZE12#..JPP |
53701-1A090 |
US $262.08 |
||
|
53702
|
53702
53702-1A060 Apron Sub-Assy, Front Fender, Lh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53702-1A060 |
US $262.08 |
||
|
53711B
|
53711B
53711-12910 Apron, Front Fender, Front Rh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53711-12910 |
US $87.36 |
||
|
53712B
|
53712B
53712-12190
Apron, Front Fender, Front Lh
[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53712-12190 |
— | ||
|
53714C
|
53714C
53714-13020 Extension, Front Fender Apron, Front Lh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53714-13020 |
US $4.80 |
||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53723-12080 |
US $8.74 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53724-12070 |
US $8.74 |
||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53731-12160 |
US $20.09 |
||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53732-12140 |
US $20.09 |
||
|
53737
|
53737
53737-12060 Plate, Front Apron To Cowl Side Member, Rh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53737-12060 |
US $6.70 |
||
|
53738
|
53738
53738-12030 Plate, Front Apron To Cowl Side Member, Lh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53738-12030 |
US $6.70 |
||
|
53813C
|
53813C
53813-12060 Extension, Front Fender, Rh[11.2002 - 05.2004] CDE120,ZZE12#..JPP |
53813-12060 |
US $6.84 |
||
|
53813C
|
53813C
53813-12080 Extension, Front Fender, RhFRONT FENDER, RH [09.2002 - 11.2002] CDE120,ZZE12#..JPP |
53813-12080 |
US $8.30 |
||
|
53814C
|
53814C
53814-12020 Extension, Front Fender, Lh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53814-12020 |
US $5.97 |
||
|
55101
|
55101
55101-13390
Panel Sub-Assy, Dash
[09.2002 - 05.2004] CDE120..JPP |
55101-13390 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-02300
Panel Sub-Assy, Dash
[09.2002 - 05.2004] CDE120..JPP |
55101-02300 |
— | ||
|
55101
|
55101
55101-13420
Panel Sub-Assy, Dash
[09.2002 - 05.2004] CDE120..JPP COLD SPEC |
55101-13420 |
— | ||
| replacement | |||||
|
55101
|
55101
55101-02300
Panel Sub-Assy, Dash
[09.2002 - 05.2004] CDE120..JPP COLD SPEC |
55101-02300 |
— | ||
|
55210
|
55210
55210-02080
Insulator Assy, Dash Panel
[09.2002 - 01.2004] CDE120,ZZE12#..JPP..LHD |
55210-02080 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-02082
Insulator Assy, Dash Panel
[09.2002 - 01.2004] CDE120,ZZE12#..JPP..LHD |
55210-02082 |
— | ||
|
55210
|
55210
55210-02081
Insulator Assy, Dash Panel
[01.2004 - 05.2004] CDE120,ZZE12#..JPP..LHD |
55210-02081 |
— | ||
| replacement | |||||
|
55210
|
55210
55210-02082
Insulator Assy, Dash Panel
[01.2004 - 05.2004] CDE120,ZZE12#..JPP..LHD |
55210-02082 |
— | ||
|
55210A
|
55210A
90467-10005-B0 Clip[09.2002 - 05.2004] CDE120,ZZE12#..JPP..TERRA MD.CHARCOAL,TRIM1#,8#; CDE120,ZZE12#..JPP..SOL MD.CHARCOAL,TRIM0#,1# |
90467-10005-B0 |
US $3.20 |
||
|
55223A
|
55223A
55223-02070
Insulator, Dash Panel, Outer
[09.2002 - 11.2002] CDE120,ZZE12#..JPP..LHD |
55223-02070 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-05082
Insulator, Dash Panel, Outer
[09.2002 - 11.2002] CDE120,ZZE12#..JPP..LHD |
55223-05082 |
— | ||
|
55223A
|
55223A
55223-05080
Insulator, Dash Panel, Outer
[11.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
55223-05080 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-05082
Insulator, Dash Panel, Outer
[11.2002 - 05.2004] CDE120,ZZE12#..JPP..LHD |
55223-05082 |
— | ||
|
55257
|
55257
55257-32010 Cover, Dash Panel Opening[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
55257-32010 |
US $2.91 |
||
|
55738E
|
55738E
53119-12150 Cover, Front Bumper Side(For Gllile Guard)[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53119-12150 |
from US $7.04 |
||
|
55739F
|
55739F
53119-12150 Cover, Front Bumper Side(For Gllile Guard)[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
53119-12150 |
from US $7.04 |
||
|
57104A
|
57104A
57104-13020 Member Sub-Assy, Front CrossFRONT CROSS [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57104-13020 |
US $251.89 |
||
| replacement | |||||
|
57104A
|
57104A
57104-13021 Member Sub-Assy, Front CrossFRONT CROSS [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57104-13021 |
US $251.89 |
||
|
57165
|
57165
57165-12070 Reinforcement, Front Crossmember, Lower Rh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57165-12070 |
US $12.08 |
||
|
57166
|
57166
57166-12020 Reinforcement, Front Crossmember, Lower Lh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57166-12020 |
US $12.08 |
||
|
57167
|
57167
57167-13010 Gusset, Front Crossmember, Upper RhFRONT CROSSMEMBER, UPPER RH [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57167-13010 |
US $19.51 |
||
|
57168
|
57168
57168-13010 Gusset, Front Crossmember, Upper LhFRONT CROSSMEMBER, UPPER LH [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57168-13010 |
US $21.69 |
||
|
57169
|
57169
57169-12020 Member, Front Floor, Front Rh[09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57169-12020 |
US $39.89 |
||
|
57201G
|
57201G
57201-13010 Extension Sub-Assy, Front Side Member, RhFRONT SIDE MEMBER, RH [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57201-13010 |
US $53.14 |
||
|
57202F
|
57202F
57202-13010 Extension Sub-Assy, Front Side Member, LhFRONT SIDE MEMBER, LH [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57202-13010 |
US $53.14 |
||
|
57218
|
57218
57218-13020 Gusset, Front Side Member, No.1FRONT SIDE MEMBER, NO.1 [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57218-13020 |
US $30.58 |
||
|
57219
|
57219
57219-13020 Gusset, Front Side Member, No.2FRONT SIDE MEMBER, NO.2 [09.2002 - 05.2004] CDE120,ZZE12#..JPP |
57219-13020 |
US $32.18 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.76 |
||
|
9046708217
|
9046708217
90467-08217 Clip(For Radiator Side Air Seal) |
90467-08217 |
from US $0.92 |
||
|
9054115025
|
9054115025
90541-15025 Cushion, Hood Bumper |
90541-15025 |
from US $2.79 |
||
|
9095001559
|
9095001559
90950-01559 Grommet, (For Cooler Pipe) |
90950-01559 |
US $2.48 |
||
|
9095001956
|
9095001956
90950-01956 PLUG HOLE |
90950-01956 |
from US $1.60 |
||
|
9095001959
|
9095001959
90950-01959 Cover, Console Box Hole |
90950-01959 |
from US $1.92 |
||
|
9095006125
|
9095006125
90950-06125 TAPE SEAL |
90950-06125 |
from US $1.99 |
||
