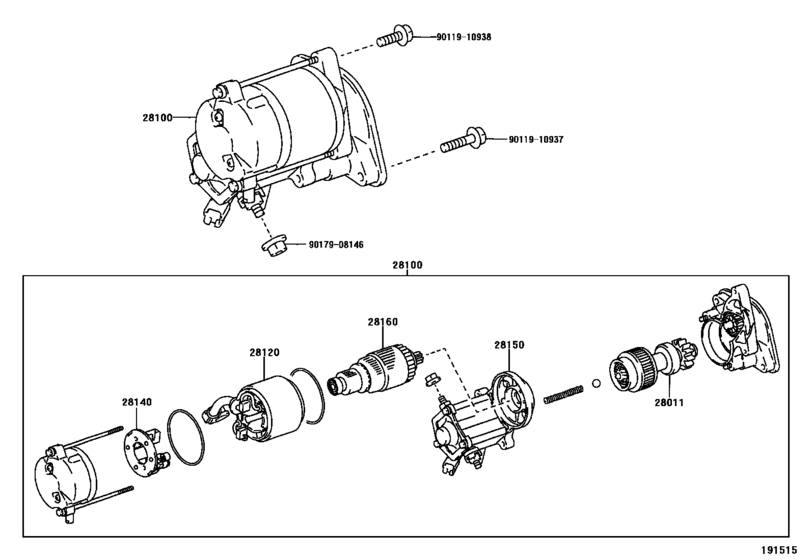

Starter ([09.2002 - ] 12V 1.4KW (0209- )1CDFTV..JPP) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- JPP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.2002
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-64020 Clutch Sub-Assy, Starter[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 2.2KW |
28011-64020 |
US $203.84 |
||
|
28011
|
28011
28011-64130 Clutch Sub-Assy, Starter[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 1.4KW |
28011-64130 |
US $189.28 |
||
|
28100
|
28100
28100-64300 Starter Assy[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 1.4KW |
28100-64300 |
US $1,415.23 |
||
|
28100
|
28100
28100-64430 Starter Assy[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 2.2KW |
28100-64430 |
US $1,994.72 |
||
|
28120
|
28120
28120-55050
Yoke Assy, Starter
[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 1.4KW |
28120-55050 |
— | ||
|
28120
|
28120
28120-64040
Yoke Assy, Starter
[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 2.2KW |
28120-64040 |
— | ||
|
28140
|
28140
28140-64040 Holder Assy, Starter Brush[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 2.2KW |
28140-64040 |
from US $37.19 |
||
|
28140
|
28140
28140-64130
Holder Assy, Starter Brush
[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 1.4KW |
28140-64130 |
— | ||
|
28150
|
28150
28150-64341 Switch Assy, Magnet Starter[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 1.4KW |
28150-64341 |
US $154.34 |
||
|
28150
|
28150
28150-64430 Switch Assy, Magnet StarterMAGNET STARTER [09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 2.2KW |
28150-64430 |
US $311.58 |
||
|
28160
|
28160
28160-64041 Armature Assy, Starter[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 2.2KW |
28160-64041 |
US $242.86 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[09.2002 - 05.2004] 1CDFTV..CDE120..JPP 12V 1.4KW |
28160-74070 |
— | ||
|
9011910937
|
9011910937
90119-10937 New Genuine Part |
90119-10937 |
US $2.33 |
||
|
9011910938
|
9011910938
90119-10938 New Genuine Part |
90119-10938 |
US $1.40 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
