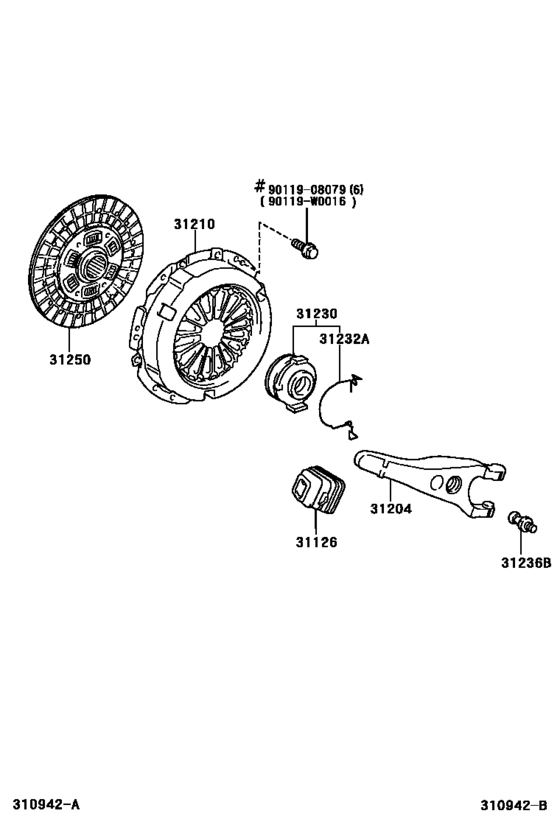

Clutch & Release Fork ([01.2002 - 06.2004] (0201-0406)CDE120..UKP) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2002
- To
- 06.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20080 Boot, Clutch Release Fork[01.2002 - 06.2004] CDE120..UKP |
31126-20080 |
from US $8.94 |
||
|
31204
|
31204
31204-20130 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [01.2002 - 01.2003] CDE120..UKP |
31204-20130 |
US $75.71 |
||
| replacement | |||||
|
31204
|
31204
31204-20131 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [01.2002 - 01.2003] CDE120..UKP |
31204-20131 |
US $73.56 |
||
|
31204
|
31204
31204-20131 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [01.2003 - 06.2004] CDE120..UKP |
31204-20131 |
US $73.56 |
||
|
31210
|
31210
31210-12240 Cover Assy, ClutchCLUTCH [01.2002 - 04.2004] CDE120..UKP |
31210-12240 |
US $214.03 |
||
| replacement | |||||
|
31210
|
31210
31210-12242
Cover Assy, Clutch
[01.2002 - 04.2004] CDE120..UKP |
31210-12242 |
— | ||
|
31210
|
31210
31210-12241 Cover Assy, ClutchCLUTCH [05.2004 - 06.2004] CDE120..UKP |
31210-12241 |
US $214.03 |
||
| replacement | |||||
|
31210
|
31210
31210-12242
Cover Assy, Clutch
[05.2004 - 06.2004] CDE120..UKP |
31210-12242 |
— | ||
|
31230
|
31230
31230-20191 Bearing Assy, Clutch Release[01.2002 - 06.2004] CDE120..UKP |
31230-20191 |
from US $20.48 |
||
|
31232A
|
31232A
31232-20031 Clip, Release Bearing Hub[01.2002 - 06.2004] CDE120..UKP |
31232-20031 |
US $1.93 |
||
|
31236B
|
31236B
31236-20080 Support, Release ForkRELEASE FORK [01.2002 - 06.2004] CDE120..UKP |
31236-20080 |
from US $6.12 |
||
|
31250
|
31250
31250-12410 Disc Assy, ClutchCLUTCH [01.2002 - 06.2004] CDE120..UKP |
31250-12410 |
US $294.11 |
||
| replacement | |||||
|
31250
|
31250
31250-12412 Disc Assy, Clutch[01.2002 - 06.2004] CDE120..UKP |
31250-12412 |
US $165.98 |
||
|
90119W0016
|
90119W0016
90119-W0016
Bolt (For Transmission Control Cable Bracket)
|
90119-W0016 |
— | ||
| replacement | |||||
|
90119W0016
|
90119W0016
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.59 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.59 |
||
