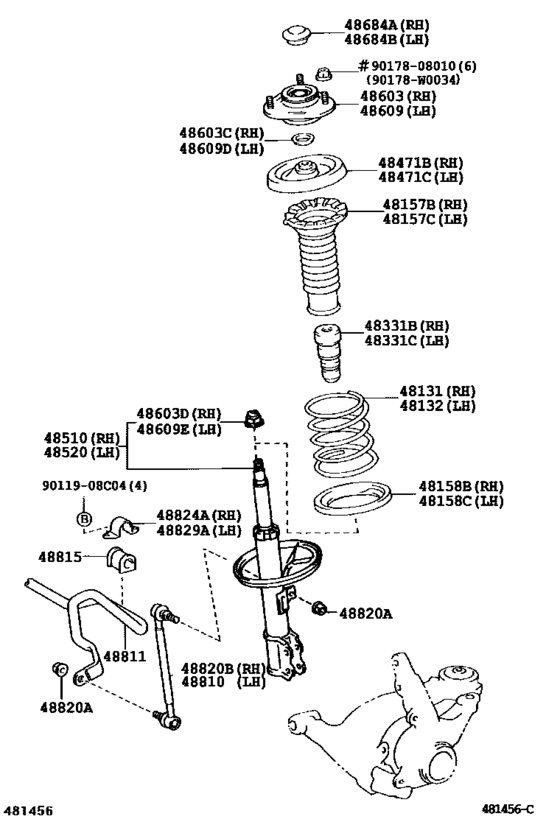

Front Spring & Shock Absorber ([01.2002 - ] (0201- )UKP) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2002
- To
- 06.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48135-02030
Spring, Front Coil, Rh
[01.2002 - 06.2004] CDE120..UKP |
48135-02030 |
— | ||
|
48132
|
48132
48135-02030
Spring, Front Coil, Rh
[01.2002 - 06.2004] CDE120..UKP |
48135-02030 |
— | ||
|
48157B
|
48157B
48157-02060
Insulator, Front Coil Spring, Upper Rh
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48157-02060 |
— | ||
|
48157C
|
48157C
48157-02060
Insulator, Front Coil Spring, Upper Rh
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48157-02060 |
— | ||
|
48158B
|
48158B
48158-02050
Insulator, Front Coil Spring, Lower Rh
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48158-02050 |
— | ||
| replacement | |||||
|
48158B
|
48158B
48158-47010 Insulator, Front Coil Spring, Lower Rh[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48158-47010 |
from US $10.55 |
||
|
48158C
|
48158C
48158-02050
Insulator, Front Coil Spring, Lower Rh
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48158-02050 |
— | ||
| replacement | |||||
|
48158C
|
48158C
48158-47010 Insulator, Front Coil Spring, Lower Rh[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48158-47010 |
from US $10.55 |
||
|
48331B
|
48331B
48331-02050 Bumper, Front Spring, Rh[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48331-02050 |
from US $11.56 |
||
|
48331C
|
48331C
48331-02050 Bumper, Front Spring, Rh[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48331-02050 |
from US $11.56 |
||
|
48471B
|
48471B
48044-02040
Seat, Front Coil Spring, Upper Rh
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48044-02040 |
— | ||
|
48471C
|
48471C
48044-02040
Seat, Front Coil Spring, Upper Rh
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48044-02040 |
— | ||
|
48510
|
48510
48510-09710
Absorber Assy, Shock, Front Rh
[01.2002 - 06.2002] CDE120..UKP MARK 48510-02300 |
48510-09710 |
— | ||
| replacement | |||||
|
48510
|
48510
48510-09711
Absorber Assy, Shock, Front Rh
[01.2002 - 06.2002] CDE120..UKP MARK 48510-02300 |
48510-09711 |
— | ||
|
48510
|
48510
48510-09711
Absorber Assy, Shock, Front Rh
[06.2002 - 06.2004] CDE120..UKP MARK 48510-02301 |
48510-09711 |
— | ||
|
48520
|
48520
48520-09610
Absorber Assy, Shock, Front Lh
[01.2002 - 06.2002] CDE120..UKP MARK 48520-02300 |
48520-09610 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-09611
Absorber Assy, Shock, Front Lh
[01.2002 - 06.2002] CDE120..UKP MARK 48520-02300 |
48520-09611 |
— | ||
|
48520
|
48520
48520-09611
Absorber Assy, Shock, Front Lh
[06.2002 - 06.2004] CDE120..UKP MARK 48520-02301 |
48520-09611 |
— | ||
|
48603
|
48603
48609-02130
Support Sub-Assy, Front Suspension, Rh
[04.2002 - 06.2004] CDE120,ZZE12#..UKP |
48609-02130 |
— | ||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
90303-22002 |
from US $3.20 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
90179-14015 |
from US $1.09 |
||
|
48609
|
48609
48609-02130
Support Sub-Assy, Front Suspension, Rh
[04.2002 - 06.2004] CDE120,ZZE12#..UKP |
48609-02130 |
— | ||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
90303-22002 |
from US $3.20 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
90179-14015 |
from US $1.09 |
||
|
48684A
|
48684A
48684-05020
Cover, Front Suspension Support Dust, Rh
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48684-05020 |
— | ||
|
48684B
|
48684B
48684-05020
Cover, Front Suspension Support Dust, Rh
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48684-05020 |
— | ||
|
48810
|
48810
48820-32010 Link Assy, Front Stabilizer[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48820-32010 |
US $105.08 |
||
|
48811
|
48811
48811-02110
Bar, Stabilizer, Front
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48811-02110 |
— | ||
|
48811
|
48811
48811-02150
Bar, Stabilizer, Front
[01.2003 - 06.2004] CDE120,ZZE12#..UKP FRAME NO.=RXXXXXX |
48811-02150 |
— | ||
|
48815
|
48815
48815-02110 Bush(For Front Stabilizer Bar)[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48815-02110 |
from US $14.40 |
||
|
48820A
|
48820A
90179-10183 Nut(For Front Stabilizer Link)[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
90179-10183 |
from US $0.88 |
||
|
48820B
|
48820B
48820-32010 Link Assy, Front Stabilizer[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
48820-32010 |
US $105.08 |
||
|
48824A
|
48824A
48824-05020
Bracket, Front Stabilizer, No.1 Rh
[08.2003 - 06.2004] CDE120,ZZE12#..UKP |
48824-05020 |
— | ||
|
48824A
|
48824A
48824-12150 Bracket, Front Stabilizer, No.1 RhFRONT STABILIZER, NO.1 RH [01.2002 - 08.2003] CDE120,ZZE12#..UKP |
48824-12150 |
US $16.60 |
||
|
48829A
|
48829A
48824-05020
Bracket, Front Stabilizer, No.1 Rh
[08.2003 - 06.2004] CDE120,ZZE12#..UKP |
48824-05020 |
— | ||
|
48829A
|
48829A
48824-12150 Bracket, Front Stabilizer, No.1 RhFRONT STABILIZER, NO.1 RH [01.2002 - 08.2003] CDE120,ZZE12#..UKP |
48824-12150 |
US $16.60 |
||
|
90178W0034
|
90178W0034
90178-W0034
New Genuine Part
|
90178-W0034 |
— | ||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.28 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
US $2.24 |
||
