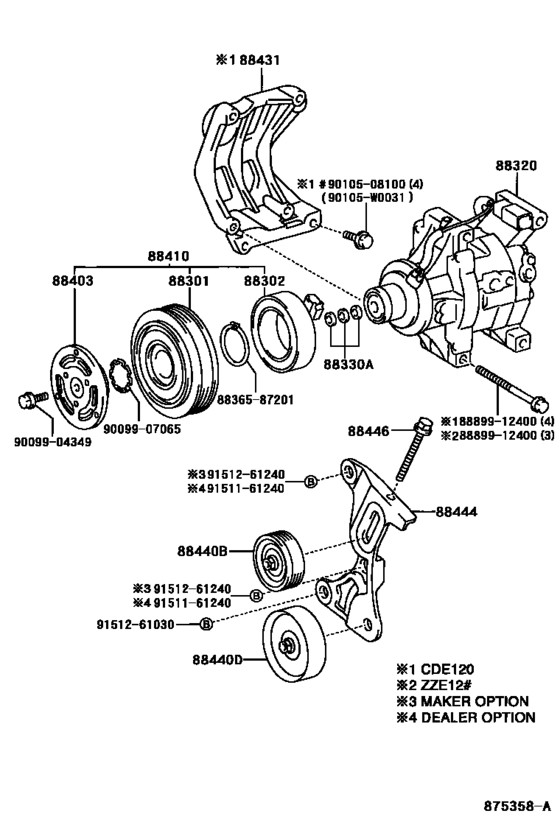

Heating & Air Conditioning - Compressor ([01.2002 - 06.2004] (0201-0406)UKP) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2002
- To
- 06.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-13010
Rotor Sub-Assy, Magnet Clutch
[01.2002 - 06.2004] CDE120..UKP |
88412-13010 |
— | ||
|
88302
|
88302
88411-1A050
Stator Sub-Assy, Magnet Clutch
[01.2002 - 06.2004] ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TE RRA; CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA |
88411-1A050 |
— | ||
|
88320
|
88320
88320-1A481 Compressor Assy, Cooler[01.2002 - 01.2003] CDE120,ZZE12#..UKP..(DCR,HTWC) |
88320-1A481 |
from US $1,037.09 |
||
|
88320
|
88320
88320-1A550
Compressor Assy, Cooler
[01.2003 - 06.2004] CDE120..UKP MAKER OPTION |
88320-1A550 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.2003 - 06.2004] CDE120..UKP |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-1A020
Hub Sub-Assy, Magnet Clutch
[01.2002 - 06.2004] ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TE RRA; CDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA |
88403-1A020 |
— | ||
|
88410
|
88410
88410-13010 Clutch Assy, MagnetMAGNET [01.2002 - 01.2003] CDE120..UKP |
88410-13010 |
US $349.44 |
||
|
88410
|
88410
88410-13020
Clutch Assy, Magnet
[01.2003 - 08.2003] CDE120..UKP MAKER OPTION |
88410-13020 |
— | ||
|
88410
|
88410
88410-13030
Clutch Assy, Magnet
[08.2003 - 06.2004] CDE120..UKP MAKER OPTION |
88410-13030 |
— | ||
|
88431
|
88431
88431-02070
Bracket, Compressor Mounting, No.1
[01.2002 - 06.2004] CDE120..UKP..DCR |
88431-02070 |
— | ||
|
88440B
|
88440B
88440-12230 Pulley, Cooler Compressor Idle[01.2002 - 06.2004] CDE120..UKP..DCR |
88440-12230 |
from US $81.54 |
||
|
88440D
|
88440D
88440-12250
Pulley Assy, Idle No.2
[01.2002 - 06.2004] CDE120..UKP..DCR |
88440-12250 |
— | ||
|
88444
|
88444
88444-12060
Bracket, Idle Pulley
[01.2002 - 06.2004] CDE120..UKP..DCR |
88444-12060 |
— | ||
|
88446
|
88446
88446-12030
Bolt, Idle Pulley
[01.2002 - 06.2004] CDE120..UKP..DCR |
88446-12030 |
— | ||
|
90105W0031
|
90105W0031
90105-W0031
New Genuine Part
|
90105-W0031 |
— | ||
|
8836587201
|
8836587201
88365-87201 Ring, Snap |
88365-87201 |
from US $1.75 |
||
|
8889912400
|
8889912400
88899-12400
Bolt, Compressor, No.1
|
88899-12400 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.29 |
||
|
9151161240
|
9151161240
91511-61240
New Genuine Part
|
91511-61240 |
— | ||
| replacement | |||||
|
9151161240
|
9151161240
90091-41202
New Genuine Part
|
90091-41202 |
— | ||
|
9151261030
|
9151261030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
|
9151261240
|
9151261240
91512-61240 New Genuine Part |
91512-61240 |
US $3.49 |
||
