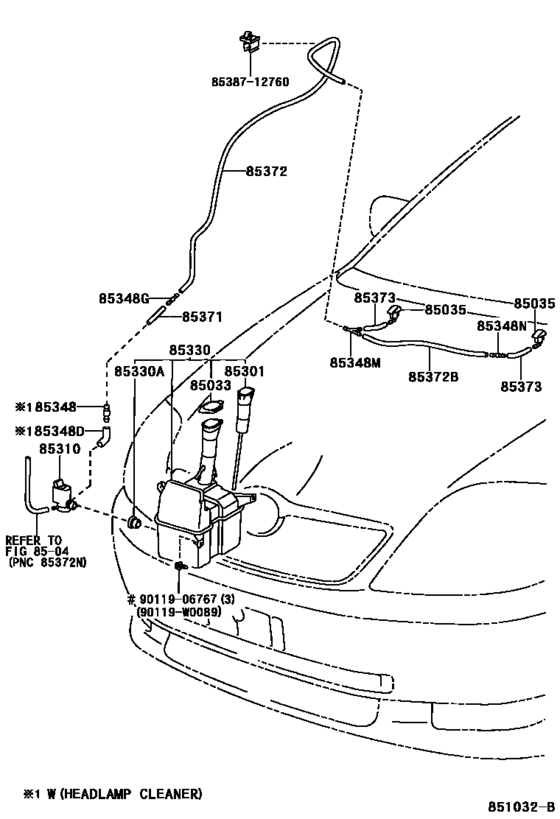

Windshield Washer ([01.2002 - 06.2004] (0201-0406)UKP) Diagram Toyota COROLLA
- Year
- 2002 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2002
- To
- 06.2004
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85033
|
85033
85316-02070
Cap Assy, Windshield Washer
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
85316-02070 |
— | ||
|
85033
|
85033
85316-42011 Cap, Washer, Inlet[01.2002 - 06.2004] CDE120,ZZE12#..UKP..LHD W(HEADLAMP CLEANER) |
85316-42011 |
from US $2.10 |
||
|
85035
|
85035
85381-44010 Nozzle Sub-Assy, Washer[01.2002 - 05.2004] CDE120,ZZE12#..UKP |
85381-44010 |
from US $11.27 |
||
|
85301
|
85301
85313-02010
Inlet Sub-Assy, Washer
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
85313-02010 |
— | ||
|
85301
|
85301
85318-13020
Inlet Sub-Assy, Washer
[01.2002 - 06.2004] CDE120,ZZE12#..UKP..LHD W(HEADLAMP CLEANER) |
85318-13020 |
— | ||
|
85310
|
85310
85330-44010
Motor And Pump Assy, Windshield Washer
[08.2002 - 06.2004] CDE120,ZZE12#..UKP..WG |
85330-44010 |
— | ||
|
85330
|
85330
85315-02070
Jar Assy, Windshield Washer
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
85315-02070 |
— | ||
|
85330
|
85330
85315-13020
Jar Assy, Windshield Washer
[01.2002 - 06.2004] CDE120,ZZE12#..UKP..LHD W(HEADLAMP CLEANER) |
85315-13020 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
90068-32002 |
US $7.46 |
||
|
85348
|
85348
85375-10260 Joint, Windshield Washer Hose, No.1[01.2002 - 06.2004] CDE120,ZZE12#..UKP..LHD |
85375-10260 |
from US $1.62 |
||
|
85348D
|
85348D
85355-16192
Joint, Windshield Washer Elbow, No.1
[01.2002 - 06.2004] CDE120,ZZE12#..UKP..LHD |
85355-16192 |
— | ||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
85349-89122 |
from US $1.25 |
||
|
85348M
|
85348M
85348-14390 Joint, Windshield Washer Hose, No.1[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
85348-14390 |
from US $1.40 |
||
|
85348N
|
85348N
85349-89122 Valve Sub-Assy, Washer[01.2002 - 06.2004] CDE120,ZZE12#..UKP |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2002 - 06.2004] CDE120,ZZE12#..UKP *H,L=50 |
90099-33080 |
from US $5.95 |
||
|
85372
|
85372
90099-33803 Hose, Windshield Washer (From Joint To Joint), No.1[01.2002 - 06.2004] CDE120,ZZE12#..UKP *H,L=1510 |
90099-33803 |
from US $8 |
||
|
85372B
|
85372B
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2002 - 06.2004] CDE120,ZZE12#..UKP *H,L=480 |
90099-33080 |
from US $5.95 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.2002 - 06.2004] CDE120,ZZE12#..UKP *H,L=90 |
90099-33080 |
from US $5.95 |
||
|
90119W0089
|
90119W0089
90119-W0089
New Genuine Part
|
90119-W0089 |
— | ||
|
8538712760
|
8538712760
85387-12760
Clamp No.1 (for Windseield Washer)
|
85387-12760 |
— | ||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
