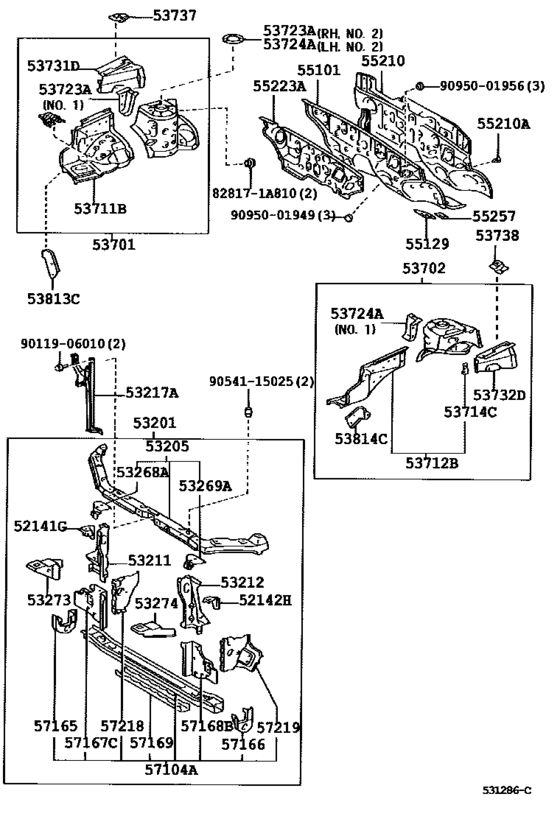

Front Fender Apron & Dash Panel ([05.2002 - ] (0205- )) Diagram Toyota COROLLA
- Year
- 2002 - 2008
- Sales region
- General
- Frame
- CDE120
- grade
- XEI
- body
- SED
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- DESTINATION
- BZ
- Model
- COROLLA (S.AMERICA)
- From
- 05.2002
- To
- 03.2008
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-12510
Stay, Front Bumper, Rh
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
52141-12510 |
— | ||
|
52142H
|
52142H
52142-12440
Stay, Front Bumper, Lh
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
52142-12440 |
— | ||
|
53201
|
53201
53201-1A300
Support Sub-Assy, Radiator
[05.2002 - 08.2004] CDE120 |
53201-1A300 |
— | ||
|
53205
|
53205
53216-02905
Support Sub-Assy, Radiator, Upper
[05.2002 - 07.2004] CDE120,ZZE12#..BZ |
53216-02905 |
— | ||
|
53211
|
53211
53211-12420
Support, Radiator, Rh
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53211-12420 |
— | ||
|
53212
|
53212
53212-12360
Support, Radiator, Lh
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53212-12360 |
— | ||
|
53217A
|
53217A
53208-12500
Brace, Hood Lock Support
[05.2002 - 05.2007] CDE120,ZZE12# |
53208-12500 |
— | ||
|
53268A
|
53268A
53268-12130 Reinforcement, Radiator Mounting, RhRADIATOR MOUNTING, RH [05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53268-12130 |
US $4.08 |
||
|
53269A
|
53269A
53269-12110 Reinforcement, Radiator Mounting, LhRADIATOR MOUNTING, LH [05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53269-12110 |
US $4.08 |
||
|
53273
|
53273
53273-12060 Bracket, Front Bumper Arm Mounting, RhFRONT BUMPER ARM MOUNTING, RH [05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53273-12060 |
from US $2.77 |
||
|
53274
|
53274
53274-12060 Bracket, Front Bumper Arm Mounting, LhFRONT BUMPER ARM MOUNTING, LH [05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53274-12060 |
US $2.77 |
||
|
53701
|
53701
53701-02901
Apron Sub-Assy, Front Fender, Rh
[05.2002 - 05.2007] CDE120,ZZE12# |
53701-02901 |
— | ||
|
53702
|
53702
53702-02900
Apron Sub-Assy, Front Fender, Lh
[08.2004 -] ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XE I,XLI)..SED..(DCR,HTWC) |
53702-02900 |
— | ||
|
53711B
|
53711B
53711-02904
Apron, Front Fender, Front Rh
[05.2002 - 05.2007] CDE120,ZZE12# |
53711-02904 |
— | ||
|
53711B
|
53711B
53711-12230
Apron, Front Fender, Front Rh
[05.2002 - 05.2007] CDE120,ZZE12# FOR SOUTH AFRICA |
53711-12230 |
— | ||
| replacements | |||||
|
53711B
|
53711B
53711-12910 Apron, Front Fender, Front Rh[05.2002 - 05.2007] CDE120,ZZE12# FOR SOUTH AFRICA |
53711-12910 |
from US $87.36 |
||
|
53711B
|
53711B
53813-12060 Extension, Front Fender, Rh[05.2002 - 05.2007] CDE120,ZZE12# FOR SOUTH AFRICA |
53813-12060 |
US $6.84 |
||
|
53712B
|
53712B
53712-02904
Apron, Front Fender, Front Lh
[05.2002 - 05.2007] CDE120,ZZE12# |
53712-02904 |
— | ||
|
53712B
|
53712B
53712-12190
Apron, Front Fender, Front Lh
[05.2002 - 05.2007] CDE120,ZZE12# FOR SOUTH AFRICA |
53712-12190 |
— | ||
|
53714C
|
53714C
53714-12150 Extension, Front Fender Apron, Front Lh[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53714-12150 |
US $4.80 |
||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[05.2002 - 05.2007] CDE120,ZZE12# NO.1 |
53723-12080 |
US $8.74 |
||
|
53723A
|
53723A
53723-12090 Reinforcement, Front Spring Support, RhFRONT SPRING SUPPORT, RH [05.2002 - 02.2007] CDE120,ZZE12# NO.2 |
53723-12090 |
US $19.51 |
||
| replacement | |||||
|
53723A
|
53723A
53723-12110 Reinforcement, Front Spring Support, No.2 Rh[05.2002 - 02.2007] CDE120,ZZE12# NO.2 |
53723-12110 |
US $21.14 |
||
|
53723A
|
53723A
53723-12091
Reinforcement, Front Spring Support, No.2 Rh
[03.2007 -] ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XE I,XLI)..SED..(DCR,HTWC) NO.2 |
53723-12091 |
— | ||
| replacement | |||||
|
53723A
|
53723A
53723-12110 Reinforcement, Front Spring Support, No.2 Rh[03.2007 -] ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XE I,XLI)..SED..(DCR,HTWC) NO.2 |
53723-12110 |
US $21.14 |
||
|
53724A
|
53724A
53723-12090 Reinforcement, Front Spring Support, RhFRONT SPRING SUPPORT, RH [05.2002 - 02.2007] CDE120,ZZE12# NO.2 |
53723-12090 |
US $19.51 |
||
| replacement | |||||
|
53724A
|
53724A
53723-12110 Reinforcement, Front Spring Support, No.2 Rh[05.2002 - 02.2007] CDE120,ZZE12# NO.2 |
53723-12110 |
US $21.14 |
||
|
53724A
|
53724A
53723-12091
Reinforcement, Front Spring Support, No.2 Rh
[03.2007 -] ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XE I,XLI)..SED..(DCR,HTWC) NO.2 |
53723-12091 |
— | ||
| replacement | |||||
|
53724A
|
53724A
53723-12110 Reinforcement, Front Spring Support, No.2 Rh[03.2007 -] ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XE I,XLI)..SED..(DCR,HTWC) NO.2 |
53723-12110 |
US $21.14 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[05.2002 - 05.2007] CDE120,ZZE12# NO.1 |
53724-12070 |
US $8.74 |
||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53731-12160 |
from US $20.09 |
||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53732-12140 |
US $20.09 |
||
|
53737
|
53737
53737-12060 Plate, Front Apron To Cowl Side Member, Rh[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53737-12060 |
US $6.70 |
||
|
53738
|
53738
53738-12030 Plate, Front Apron To Cowl Side Member, Lh[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53738-12030 |
US $6.70 |
||
|
53813C
|
53813C
53813-12090 Extension, Front Fender, RhFRONT FENDER, RH [05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53813-12090 |
US $8.74 |
||
|
53814C
|
53814C
53814-12040 Extension, Front Fender, LhFRONT FENDER, LH [05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
53814-12040 |
US $7.86 |
||
|
55101
|
55101
55101-02400
Panel Sub-Assy, Dash
[05.2002 - 08.2004] CDE120 |
55101-02400 |
— | ||
|
55129
|
55129
55129-32030 Cover, Dash Panel Hole[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) RH |
55129-32030 |
US $5.68 |
||
|
55129
|
55129
55139-32010 Cover, Dash Panel Hole[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) LH |
55139-32010 |
US $5.68 |
||
|
55210
|
55210
55210-02120
Insulator Assy, Dash Panel
[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
55210-02120 |
— | ||
|
55210A
|
55210A
90467-10005-C0 Clip[05.2002 - 05.2007] CDE120,ZZE12# BLACK,TRIM1# |
90467-10005-C0 |
from US $1.16 |
||
|
55223A
|
55223A
55223-02150
Insulator, Dash Panel, Outer
[05.2002 - 12.2005] ZZE122..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..(DCR,HTWC) |
55223-02150 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-02152
Insulator, Dash Panel, Outer
[05.2002 - 12.2005] ZZE122..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..(DCR,HTWC) |
55223-02152 |
— | ||
|
55223A
|
55223A
55223-02151
Insulator, Dash Panel, Outer
[01.2006 - 06.2006] ZZE122..ATM..SEG;CDE120,ZZE12#..(GLI,XEI,XLI)..SED |
55223-02151 |
— | ||
| replacement | |||||
|
55223A
|
55223A
55223-02152
Insulator, Dash Panel, Outer
[01.2006 - 06.2006] ZZE122..ATM..SEG;CDE120,ZZE12#..(GLI,XEI,XLI)..SED |
55223-02152 |
— | ||
|
55223A
|
55223A
55223-02152
Insulator, Dash Panel, Outer
[07.2006 -] ZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XE I,XLI)..SED..(DCR,HTWC) |
55223-02152 |
— | ||
|
55257
|
55257
55257-32010 Cover, Dash Panel Opening[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
55257-32010 |
US $2.91 |
||
|
57104A
|
57104A
57104-12220
Member Sub-Assy, Front Cross
[05.2002 - 08.2004] CDE120 |
57104-12220 |
— | ||
|
57165
|
57165
57165-12070 Reinforcement, Front Crossmember, Lower Rh[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
57165-12070 |
US $12.08 |
||
|
57166
|
57166
57166-12020 Reinforcement, Front Crossmember, Lower Lh[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
57166-12020 |
US $12.08 |
||
|
57167C
|
57167C
57167-12110 Gusset, Front Crossmember Side, Rh[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
57167-12110 |
US $26.21 |
||
|
57168B
|
57168B
57168-12110 Gusset, Front Crossmember Side, Lh[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
57168-12110 |
from US $23.59 |
||
|
57169
|
57169
57169-42030 Member, Front Floor, Front Rh[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
57169-42030 |
US $50.96 |
||
|
57218
|
57218
57218-13010 Gusset, Front Side Member, No.1FRONT SIDE MEMBER, NO.1 [05.2002 - 08.2004] CDE120 |
57218-13010 |
US $17.91 |
||
|
57219
|
57219
57219-12010 Gusset, Front Side Member, No.2[05.2002 - 08.2004] CDE120,ZZE12#..BZ..SED..(DCR,HTWC) |
57219-12010 |
US $11.21 |
||
|
828171A810
|
828171A810
82817-1A810 Grommet(For Front Fender Apron) |
82817-1A810 |
US $3.52 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.76 |
||
|
9054115025
|
9054115025
90541-15025 Cushion, Hood Bumper |
90541-15025 |
from US $2.96 |
||
|
9095001949
|
9095001949
90950-01949 PLUG HOLE |
90950-01949 |
US $1.60 |
||
|
9095001956
|
9095001956
90950-01956 PLUG HOLE |
90950-01956 |
from US $1.60 |
||
