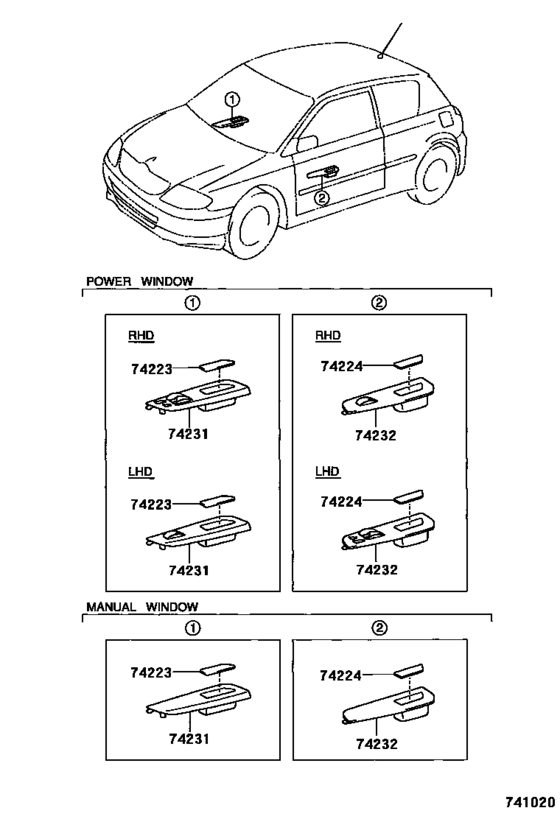

Armrest & Visor ([11.2001 - ] ARMREST (0111- )UKP..3D) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74223
|
74223
74223-02010
Cap, Door Armrest, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
74223-02010 |
— | ||
|
74224
|
74224
74224-02010
Cap, Door Armrest, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
74224-02010 |
— | ||
|
74231
|
74231
74231-02220-B0
Panel, Front Armrest Base, Upper Rh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..RHD..3D..TERRA W(POWER WINDOW),DK.GRAY,TRIM1# |
74231-02220-B0 |
— | ||
|
74231
|
74231
74231-02220-J0
Panel, Front Armrest Base, Upper Rh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..RHD..3D..TERRA W(POWER WINDOW),DK.BLUE,TRIM8# |
74231-02220-J0 |
— | ||
|
74231
|
74231
74231-02240-B0
Panel, Front Armrest Base, Upper Rh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..3D..TERRA DK.GRAY,TRIM1# |
74231-02240-B0 |
— | ||
|
74231
|
74231
74231-02240-J0
Panel, Front Armrest Base, Upper Rh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..3D..TERRA DK.BLUE,TRIM8# |
74231-02240-J0 |
— | ||
|
74232
|
74232
74232-02230-B0
Panel, Front Armrest Base, Upper Lh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..RHD..3D..TERRA W(POWER WINDOW),DK.GRAY,TRIM1# |
74232-02230-B0 |
— | ||
|
74232
|
74232
74232-02230-J0
Panel, Front Armrest Base, Upper Lh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..RHD..3D..TERRA W(POWER WINDOW),DK.BLUE,TRIM8# |
74232-02230-J0 |
— | ||
|
74232
|
74232
74232-02240-B0
Panel, Front Armrest Base, Upper Lh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..3D..TERRA DK.GRAY,TRIM1# |
74232-02240-B0 |
— | ||
|
74232
|
74232
74232-02240-J0
Panel, Front Armrest Base, Upper Lh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..3D..TERRA DK.BLUE,TRIM8# |
74232-02240-J0 |
— |
