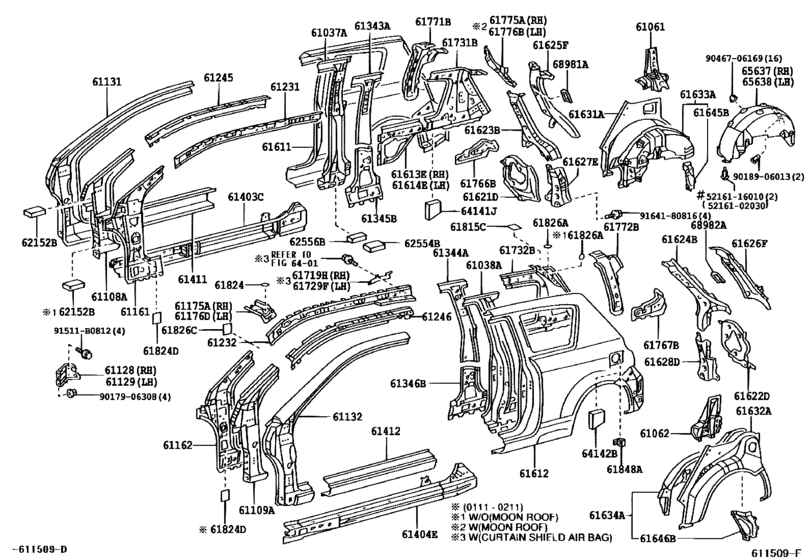

Side Member ([11.2001 - ] (0111- )UKP..3D) Diagram Toyota COROLLA
- Year
- 2003 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.2003
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61037A
|
61037A
61037-02070
Reinforcement Sub-Assy, Center Body Pillar, Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..3D |
61037-02070 |
— | ||
|
61038A
|
61038A
61038-02070
Reinforcement Sub-Assy, Center Body Pillar, Lh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..3D |
61038-02070 |
— | ||
|
61061
|
61061
61061-02010
Reinforcement Sub-Assy, Wheel House, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61061-02010 |
— | ||
|
61062
|
61062
61062-02010
Reinforcement Sub-Assy, Wheel House, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61062-02010 |
— | ||
|
61108A
|
61108A
61108-02060
Reinforce Sub-Assy, Front Body Pillar, Lower Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61108-02060 |
— | ||
|
61109A
|
61109A
61109-02060
Reinforce Sub-Assy, Front Body Pillar, Lower Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61109-02060 |
— | ||
|
61128
|
61128
61103-02020
Reinforcement, Cowl Side Panel, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61103-02020 |
— | ||
|
61129
|
61129
61104-02020
Reinforcement, Cowl Side Panel, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61104-02020 |
— | ||
|
61131
|
61131
61131-02060
Pillar, Front Body, Upper Outer Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61131-02060 |
— | ||
|
61132
|
61132
61132-02090
Pillar, Front Body, Upper Outer Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61132-02090 |
— | ||
|
61161
|
61161
61023-02121
Pillar, Front Body, Upper Inner Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
61023-02121 |
— | ||
|
61162
|
61162
61024-02111
Pillar, Front Body, Upper Inner Lh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
61024-02111 |
— | ||
|
61175A
|
61175A
61175-02060
Reinforcement, Front Pillar, Upper Outer No.2 Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61175-02060 |
— | ||
|
61176D
|
61176D
61176-02060
Reinforce, Front Body Pillar, Upper Out No.2 Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61176-02060 |
— | ||
|
61231
|
61231
61231-02061
Rail, Roof Side, Inner Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..3D |
61231-02061 |
— | ||
|
61232
|
61232
61232-02061
Rail, Roof Side, Inner Lh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..3D |
61232-02061 |
— | ||
|
61245
|
61245
61245-02030
Reinforcement, Roof Side Rail, Outer Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61245-02030 |
— | ||
|
61246
|
61246
61246-02030
Reinforcement, Roof Side Rail, Outer Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61246-02030 |
— | ||
|
61343A
|
61343A
61343-02060
Pillar, Center Body, Inner Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61343-02060 |
— | ||
|
61344A
|
61344A
61344-02060
Pillar, Center Body, Inner Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61344-02060 |
— | ||
|
61345B
|
61345B
61345-02021
Pillar, Center Body, Inner Lower Rh
[04.2003 - 05.2004] CDE120,ZZE12#..UKP..3D |
61345-02021 |
— | ||
|
61346B
|
61346B
61346-02021
Pillar, Center Body, Inner Lower Lh
[04.2003 - 05.2004] CDE120,ZZE12#..UKP..3D |
61346-02021 |
— | ||
|
61403C
|
61403C
61403-02010
Reinforce Sub-Assy, Rocker, Outer Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61403-02010 |
— | ||
|
61404E
|
61404E
61404-02010
Reinforce Sub-Assy, Rocker, Outer Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61404-02010 |
— | ||
|
61411
|
61411
61411-02060
Panel, Rocker, Outer Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61411-02060 |
— | ||
|
61412
|
61412
61412-02060
Panel, Rocker, Outer Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61412-02060 |
— | ||
|
61611
|
61611
61611-02110
Panel, Quarter, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61611-02110 |
— | ||
|
61612
|
61612
61612-02080
Panel, Quarter, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61612-02080 |
— | ||
|
61613E
|
61613E
61613-02010
Panel, Quarter, Inner Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61613-02010 |
— | ||
|
61614E
|
61614E
61614-02010
Panel, Quarter, Inner Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61614-02010 |
— | ||
|
61621D
|
61621D
61621-02070
Trough, Back Door Opening, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61621-02070 |
— | ||
| replacement | |||||
|
61621D
|
61621D
61621-02071
Trough, Back Door Opening, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61621-02071 |
— | ||
|
61622D
|
61622D
61622-02070
Trough, Back Door Opening, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61622-02070 |
— | ||
| replacement | |||||
|
61622D
|
61622D
61622-02071
Trough, Back Door Opening, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61622-02071 |
— | ||
|
61623B
|
61623B
61623-02020
Trough, Back Door Opening, Rear Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61623-02020 |
— | ||
|
61624B
|
61624B
61624-02020
Trough, Back Door Opening, Rear Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61624-02020 |
— | ||
|
61625F
|
61625F
61625-02020
Extension, Quarter Panel, Upper Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61625-02020 |
— | ||
|
61626F
|
61626F
61626-02020
Extension, Quarter Panel, Upper Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61626-02020 |
— | ||
|
61627E
|
61627E
61627-02030
Extension, Quarter Panel, Rear Lower Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61627-02030 |
— | ||
|
61628D
|
61628D
61628-02030
Extension, Quarter Panel, Rear Lower Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61628-02030 |
— | ||
|
61631A
|
61631A
61631-02060
Panel, Quarter Wheel House, Outer Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
61631-02060 |
— | ||
|
61632A
|
61632A
61632-02060
Panel, Quarter Wheel House, Outer Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
61632-02060 |
— | ||
|
61633A
|
61633A
61607-02925
Panel, Quarter Wheel House, Inner Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
61607-02925 |
— | ||
|
61634A
|
61634A
61608-02923
Panel, Quarter Wheel House, Inner Lh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
61608-02923 |
— | ||
|
61645B
|
61645B
61645-02040 Gusset, Quarter Wheel House, Rear Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61645-02040 |
US $26.21 |
||
|
61646B
|
61646B
61646-02040 Gusset, Quarter Wheel House, Rear Lh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61646-02040 |
US $26.21 |
||
|
61719H
|
61719H
61707-12060 Bracket Sub-Assy, Roof Side Rail, RhROOF SIDE RAIL, RH [01.2003 - 05.2004] CDE120,ZZE12#..UKP..3D |
61707-12060 |
US $8.15 |
||
|
61729F
|
61729F
61708-12050 Bracket Sub-Assy, Roof Side Rail, LhROOF SIDE RAIL, LH [01.2003 - 05.2004] CDE120,ZZE12#..UKP..3D |
61708-12050 |
US $8.15 |
||
|
61731B
|
61731B
61731-02071
Panel, Roof Side, Inner Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..3D |
61731-02071 |
— | ||
|
61732B
|
61732B
61732-02071
Panel, Roof Side, Inner Lh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..3D |
61732-02071 |
— | ||
|
61766B
|
61766B
61766-13080 Reinforcement, Belt Anchor To Roof Side, Inner Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61766-13080 |
US $35.67 |
||
|
61767B
|
61767B
61767-13070 Reinforcement, Belt Anchor To Roof Side, Inner Lh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61767-13070 |
US $35.67 |
||
|
61771B
|
61771B
61771-02020
Frame, Back Door Opening Upper Corner, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61771-02020 |
— | ||
|
61772B
|
61772B
61772-02020
Frame, Back Door Opening Upper Corner, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61772-02020 |
— | ||
|
61775A
|
61775A
61775-13020 Guide, Roof Side Drain Hose, No.1 RhROOF SIDE DRAIN HOSE, NO.1 RH [11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61775-13020 |
US $12.67 |
||
|
61776B
|
61776B
61776-13020 Guide, Roof Side Drain Hose, No.1 LhROOF SIDE DRAIN HOSE, NO.1 LH [11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
61776-13020 |
US $12.67 |
||
|
61815C
|
61815C
61815-02030 Plate, Noise Control, No.3[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61815-02030 |
US $9.61 |
||
|
61824
|
61824
61824-02040 Plate, Noise Control, No.1[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61824-02040 |
US $6.84 |
||
|
61824D
|
61824D
61824-02090
Pad, Noise Shutter, No.1
[11.2002 - 05.2004] CDE120,ZZE12#..UKP |
61824-02090 |
— | ||
|
61826A
|
61826A
61824-02040 Plate, Noise Control, No.1[11.2001 - 05.2004] CDE120,ZZE12#..UKP W(MOON ROOF) |
61824-02040 |
US $6.84 |
||
|
61826C
|
61826C
61826-12020 Pad, Noise Shutter, No.1[11.2001 - 01.2004] CDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC) |
61826-12020 |
US $2.04 |
||
|
61826C
|
61826C
61826-52020 Plate, Noise Control, No.3[01.2004 - 05.2004] CDE120,ZZE12#..UKP..3D |
61826-52020 |
US $4.22 |
||
|
61848A
|
61848A
61848-52010 Retainer, Quarter Panel, Lh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
61848-52010 |
US $3.68 |
||
|
62152B
|
62152B
62554-02050
Pad, Pillar, No.4
[11.2001 - 05.2004] CDE120,ZZE12#..UKP W(MOON ROOF) |
62554-02050 |
— | ||
| replacement | |||||
|
62152B
|
62152B
62554-02190
Pad, Pillar, No.4
[11.2001 - 05.2004] CDE120,ZZE12#..UKP W(MOON ROOF) |
62554-02190 |
— | ||
|
62554B
|
62554B
62554-02030
Pad, Pillar, No.4
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
62554-02030 |
— | ||
|
62556B
|
62556B
62556-02020
Pad, Pillar, No.6
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..3D |
62556-02020 |
— | ||
|
64141J
|
64141J
64141-02010
Silencer, Quater Panel, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
64141-02010 |
— | ||
|
64142B
|
64142B
64142-02010
Silencer, Quater Panel, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
64142-02010 |
— | ||
|
65637
|
65637
65637-02010
Liner, Rear Wheel House, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
65637-02010 |
— | ||
|
65638
|
65638
65638-02010
Liner, Rear Wheel House, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
65638-02010 |
— | ||
|
68981A
|
68981A
68981-13040 Retainer, Back Door Stay, Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68981-13040 |
US $6.41 |
||
|
68982A
|
68982A
68981-13040 Retainer, Back Door Stay, Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68981-13040 |
US $6.41 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
5216102030
|
5216102030
52161-02030 Piece, Rear BumperREAR BUMPER |
52161-02030 |
US $1.79 |
||
| replacement | |||||
|
5216102030
|
5216102030
52161-16010 Clip |
52161-16010 |
from US $1.68 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.68 |
||
|
9017906308
|
9017906308
90179-06308 NUT |
90179-06308 |
US $1.28 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.76 |
||
|
9046706169
|
9046706169
90467-06169 Clip |
90467-06169 |
from US $0.96 |
||
|
9164180816
|
9164180816
91641-80816 BOLT W/WASHER |
91641-80816 |
US $1.76 |
||
