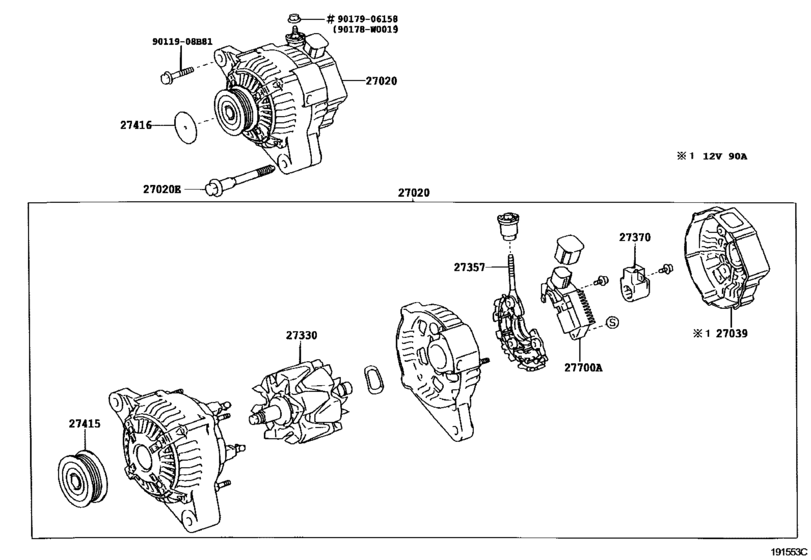

Alternator ([11.2001 - 05.2004] 12V 90A,130A (0111-0405)1CDFTV..UKP..DCR,HDCR) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-27070 Alternator Assy[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) 12V 130A |
27060-27070 |
US $2,009.28 |
||
|
27020E
|
27020E
90901-05004 Bolt(For Alternator)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90901-05004 |
US $8.15 |
||
|
27330
|
27330
27330-20130
Rotor Assy, Alternator
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) 12V 130A |
27330-20130 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-33090 Rotor Assy, Alternator[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) 12V 130A |
27330-33090 |
US $193.94 |
||
|
27357
|
27357
27357-20130
Holder, Alternator, W/rectifier
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) 12V 130A |
27357-20130 |
— | ||
|
27370
|
27370
27370-20130 Holder Assy, Alternator Brush[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) 12V 130A |
27370-20130 |
from US $17.84 |
||
|
27415
|
27415
27415-27011
Pulley, Alternator W/clutch
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) |
27415-27011 |
— | ||
|
27416
|
27416
27416-27010 Cap, Alternator Pulley[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
27416-27010 |
US $4.80 |
||
|
27700A
|
27700A
27700-27080 Regulator Assy, GeneratorGENERATOR [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) |
27700-27080 |
US $262.08 |
||
|
90178W0019
|
90178W0019
90178-W0019
Nut, Cap(For Cylinder Head Cover)
|
90178-W0019 |
— | ||
|
9011908B81
|
9011908B81
90119-08B81 New Genuine Part |
90119-08B81 |
US $1.49 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
