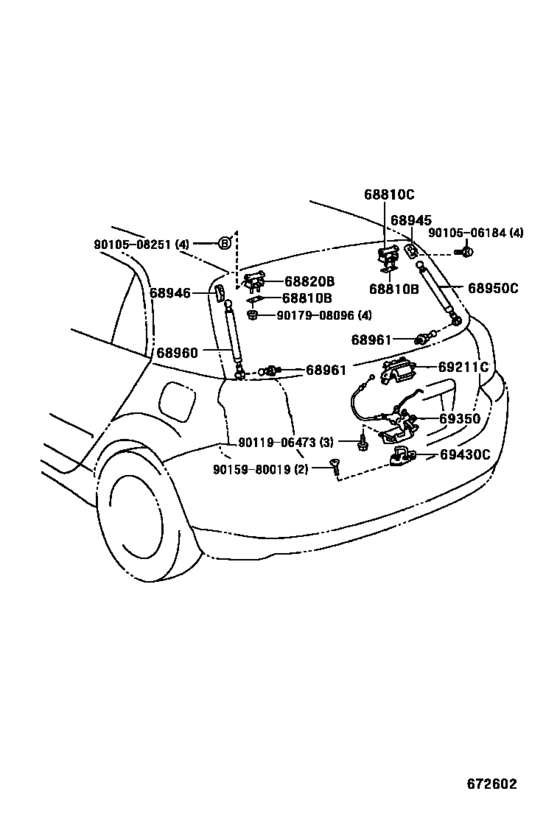

Back Door Lock & Handle ([11.2001 - ] (0111- )UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68810B
|
68810B
68838-05020 Pad, Back Door Hinge, No.1[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68838-05020 |
US $0.87 |
||
| replacement | |||||
|
68810B
|
68810B
68838-44020 Pad, Back Door Hinge, No.1[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68838-44020 |
US $2.88 |
||
|
68810C
|
68810C
68810-05010
Hinge Assy, Back Door, Upper
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
68810-05010 |
— | ||
| replacement | |||||
|
68810C
|
68810C
68810-21051 Hinge Assy, Back Door, Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
68810-21051 |
from US $20.82 |
||
|
68820B
|
68820B
68810-05010
Hinge Assy, Back Door, Upper
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
68810-05010 |
— | ||
| replacement | |||||
|
68820B
|
68820B
68810-21051 Hinge Assy, Back Door, Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC) |
68810-21051 |
from US $20.82 |
||
|
68945
|
68945
68945-02010
Bracket, Back Door Damper Stay, Upper Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68945-02010 |
— | ||
|
68946
|
68946
68945-02010
Bracket, Back Door Damper Stay, Upper Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68945-02010 |
— | ||
|
68950C
|
68950C
68950-02040
Stay Assy, Back Door, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68950-02040 |
— | ||
| replacement | |||||
|
68950C
|
68950C
68950-02042
Stay Assy, Back Door, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68950-02042 |
— | ||
|
68960
|
68960
68960-02030
Stay Assy, Back Door, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68960-02030 |
— | ||
| replacement | |||||
|
68960
|
68960
68960-02032
Stay Assy, Back Door, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68960-02032 |
— | ||
|
68961
|
68961
68961-02020
Bolt, Back Door Stay
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68961-02020 |
— | ||
| replacement | |||||
|
68961
|
68961
68961-05010 Bolt, Back Door Stay[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
68961-05010 |
US $3.84 |
||
|
69211C
|
69211C
69023-02010
Handle, Back Door Outside
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
69023-02010 |
— | ||
|
69350
|
69350
69350-02030
Lock Assy, Back Door
[01.2003 - 05.2004] CDE120,ZZE120,121..UKP..TERRA |
69350-02030 |
— | ||
|
69350
|
69350
69350-02040
Lock Assy, Back Door
[01.2003 - 05.2004] CDE120,ZZE12#..UKP W(POWER DOOR LOCK) |
69350-02040 |
— | ||
| replacement | |||||
|
69350
|
69350
69350-02041
Lock Assy, Back Door
[01.2003 - 05.2004] CDE120,ZZE12#..UKP W(POWER DOOR LOCK) |
69350-02041 |
— | ||
|
69350
|
69350
69350-13290
Lock Assy, Back Door
[11.2001 - 01.2003] CDE120,ZZE120,121..UKP..TERRA |
69350-13290 |
— | ||
|
69350
|
69350
69350-13300 Lock Assy, Back Door[11.2001 - 01.2003] CDE120,ZZE12#..UKP W(POWER DOOR LOCK) |
69350-13300 |
US $234.12 |
||
|
69430C
|
69430C
69430-0D010
Striker Assy, Back Door Lock
[01.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
69430-0D010 |
— | ||
|
69430C
|
69430C
69430-52020 Striker Assy, Back Door Lower Lock[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
69430-52020 |
US $14.24 |
||
|
9010506184
|
9010506184
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.12 |
||
|
9010508251
|
9010508251
90105-08251 New Genuine Part |
90105-08251 |
US $2.56 |
||
|
9011906473
|
9011906473
90119-06473 BOLTWWASHER |
90119-06473 |
US $1.12 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.60 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.46 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
