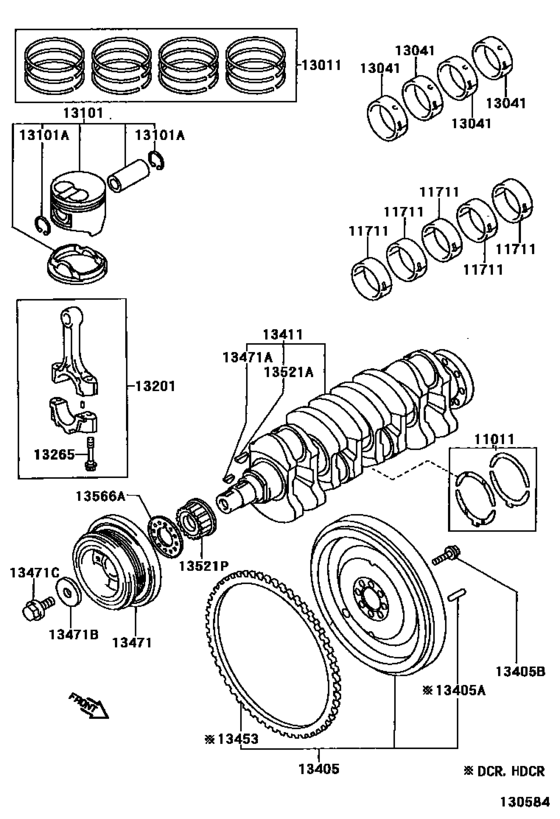

Crankshaft & Piston ([11.2001 - ] (0111- )1CDFTV..UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-64010 Washer Set, Crankshaft Thrust[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) STD |
11011-64010 |
US $32.15 |
||
|
11011
|
11011
11012-64010 Washer Set, Crankshaft Thrust[11.2001 - 05.2004] 1CDFTV..CDE120..UKP O/S 0.125 |
11012-64010 |
US $25.92 |
||
|
11011
|
11011
11013-64010 Washer Set, Crankshaft Thrust[11.2001 - 05.2004] 1CDFTV..CDE120..UKP O/S 0.250 |
11013-64010 |
US $25.92 |
||
|
11711
|
11711
11701-0G010-01
Bearing, Crankshaft
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 1,(L):REFER R/M |
11701-0G010-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-01 Bearing, CrankshaftCRANKSHAFT [01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 1,(L):REFER R/M |
11701-27021-01 |
US $48.78 |
||
|
11711
|
11711
11701-0G010-02
Bearing, Crankshaft
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 2,(L):REFER R/M |
11701-0G010-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-02
Bearing, Crankshaft
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 2,(L):REFER R/M |
11701-27021-02 |
— | ||
|
11711
|
11711
11701-0G010-03
Bearing, Crankshaft
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 3,(L):REFER R/M |
11701-0G010-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-03 Bearing, CrankshaftCRANKSHAFT [01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 3,(L):REFER R/M |
11701-27021-03 |
US $48.63 |
||
|
11711
|
11711
11701-0G010-04
Bearing, Crankshaft
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 4,(L):REFER R/M |
11701-0G010-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-04 Bearing, CrankshaftCRANKSHAFT [01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 4,(L):REFER R/M |
11701-27021-04 |
US $48.63 |
||
|
11711
|
11711
11701-0G010-05
Bearing, Crankshaft
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 5,(L):REFER R/M |
11701-0G010-05 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-05 Bearing, CrankshaftCRANKSHAFT [01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 5,(L):REFER R/M |
11701-27021-05 |
US $48.63 |
||
|
11711
|
11711
11701-27020-01
Bearing, Crankshaft
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
11701-27020-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-27021-01 Bearing, CrankshaftCRANKSHAFT [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
11701-27021-01 |
US $48.78 |
||
|
11711
|
11711
11701-27020-02 Bearing, CrankshaftCRANKSHAFT [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
11701-27020-02 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-27021-02
Bearing, Crankshaft
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
11701-27021-02 |
— | ||
|
11711
|
11711
11701-27020-03 Bearing, CrankshaftCRANKSHAFT [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
11701-27020-03 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-27021-03 Bearing, CrankshaftCRANKSHAFT [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
11701-27021-03 |
US $48.63 |
||
|
11711
|
11711
11701-27020-04 Bearing, CrankshaftCRANKSHAFT [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
11701-27020-04 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-27021-04 Bearing, CrankshaftCRANKSHAFT [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
11701-27021-04 |
US $48.63 |
||
|
11711
|
11711
11701-27020-05 Bearing, CrankshaftCRANKSHAFT [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
11701-27020-05 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-27021-05 Bearing, CrankshaftCRANKSHAFT [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
11701-27021-05 |
US $48.63 |
||
|
13011
|
13011
13011-27030 Ring Set, PistonPISTON [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) STD,ENGINE NO.=0XXXXXX-9XXXXXX |
13011-27030 |
US $266.60 |
||
|
13011
|
13011
13011-27040 Ring Set, PistonPISTON [03.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) STD,ENGINE NO.=U000297- |
13011-27040 |
from US $244.34 |
||
|
13041
|
13041
13041-0G010-01
Bearing, Connecting Rod
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 1,(L):REFER R/M |
13041-0G010-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-27010-01
Bearing, Connecting Rod
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 1,(L):REFER R/M |
13041-27010-01 |
— | ||
|
13041
|
13041
13041-0G010-02
Bearing, Connecting Rod
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 2,(L):REFER R/M |
13041-0G010-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-27010-02 Bearing, Connecting RodCONNECTING ROD [01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 2,(L):REFER R/M |
13041-27010-02 |
US $17.34 |
||
|
13041
|
13041
13041-0G010-03
Bearing, Connecting Rod
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 3,(L):REFER R/M |
13041-0G010-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-27010-03
Bearing, Connecting Rod
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 3,(L):REFER R/M |
13041-27010-03 |
— | ||
|
13041
|
13041
13041-0G010-04
Bearing, Connecting Rod
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 4,(L):REFER R/M |
13041-0G010-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-27010-04
Bearing, Connecting Rod
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 4,(L):REFER R/M |
13041-27010-04 |
— | ||
|
13041
|
13041
13041-0G010-05
Bearing, Connecting Rod
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 5,(L):REFER R/M |
13041-0G010-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-27010-05 Bearing, Connecting RodCONNECTING ROD [01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) MARK 5,(L):REFER R/M |
13041-27010-05 |
US $32.03 |
||
|
13041
|
13041
13041-27010-01
Bearing, Connecting Rod
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 1,REFER REPAIR MANUAL |
13041-27010-01 |
— | ||
|
13041
|
13041
13041-27010-02 Bearing, Connecting RodCONNECTING ROD [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 2,REFER REPAIR MANUAL |
13041-27010-02 |
US $17.34 |
||
|
13041
|
13041
13041-27010-03
Bearing, Connecting Rod
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 3,REFER REPAIR MANUAL |
13041-27010-03 |
— | ||
|
13041
|
13041
13041-27010-04
Bearing, Connecting Rod
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 4,REFER REPAIR MANUAL |
13041-27010-04 |
— | ||
|
13041
|
13041
13041-27010-05 Bearing, Connecting RodCONNECTING ROD [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) MARK 5,REFER REPAIR MANUAL |
13041-27010-05 |
US $32.03 |
||
|
13101
|
13101
13101-27051-A0
Piston Sub-Assy, W/pin
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) STD,MARK A,REFER REPAIR MANUAL |
13101-27051-A0 |
— | ||
|
13101
|
13101
13101-27051-B0
Piston Sub-Assy, W/pin
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) STD,MARK B,REFER REPAIR MANUAL |
13101-27051-B0 |
— | ||
|
13101
|
13101
13101-27051-C0 Piston Sub-Assy, W/pinW/PIN [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) STD,MARK C,REFER REPAIR MANUAL |
13101-27051-C0 |
US $165.98 |
||
|
13101
|
13101
13101-27070
Piston Sub-Assy, W/pin
[11.2002 - 05.2004] 1CDFTV..CDE120..UKP..DCR STD |
13101-27070 |
— | ||
|
13101A
|
13101A
90520-32013 Ring, Hole Snap(For Piston Pin)HOLE SNAP(FOR PISTON PIN) [11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90520-32013 |
US $0.29 |
||
|
13201
|
13201
13201-27011-A0 Rod Sub-Assy, ConnectingCONNECTING [11.2001 - 05.2004] 1CDFTV..CDE120..UKP MARK A,REFER REPAIR MANUAL |
13201-27011-A0 |
US $189.28 |
||
|
13201
|
13201
13201-27011-B0
Rod Sub-Assy, Connecting
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP MARK B,REFER REPAIR MANUAL |
13201-27011-B0 |
— | ||
|
13201
|
13201
13201-27011-C0 Rod Sub-Assy, ConnectingCONNECTING [11.2001 - 05.2004] 1CDFTV..CDE120..UKP MARK C,REFER REPAIR MANUAL |
13201-27011-C0 |
US $189.28 |
||
|
13265
|
13265
13265-46020 Bolt, Connecting Rod[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
13265-46020 |
from US $4.43 |
||
|
13405
|
13405
13405-27010 Flywheel Sub-Assy[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) |
13405-27010 |
from US $637.73 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) L=23,OD=8; 2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP..MTM L=23,OD=8 |
90250-08054 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10071 Bolt, Flywheel Setting[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) |
90105-10071 |
US $6.08 |
||
|
13411
|
13411
13401-27011
Crankshaft
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
13401-27011 |
— | ||
|
13453
|
13453
13453-64050 Gear, Flywheel Ring[11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) |
13453-64050 |
US $107.74 |
||
|
13471
|
13471
13470-0G010
Pulley, Crankshaft
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) (L) |
13470-0G010 |
— | ||
|
13471
|
13471
13470-27010 Pulley, CrankshaftCRANKSHAFT [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) |
13470-27010 |
US $405.15 |
||
|
13471A
|
13471A
90280-05007 Key, Crankshaft(For Crankshaft Pulley Set)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90280-05007 |
from US $0.88 |
||
|
13471B
|
13471B
90560-16026 Washer, Plate(For Crankshaft Pulley Set)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90560-16026 |
US $9.17 |
||
|
13471C
|
13471C
90105-16065
Bolt(For Crankshaft Pulley Set)
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90105-16065 |
— | ||
|
13521A
|
13521A
90280-06001 Key(For Crankshaft Timing Gear)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90280-06001 |
from US $1.66 |
||
|
13521P
|
13521P
13521-27010 Pulley, Crankshaft TimingCRANKSHAFT TIMING [11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
13521-27010 |
US $51.98 |
||
|
13566A
|
13566A
13566-64011 Guide, Timing Belt[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
13566-64011 |
from US $3.82 |
||
