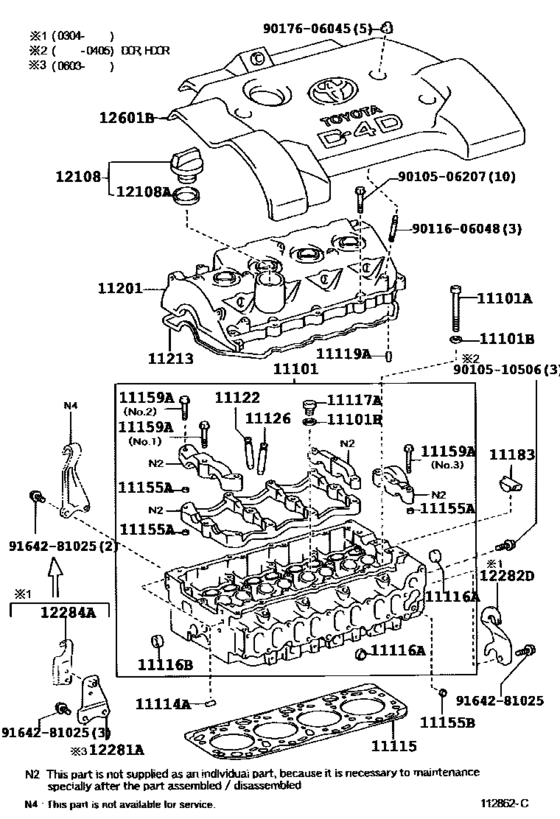

Cylinder Head ([11.2001 - ] (0111- )1CDFTV..UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-27033 Head Sub-Assy, CylinderCYLINDER [11.2001 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) |
11101-27033 |
US $1,601.60 |
||
|
11101A
|
11101A
90910-02136
Bolt(For Cylinder Head Set)
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP *11-1.25PX160-60 |
90910-02136 |
— | ||
|
11101A
|
11101A
90910-02139 Bolt(For Cylinder Head Set)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP *11-1.25PX104-63 |
90910-02139 |
from US $5.53 |
||
|
11101B
|
11101B
90201-11016 Washer, Plate(For Cylinder Head Set)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90201-11016 |
US $2.80 |
||
|
11101H
|
11101H
90430-14008 Gasket(For Water Hole)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90430-14008 |
from US $1.01 |
||
|
11114A
|
11114A
90250-06068 Pin, Straight[11.2001 - 05.2004] 1CDFTV..CDE120..UKP L=11,OD=6 |
90250-06068 |
from US $1.05 |
||
|
11115
|
11115
11115-27010-A0 Gasket, Cylinder HeadCYLINDER HEAD [11.2001 - 12.2002] 1CDFTV..CDE120..UKP MARK A |
11115-27010-A0 |
US $94.64 |
||
| replacement | |||||
|
11115
|
11115
11115-27011-A0 Gasket, Cylinder HeadCYLINDER HEAD [11.2001 - 12.2002] 1CDFTV..CDE120..UKP MARK A |
11115-27011-A0 |
US $94.64 |
||
|
11115
|
11115
11115-27010-B0 Gasket, Cylinder HeadCYLINDER HEAD [11.2001 - 12.2002] 1CDFTV..CDE120..UKP MARK B |
11115-27010-B0 |
US $94.64 |
||
| replacement | |||||
|
11115
|
11115
11115-27011-B0 Gasket, Cylinder HeadCYLINDER HEAD [11.2001 - 12.2002] 1CDFTV..CDE120..UKP MARK B |
11115-27011-B0 |
from US $69.85 |
||
|
11115
|
11115
11115-27010-C0 Gasket, Cylinder HeadCYLINDER HEAD [11.2001 - 12.2002] 1CDFTV..CDE120..UKP MARK C |
11115-27010-C0 |
US $94.64 |
||
| replacement | |||||
|
11115
|
11115
11115-27011-C0 Gasket, Cylinder HeadCYLINDER HEAD [11.2001 - 12.2002] 1CDFTV..CDE120..UKP MARK C |
11115-27011-C0 |
US $94.64 |
||
|
11115
|
11115
11115-27010-D0 Gasket, Cylinder HeadCYLINDER HEAD [11.2001 - 12.2002] 1CDFTV..CDE120..UKP MARK D |
11115-27010-D0 |
US $94.64 |
||
| replacement | |||||
|
11115
|
11115
11115-27011-D0 Gasket, Cylinder HeadCYLINDER HEAD [11.2001 - 12.2002] 1CDFTV..CDE120..UKP MARK D |
11115-27011-D0 |
US $94.64 |
||
|
11115
|
11115
11115-27010-E0 Gasket, Cylinder HeadCYLINDER HEAD [11.2001 - 12.2002] 1CDFTV..CDE120..UKP MARK E |
11115-27010-E0 |
US $94.64 |
||
| replacement | |||||
|
11115
|
11115
11115-27011-E0 Gasket, Cylinder HeadCYLINDER HEAD [11.2001 - 12.2002] 1CDFTV..CDE120..UKP MARK E |
11115-27011-E0 |
US $77.65 |
||
|
11115
|
11115
11115-27011-A0 Gasket, Cylinder HeadCYLINDER HEAD [12.2002 - 05.2004] 1CDFTV..CDE120..UKP MARK A |
11115-27011-A0 |
US $94.64 |
||
|
11115
|
11115
11115-27011-B0 Gasket, Cylinder HeadCYLINDER HEAD [12.2002 - 05.2004] 1CDFTV..CDE120..UKP MARK B |
11115-27011-B0 |
from US $69.85 |
||
|
11115
|
11115
11115-27011-C0 Gasket, Cylinder HeadCYLINDER HEAD [12.2002 - 05.2004] 1CDFTV..CDE120..UKP MARK C |
11115-27011-C0 |
US $94.64 |
||
|
11115
|
11115
11115-27011-D0 Gasket, Cylinder HeadCYLINDER HEAD [12.2002 - 05.2004] 1CDFTV..CDE120..UKP MARK D |
11115-27011-D0 |
US $94.64 |
||
|
11115
|
11115
11115-27011-E0 Gasket, Cylinder HeadCYLINDER HEAD [12.2002 - 05.2004] 1CDFTV..CDE120..UKP MARK E |
11115-27011-E0 |
US $77.65 |
||
|
11116A
|
11116A
96411-62000 Plug, Tight[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) |
96411-62000 |
from US $2.97 |
||
|
11116B
|
11116B
96411-63000 Plug, Tight[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) |
96411-63000 |
from US $3.36 |
||
|
11117A
|
11117A
90341-14008 Plug, W/head Taper Screw, No.1[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90341-14008 |
US $1.75 |
||
|
11119A
|
11119A
90250-06013 Pin, Straight, No.1[11.2001 - 05.2004] 1CDFTV..CDE120..UKP L=16,OD=6 |
90250-06013 |
US $0.61 |
||
|
11122
|
11122
11122-27010 Bush, Intake Valve GuideINTAKE VALVE GUIDE [11.2001 - 05.2004] 1CDFTV..CDE120..UKP STD |
11122-27010 |
US $12.08 |
||
|
11122
|
11122
11123-27010 Bush, Intake Valve GuideINTAKE VALVE GUIDE [11.2001 - 05.2004] 1CDFTV..CDE120..UKP O/S 0.05 |
11123-27010 |
US $12.08 |
||
|
11126
|
11126
11122-27010 Bush, Intake Valve GuideINTAKE VALVE GUIDE [11.2001 - 05.2004] 1CDFTV..CDE120..UKP STD |
11122-27010 |
US $12.08 |
||
|
11126
|
11126
11123-27010 Bush, Intake Valve GuideINTAKE VALVE GUIDE [11.2001 - 05.2004] 1CDFTV..CDE120..UKP O/S 0.05 |
11123-27010 |
US $12.08 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90253-11021 |
from US $1.50 |
||
|
11155B
|
11155B
90253-13008 Pin, Ring(For Crankshaft Bearing Cap Set)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90253-13008 |
US $2.04 |
||
|
11159A
|
11159A
90119-08B76 Bolt(For Head To Camshaft Bearing Cap)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP NO.1 |
90119-08B76 |
US $2.18 |
||
|
11159A
|
11159A
91511-80860 Bolt(For Transaxle Case & Transmission Case Setting)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP NO.2 |
91511-80860 |
US $1.27 |
||
|
11159A
|
11159A
91511-C0835 Bolt(For Transaxle Case & Engine Setting)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP NO.3 |
91511-C0835 |
from US $1.03 |
||
|
11183
|
11183
11183-64010 Plug, Semicircular[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
11183-64010 |
from US $8.35 |
||
|
11201
|
11201
11201-27030
Cover Sub-Assy, Cylinder Head
[11.2001 - 08.2002] 1CDFTV..CDE120..UKP |
11201-27030 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-27031
Cover Sub-Assy, Cylinder Head
[11.2001 - 08.2002] 1CDFTV..CDE120..UKP |
11201-27031 |
— | ||
|
11201
|
11201
11201-27031
Cover Sub-Assy, Cylinder Head
[08.2002 - 05.2004] 1CDFTV..CDE120..UKP |
11201-27031 |
— | ||
|
11213
|
11213
11213-0G010
Gasket, Cylinder Head Cover
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) (L) |
11213-0G010 |
— | ||
|
11213
|
11213
11213-27010 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [11.2001 - 12.2003] 1CDFTV..CDE120..UKP..(DCR,HDCR) |
11213-27010 |
US $22.04 |
||
|
12108
|
12108
12180-0N010
Cap Sub-Assy, Oil Filler
[01.2003 - 05.2004] 3ZZFE,4ZZFE..ZZE120,121..UKP (L); 1CDFTV..CDE120..UKP..(DCR,DCRL) (L) |
12180-0N010 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-21010 Cap Sub-Assy, Oil Filler[01.2003 - 05.2004] 3ZZFE,4ZZFE..ZZE120,121..UKP (L); 1CDFTV..CDE120..UKP..(DCR,DCRL) (L) |
12180-21010 |
from US $12.52 |
||
|
12108
|
12108
12180-21010 Cap Sub-Assy, Oil Filler[11.2001 - 12.2003] 1CDFTV..CDE120..UKP..(DCR,HDCR) |
12180-21010 |
from US $12.52 |
||
|
12108A
|
12108A
90080-43020
Gasket(For Oil Filler Cap)
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) (L) |
90080-43020 |
— | ||
| replacement | |||||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,DCRL) (L) |
90430-37140 |
from US $1.25 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[11.2001 - 12.2003] 1CDFTV..CDE120..UKP..(DCR,HDCR) |
90430-37140 |
from US $1.25 |
||
|
12601B
|
12601B
12611-0G030
Cover Sub-Assy, Engine, No.1
[01.2003 - 05.2004] 1CDFTV..CDE120..UKP..(DCR,HDCR) (L) |
12611-0G030 |
— | ||
|
12601B
|
12601B
12611-27070
Cover Sub-Assy, Engine, No.1
[11.2001 - 01.2003] 1CDFTV..CDE120..UKP |
12611-27070 |
— | ||
|
9010506207
|
9010506207
90105-06207 New Genuine Part |
90105-06207 |
US $1.75 |
||
|
9010510506
|
9010510506
90105-10506 New Genuine Part |
90105-10506 |
US $1.75 |
||
|
9011606048
|
9011606048
90116-06048 Bolt, Stud(For Oil Pan) |
90116-06048 |
from US $0.72 |
||
|
9017606045
|
9017606045
90176-06045 NUT, CAP CYL HEAD COVER |
90176-06045 |
from US $0.82 |
||
|
9164281025
|
9164281025
91642-81025 BOLT WWASHER |
91642-81025 |
from US $1.01 |
||
