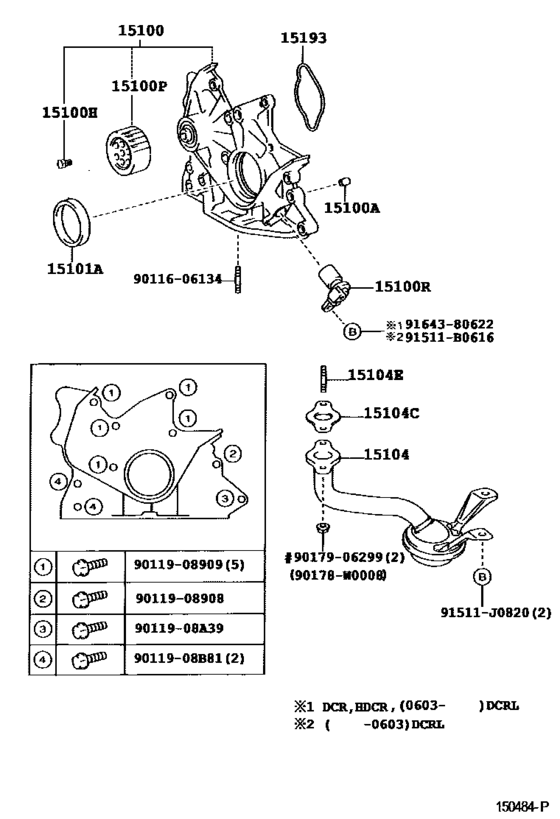

Engine Oil Pump ([11.2001 - ] (0111- )1CDFTV..UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-27030 Pump Assy, OilOIL [11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
15100-27030 |
US $177.26 |
||
|
15100A
|
15100A
90253-11021 Pin, Ring[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90253-11021 |
from US $1.50 |
||
|
15100P
|
15100P
13524-64020 Pulley, Oil Pump Drive Shaft[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
13524-64020 |
US $19.04 |
||
|
15100R
|
15100R
90919-05042 Sensor, Crank PositionCRANK POSITION [11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90919-05042 |
US $82.99 |
||
|
15101A
|
15101A
90311-45017 Seal(For Crankshaft)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90311-45017 |
US $8.32 |
||
|
15104
|
15104
15104-27060
Strainer Sub-Assy, Oil
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
15104-27060 |
— | ||
|
15104C
|
15104C
15149-27010 Gasket(For Oil Strainer)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
15149-27010 |
US $5.77 |
||
|
15104E
|
15104E
90116-06132 Bolt, Stud(For Oil Strainer)[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
90116-06132 |
US $1.05 |
||
|
15193
|
15193
15193-27010 Gasket, Oil PumpOIL PUMP [11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
15193-27010 |
US $8.80 |
||
|
90178W0008
|
90178W0008
90178-W0008
New Genuine Part
|
90178-W0008 |
— | ||
|
91511B0616
|
91511B0616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $0.96 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 BOLT, FLANGE |
90080-10164 |
US $2.67 |
||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9011908A39
|
9011908A39
90119-08A39 BOLT WWASHER |
90119-08A39 |
US $1.28 |
||
|
9011908B81
|
9011908B81
90119-08B81 New Genuine Part |
90119-08B81 |
US $1.49 |
||
|
9011606134
|
9011606134
90116-06134 Bolt, Stud(For Timing Gear Cover) |
90116-06134 |
from US $0.96 |
||
|
9011908908
|
9011908908
90119-08908 BOLT WWASHER |
90119-08908 |
US $1.22 |
||
|
9011908909
|
9011908909
90119-08909 New Genuine Part |
90119-08909 |
US $1.22 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9164380622
|
9164380622
91643-80622 New Genuine Part |
91643-80622 |
US $1.46 |
||
