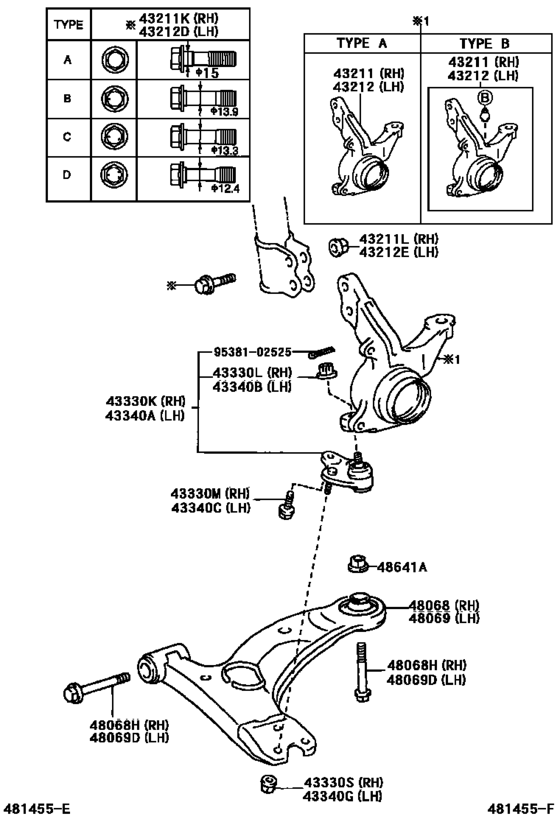

Front Axle Arm & Steering Knuckle ([11.2001 - ] (0111- )UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-02080
Knuckle, Steering, Rh
[11.2001 - 12.2001] CDE120,ZZE12#..UKP TYPE A:REFER TO ILLUSTRATION |
43211-02080 |
— | ||
|
43211
|
43211
43211-19015 Knuckle, Steering, Rh[12.2001 - 05.2004] CDE120,ZZE12#..UKP TYPE B:REFER TO ILLUSTRATION |
43211-19015 |
from US $148.22 |
||
|
43211K
|
43211K
90105-15001 Bolt (For Rear Axle Carrier)[11.2001 - 05.2003] CDE120,ZZE12#..UKP OD=15.0,TYPE A:REFER ILLUST. |
90105-15001 |
US $6.56 |
||
|
43211K
|
43211K
90105-15004 Bolt (For Steering Knuckle Rh)[11.2001 - 05.2004] CDE120,ZZE12#..UKP OD=13.9,TYPE B:REFER ILLUST. |
90105-15004 |
from US $3.12 |
||
|
43211K
|
43211K
90105-15005 Bolt (For Steering Knuckle Rh)[11.2001 - 05.2004] CDE120,ZZE12#..UKP OD=13.3,TYPE C:REFER ILLUST. |
90105-15005 |
from US $2.38 |
||
|
43211K
|
43211K
90105-15006 Bolt (For Steering Knuckle Rh)[11.2001 - 05.2004] CDE120,ZZE12#..UKP OD=12.4,TYPE D:REFER ILLUST. |
90105-15006 |
from US $3.32 |
||
|
43211K
|
43211K
90105-W0069
Bolt (For Steering Knuckle Rh)
[05.2003 - 05.2004] CDE120,ZZE12#..UKP OD=15.0,(L),T/P A:REF.ILLUST |
90105-W0069 |
— | ||
|
43211L
|
43211L
90178-W0046
Nut (For Steering Knuckle Rh)
[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90178-W0046 |
— | ||
|
43211L
|
43211L
90179-15006 Nut[11.2001 - 05.2003] CDE120,ZZE12#..UKP |
90179-15006 |
from US $1.19 |
||
|
43212
|
43212
43212-02080
Knuckle, Steering, Lh
[11.2001 - 12.2001] CDE120,ZZE12#..UKP TYPE A:REFER TO ILLUSTRATION |
43212-02080 |
— | ||
|
43212
|
43212
43212-19015 Knuckle, Steering, Lh[12.2001 - 05.2004] CDE120,ZZE12#..UKP TYPE B:REFER TO ILLUSTRATION |
43212-19015 |
US $229.84 |
||
|
43212D
|
43212D
90105-15001 Bolt (For Rear Axle Carrier)[11.2001 - 05.2003] CDE120,ZZE12#..UKP OD=15.0,TYPE A:REFER ILLUST. |
90105-15001 |
US $6.56 |
||
|
43212D
|
43212D
90105-15004 Bolt (For Steering Knuckle Rh)[11.2001 - 05.2004] CDE120,ZZE12#..UKP OD=13.9,TYPE B:REFER ILLUST. |
90105-15004 |
from US $3.12 |
||
|
43212D
|
43212D
90105-15005 Bolt (For Steering Knuckle Rh)[11.2001 - 05.2004] CDE120,ZZE12#..UKP OD=13.3,TYPE C:REFER ILLUST. |
90105-15005 |
from US $2.38 |
||
|
43212D
|
43212D
90105-15006 Bolt (For Steering Knuckle Rh)[11.2001 - 05.2004] CDE120,ZZE12#..UKP OD=12.4,TYPE D:REFER ILLUST. |
90105-15006 |
from US $3.32 |
||
|
43212D
|
43212D
90105-W0069
Bolt (For Steering Knuckle Rh)
[05.2003 - 05.2004] CDE120,ZZE12#..UKP OD=15.0,(L),T/P A:REF.ILLUST |
90105-W0069 |
— | ||
|
43212E
|
43212E
90178-W0046
Nut (For Steering Knuckle Rh)
[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90178-W0046 |
— | ||
|
43212E
|
43212E
90179-15006 Nut[11.2001 - 05.2003] CDE120,ZZE12#..UKP |
90179-15006 |
from US $1.19 |
||
|
43330K
|
43330K
43330-09090
Joint Assy, Lower Ball, Front Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
43330-09090 |
— | ||
|
43330L
|
43330L
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
90171-14003 |
from US $1.37 |
||
|
43330M
|
43330M
90105-12156 Bolt (For Front Lower Ball Joint)[11.2001 - 02.2002] CDE120,ZZE12#..UKP |
90105-12156 |
from US $2.09 |
||
|
43330M
|
43330M
90105-12336 Bolt (For Front Lower Ball Joint Rh)[02.2002 - 05.2003] CDE120,ZZE12#..UKP |
90105-12336 |
from US $1.19 |
||
|
43330M
|
43330M
90105-W0067
Bolt (For Front Lower Ball Joint Rh)
[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90105-W0067 |
— | ||
| replacement | |||||
|
43330M
|
43330M
90105-12346 Bolt (For Front Lower Ball Joint)[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90105-12346 |
from US $1.19 |
||
|
43330S
|
43330S
90178-12015 Nut (For Front Lower Ball Joint Rh)[02.2002 - 05.2003] CDE120,ZZE12#..UKP |
90178-12015 |
from US $1.56 |
||
|
43330S
|
43330S
90178-W0037
Nut (For Front Lower Ball Joint Rh)
[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90178-W0037 |
— | ||
|
43330S
|
43330S
90179-12070 Nut (For Front Lower Ball Joint Setting)[11.2001 - 02.2002] CDE120,ZZE12#..UKP |
90179-12070 |
from US $1.85 |
||
|
43340A
|
43340A
43330-09090
Joint Assy, Lower Ball, Front Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
43330-09090 |
— | ||
|
43340B
|
43340B
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
90171-14003 |
from US $1.37 |
||
|
43340C
|
43340C
90105-12156 Bolt (For Front Lower Ball Joint)[11.2001 - 02.2002] CDE120,ZZE12#..UKP |
90105-12156 |
from US $2.09 |
||
|
43340C
|
43340C
90105-12336 Bolt (For Front Lower Ball Joint Rh)[02.2002 - 05.2003] CDE120,ZZE12#..UKP |
90105-12336 |
from US $1.19 |
||
|
43340C
|
43340C
90105-W0067
Bolt (For Front Lower Ball Joint Rh)
[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90105-W0067 |
— | ||
| replacement | |||||
|
43340C
|
43340C
90105-12346 Bolt (For Front Lower Ball Joint)[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90105-12346 |
from US $1.19 |
||
|
43340G
|
43340G
90178-12015 Nut (For Front Lower Ball Joint Rh)[02.2002 - 05.2003] CDE120,ZZE12#..UKP |
90178-12015 |
from US $1.56 |
||
|
43340G
|
43340G
90178-W0037
Nut (For Front Lower Ball Joint Rh)
[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90178-W0037 |
— | ||
|
43340G
|
43340G
90179-12070 Nut (For Front Lower Ball Joint Setting)[11.2001 - 02.2002] CDE120,ZZE12#..UKP |
90179-12070 |
from US $1.85 |
||
|
48068
|
48068
48068-02030
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
48068-02030 |
— | ||
|
48068
|
48068
48068-02070
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
48068-02070 |
— | ||
| replacement | |||||
|
48068
|
48068
48068-13010 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
48068-13010 |
from US $129.18 |
||
|
48068H
|
48068H
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[02.2002 - 05.2003] CDE120,ZZE12#..UKP |
90119-14086 |
from US $3.45 |
||
|
48068H
|
48068H
90119-W0086
Bolt(For Front Suspension Lower Arm No.1 Rh)
[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90119-W0086 |
— | ||
| replacement | |||||
|
48068H
|
48068H
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90119-14086 |
from US $3.45 |
||
|
48069
|
48069
48069-02030
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[11.2001 - 01.2003] CDE120,ZZE12#..UKP |
48069-02030 |
— | ||
|
48069
|
48069
48069-02070
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
48069-02070 |
— | ||
| replacement | |||||
|
48069
|
48069
48069-13010 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[01.2003 - 05.2004] CDE120,ZZE12#..UKP |
48069-13010 |
from US $129.18 |
||
|
48069D
|
48069D
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[02.2002 - 05.2003] CDE120,ZZE12#..UKP |
90119-14086 |
from US $3.45 |
||
|
48069D
|
48069D
90119-W0086
Bolt(For Front Suspension Lower Arm No.1 Rh)
[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90119-W0086 |
— | ||
| replacement | |||||
|
48069D
|
48069D
90119-14086 Bolt(For Front Suspension Lower Arm No.1 Rh)[05.2003 - 05.2004] CDE120,ZZE12#..UKP (L) |
90119-14086 |
from US $3.45 |
||
|
48641A
|
48641A
90179-14068 Nut(For Front Suspension Lower Arm)[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
90179-14068 |
from US $1.21 |
||
|
9538102525
|
9538102525
95381-02525 PINCOTTER |
95381-02525 |
from US $1.92 |
||
