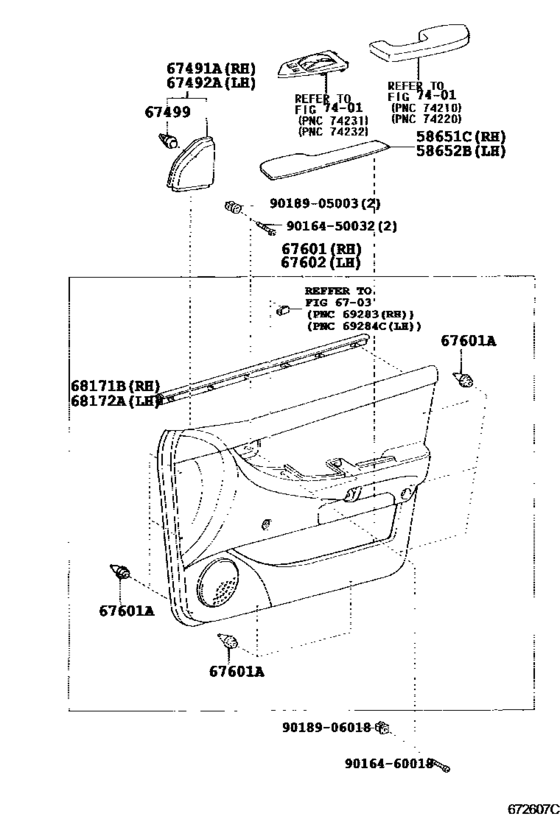

Front Door Panel & Glass ([11.2001 - ] (0111- )UKP..5D) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58651C
|
58651C
58651-02070-B0
Plate, Front Door Mat, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
58651-02070-B0 |
— | ||
|
58651C
|
58651C
58651-02070-J0
Plate, Front Door Mat, Rh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
58651-02070-J0 |
— | ||
|
58652B
|
58652B
58652-02050-B0
Plate, Front Door Mat, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) DK.GRAY,TRIM1# |
58652-02050-B0 |
— | ||
|
58652B
|
58652B
58652-02050-J0
Plate, Front Door Mat, Lh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA DK.BLUE,TRIM8# |
58652-02050-J0 |
— | ||
|
67491A
|
67491A
67491-12460 Garnish, Front Door Lower Frame Bracket, Rh[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA |
67491-12460 |
US $12.38 |
||
|
67491A
|
67491A
67491-12470 Garnish, Front Door Lower Frame Bracket, RhFRONT DOOR LOWER FRAME BRACKET, RH [11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR) |
67491-12470 |
US $17.91 |
||
|
67492A
|
67492A
67492-12460 Garnish, Front Door Lower Frame Bracket, Lh[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA |
67492-12460 |
US $12.38 |
||
|
67492A
|
67492A
67492-12470 Garnish, Front Door Lower Frame Bracket, LhFRONT DOOR LOWER FRAME BRACKET, LH [11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA W(MANUAL REMOTE CONTOROL MIRROR) |
67492-12470 |
US $17.91 |
||
|
67499
|
67499
67771-12060 Retainer, Door Trim[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
67771-12060 |
US $1.60 |
||
|
67601
|
67601
67650-02250-B1
Board Sub-Assy, Front Door Trim, Rh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1# |
67650-02250-B1 |
— | ||
|
67601
|
67601
67650-02250-J1
Board Sub-Assy, Front Door Trim, Rh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.BLUE,TRIM8# |
67650-02250-J1 |
— | ||
|
67601
|
67601
67650-02260-B1
Board Sub-Assy, Front Door Trim, Rh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1# |
67650-02260-B1 |
— | ||
|
67601
|
67601
67650-02260-J1
Board Sub-Assy, Front Door Trim, Rh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8# |
67650-02260-J1 |
— | ||
|
67601A
|
67601A
90467-10161 Clip[06.2003 - 05.2004] CDE120,ZZE12#..UKP..5D (J) |
90467-10161 |
from US $0.92 |
||
|
67601A
|
67601A
90467-W0005
Clip, Rear Floor Finish Plate
[06.2003 - 05.2004] CDE120,ZZE12#..UKP..5D (L) |
90467-W0005 |
— | ||
|
67602
|
67602
67660-02260-B1
Board Sub-Assy, Front Door Trim, Lh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1# |
67660-02260-B1 |
— | ||
|
67602
|
67602
67660-02260-J1
Board Sub-Assy, Front Door Trim, Lh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.BLUE,TRIM8# |
67660-02260-J1 |
— | ||
|
67602
|
67602
67660-02270-B1
Board Sub-Assy, Front Door Trim, Lh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1# |
67660-02270-B1 |
— | ||
|
67602
|
67602
67660-02270-J1
Board Sub-Assy, Front Door Trim, Lh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8# |
67660-02270-J1 |
— | ||
|
68171B
|
68171B
68171-12290 Weatherstrip Assy, Front Door Glass, Inner[11.2001 - 01.2003] CDE120,ZZE12#..UKP..5D |
68171-12290 |
US $43.68 |
||
|
68171B
|
68171B
68171-12320 Weatherstrip Assy, Front Door Glass, Inner[01.2003 - 05.2004] CDE120,ZZE12#..UKP..5D |
68171-12320 |
US $55.74 |
||
|
68172A
|
68172A
68172-12210
Weatherstrip Assy, Front Door Glass, Inner
[11.2001 - 01.2003] CDE120,ZZE12#..UKP..5D |
68172-12210 |
— | ||
|
68172A
|
68172A
68172-12240 Weatherstrip Assy, Front Door Glass, Inner[01.2003 - 05.2004] CDE120,ZZE12#..UKP..5D |
68172-12240 |
US $55.74 |
||
|
9016450032
|
9016450032
90164-50032 Screw |
90164-50032 |
US $1.44 |
||
|
9016460018
|
9016460018
90164-60018 SCREW |
90164-60018 |
from US $0.84 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
