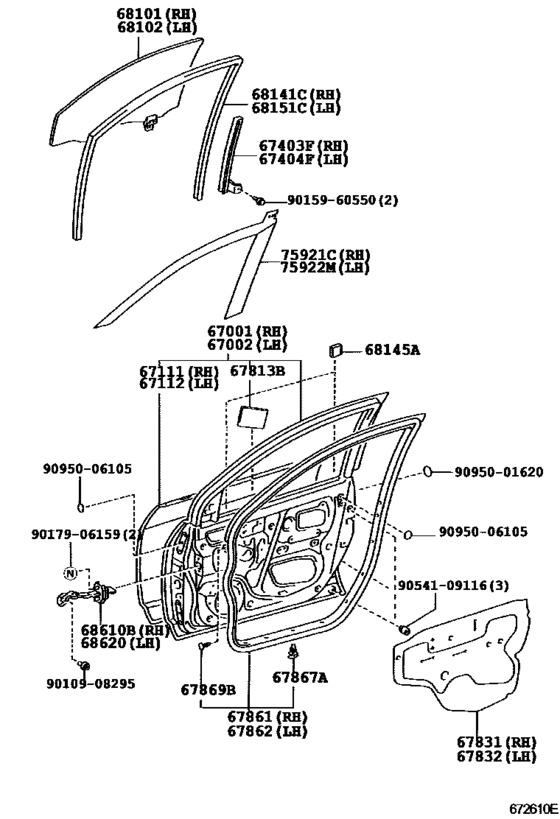

Front Door Panel & Glass ([11.2001 - ] (0111- )UKP..5D) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-02170
Panel Sub-Assy, Front Door, Rh
[11.2001 - 12.2001] CDE120,ZZE12#..UKP..5D |
67001-02170 |
— | ||
| replacement | |||||
|
67001
|
67001
67001-02171
Panel Sub-Assy, Front Door, Rh
[11.2001 - 12.2001] CDE120,ZZE12#..UKP..5D |
67001-02171 |
— | ||
|
67001
|
67001
67001-02171
Panel Sub-Assy, Front Door, Rh
[12.2001 - 05.2004] CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) |
67001-02171 |
— | ||
|
67002
|
67002
67002-02170
Panel Sub-Assy, Front Door, Lh
[11.2001 - 12.2001] CDE120,ZZE12#..UKP..5D |
67002-02170 |
— | ||
| replacement | |||||
|
67002
|
67002
67002-02171
Panel Sub-Assy, Front Door, Lh
[11.2001 - 12.2001] CDE120,ZZE12#..UKP..5D |
67002-02171 |
— | ||
|
67002
|
67002
67002-02171
Panel Sub-Assy, Front Door, Lh
[12.2001 - 05.2004] CDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC) |
67002-02171 |
— | ||
|
67111
|
67111
67111-02080
Panel, Front Door, Outer Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67111-02080 |
— | ||
|
67112
|
67112
67112-02080
Panel, Front Door, Outer Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67112-02080 |
— | ||
|
67403F
|
67403F
67403-12220 Frame Sub-Assy, Front Door, Rear Lower Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67403-12220 |
US $16.22 |
||
|
67404F
|
67404F
67404-12200 Frame Sub-Assy, Front Door, Rear Lower Lh[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67404-12200 |
US $16.22 |
||
|
67813B
|
67813B
67817-47010 Pad, Rear Door Silencer[12.2001 - 05.2004] CDE120..UKP..3D..DCRL;CDE120,ZZE12#..UKP..5D |
67817-47010 |
US $16.11 |
||
|
67831
|
67831
67831-02120
Cover, Front Door Service Hole, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67831-02120 |
— | ||
|
67832
|
67832
67832-02120
Cover, Front Door Service Hole, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67832-02120 |
— | ||
|
67861
|
67861
67861-02110
Weatherstrip, Front Door, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67861-02110 |
— | ||
| replacement | |||||
|
67861
|
67861
67861-02111
Weatherstrip, Front Door, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67861-02111 |
— | ||
|
67862
|
67862
67862-02110
Weatherstrip, Front Door, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67862-02110 |
— | ||
| replacement | |||||
|
67862
|
67862
67862-02111
Weatherstrip, Front Door, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67862-02111 |
— | ||
|
67867A
|
67867A
67867-12150 Clip(For Hood Air Intake Duct Seal)[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
67867-12150 |
from US $1.60 |
||
|
67869B
|
67869B
67869-20030 Clip, Door Weatherstrip(For Front Door)[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
67869-20030 |
from US $0.82 |
||
|
68101
|
68101
68101-02120
Glass Sub-Assy, Front Door, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D *TT,T=3.5,GREEN |
68101-02120 |
— | ||
|
68102
|
68102
68102-02120
Glass Sub-Assy, Front Door, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D *TT,T=3.5,GREEN |
68102-02120 |
— | ||
|
68141C
|
68141C
68141-02070
Run, Front Door Glass, Rh
[11.2001 - 02.2002] CDE120,ZZE12#..UKP..5D |
68141-02070 |
— | ||
|
68141C
|
68141C
68141-02071
Run, Front Door Glass, Rh
[02.2002 - 05.2004] CDE120,ZZE12#..UKP..5D |
68141-02071 |
— | ||
| replacement | |||||
|
68141C
|
68141C
68141-02072
Run, Front Door Glass, Rh
[02.2002 - 05.2004] CDE120,ZZE12#..UKP..5D |
68141-02072 |
— | ||
|
68145A
|
68145A
69759-12110 Seal, Rear Door Frame[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
69759-12110 |
US $3.84 |
||
|
68151C
|
68151C
68151-02060
Run, Front Door Glass, Lh
[11.2001 - 02.2002] CDE120,ZZE12#..UKP..5D |
68151-02060 |
— | ||
|
68151C
|
68151C
68151-02061
Run, Front Door Glass, Lh
[02.2002 - 05.2004] CDE120,ZZE12#..UKP..5D |
68151-02061 |
— | ||
| replacement | |||||
|
68151C
|
68151C
68151-02062
Run, Front Door Glass, Lh
[02.2002 - 05.2004] CDE120,ZZE12#..UKP..5D |
68151-02062 |
— | ||
|
68610B
|
68610B
68610-12170
Check Assy, Front Door, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
68610-12170 |
— | ||
|
68620
|
68620
68620-12100
Check Assy, Front Door, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
68620-12100 |
— | ||
|
75921C
|
75921C
75921-02020
Tape, Black Out, No.1 Rh
[11.2001 - 12.2001] CDE120,ZZE12#..UKP..5D |
75921-02020 |
— | ||
|
75921C
|
75921C
75921-02021
Tape, Black Out, No.1 Rh
[12.2001 - 01.2003] CDE120,ZZE12#..UKP..5D |
75921-02021 |
— | ||
|
75922M
|
75922M
75922-02020
Tape, Black Out, No.1 Lh
[11.2001 - 12.2001] CDE120,ZZE12#..UKP..5D |
75922-02020 |
— | ||
|
75922M
|
75922M
75922-02021
Tape, Black Out, No.1 Lh
[12.2001 - 01.2003] CDE120,ZZE12#..UKP..5D |
75922-02021 |
— | ||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.90 |
||
|
9015960550
|
9015960550
90159-60550 New Genuine Part |
90159-60550 |
US $1.44 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9054109116
|
9054109116
90541-09116 Cushion(For Luggage Compartment Door Panel) |
90541-09116 |
from US $1.60 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.76 |
||
|
9095006105
|
9095006105
90950-06105 Seal, Front Door Front Lower Frame Cover |
90950-06105 |
US $1.76 |
||
