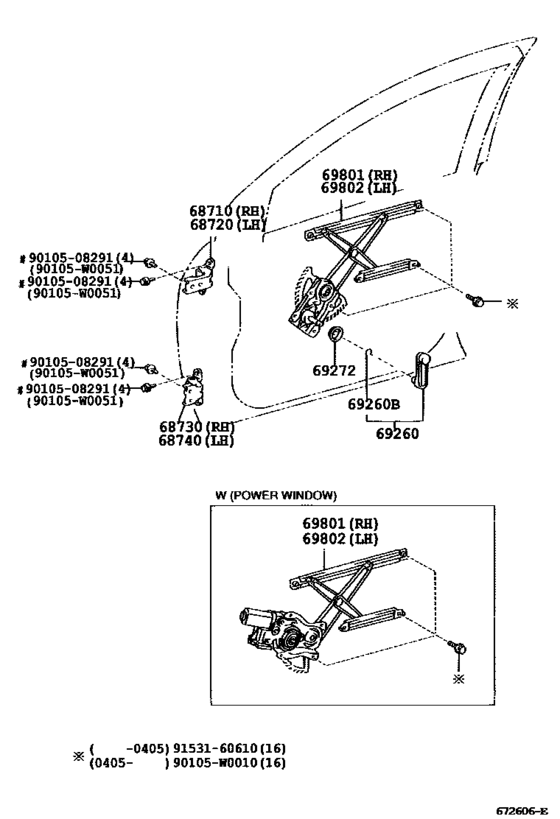

Front Door Window Regulator & Hinge ([11.2001 - ] (0111- )UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-02040
Hinge Assy, Front Door, Upper Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
68710-02040 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
68710-12151 |
from US $31.16 |
||
|
68710
|
68710
68710-02050
Hinge Assy, Front Door, Upper Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..5D FRAME NO.=RXXXXXX |
68710-02050 |
— | ||
|
68720
|
68720
68720-02040
Hinge Assy, Front Door, Upper Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
68720-02040 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[11.2001 - 05.2004] CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
68720-12151 |
US $31.16 |
||
|
68720
|
68720
68720-02050
Hinge Assy, Front Door, Upper Lh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..5D FRAME NO.=RXXXXXX |
68720-02050 |
— | ||
|
68730
|
68730
68730-02040
Hinge Assy, Front Door, Lower Rh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..5D FRAME NO.=RXXXXXX |
68730-02040 |
— | ||
|
68730
|
68730
68730-0D010 Hinge Assy, Front Door, Lower Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
68730-0D010 |
US $44.99 |
||
| replacement | |||||
|
68730
|
68730
68730-52010 Hinge Assy, Front Door, Lower Rh[11.2001 - 05.2004] CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
68730-52010 |
from US $31.16 |
||
|
68740
|
68740
68740-02040
Hinge Assy, Front Door, Lower Lh
[01.2003 - 05.2004] CDE120,ZZE12#..UKP..5D FRAME NO.=RXXXXXX |
68740-02040 |
— | ||
|
68740
|
68740
68740-0D010
Hinge Assy, Front Door, Lower Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
68740-0D010 |
— | ||
| replacement | |||||
|
68740
|
68740
68740-52010 Hinge Assy, Front Door, Lower Lh[11.2001 - 05.2004] CDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
68740-52010 |
from US $28.72 |
||
|
69260
|
69260
69260-02020-B2 Handle Assy, Front Door Window RegulatorFRONT DOOR WINDOW REGULATOR [11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1# |
69260-02020-B2 |
US $15 |
||
|
69260
|
69260
69260-02020-J0
Handle Assy, Front Door Window Regulator
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA DK.BLUE,TRIM8# |
69260-02020-J0 |
— | ||
|
69260B
|
69260B
90080-52100
Ring, Shaft Snap(For Front Door Window Regulator Handle)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..3D..TERRA; CDE120,ZZE120,121..UKP..5D..TERRA |
90080-52100 |
— | ||
|
69272
|
69272
69268-02021 Plate, Front Door Regulator Inside HandleREAR DOOR REGULATOR INSIDE HANDLE [11.2001 - 08.2002] CDE120,ZZE120,121..UKP..TERRA |
69268-02021 |
US $2.33 |
||
|
69272
|
69272
69268-02022 Plate, Front Door Regulator Inside HandleFRONT DOOR REGULATOR INSIDE HANDLE [08.2002 - 05.2004] CDE120,ZZE120,121..UKP..TERRA |
69268-02022 |
US $1.31 |
||
|
69801
|
69801
69810-02120
Regulator Sub-Assy, Front Door Window, Rh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA |
69810-02120 |
— | ||
|
69801
|
69801
69810-02130
Regulator Sub-Assy, Front Door Window, Rh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP W(POWER WINDOW) |
69810-02130 |
— | ||
|
69802
|
69802
69820-02120
Regulator Sub-Assy, Front Door Window, Lh
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA |
69820-02120 |
— | ||
|
69802
|
69802
69820-02130
Regulator Sub-Assy, Front Door Window, Lh
[11.2001 - 05.2004] CDE120,ZZE12#..UKP W(POWER WINDOW) |
69820-02130 |
— | ||
|
90105W0010
|
90105W0010
90105-W0010 New Genuine Part |
90105-W0010 |
US $1.16 |
||
|
90105W0051
|
90105W0051
90105-W0051
BOLT FLANGE
|
90105-W0051 |
— | ||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.92 |
||
|
9153160610
|
9153160610
91531-60610 New Genuine Part |
91531-60610 |
US $1.76 |
||
