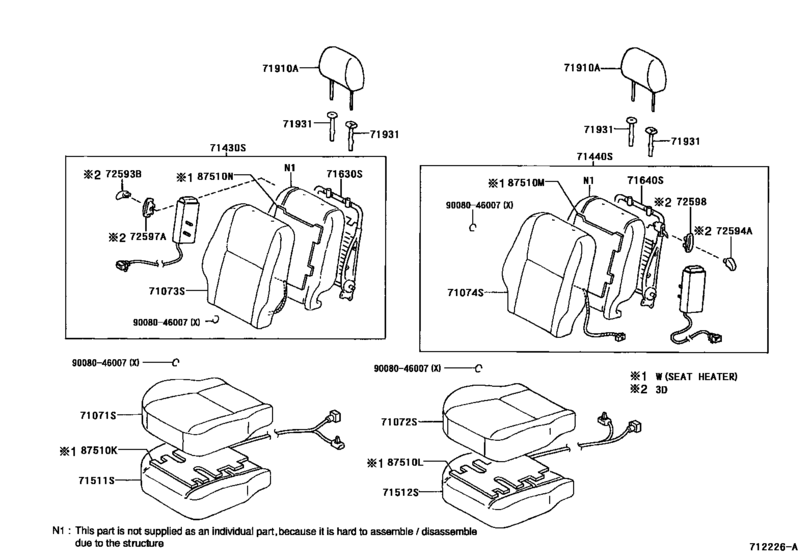

Front Seat & Seat Track ([11.2001 - 05.2004] W(SIDE AIR BAG) (0111-0405)UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-02560-B1
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
71071-02560-B1 |
— | ||
|
71071S
|
71071S
71071-02560-J0
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
71071-02560-J0 |
— | ||
|
71072S
|
71072S
71071-02560-B1
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
71071-02560-B1 |
— | ||
|
71072S
|
71072S
71071-02560-J0
Cover, Front Seat Cushion, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
71071-02560-J0 |
— | ||
|
71073S
|
71073S
71073-02720-B1
Cover, Front Seat Back, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
71073-02720-B1 |
— | ||
|
71073S
|
71073S
71073-02720-J0
Cover, Front Seat Back, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
71073-02720-J0 |
— | ||
|
71073S
|
71073S
71073-02730-B1
Cover, Front Seat Back, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
71073-02730-B1 |
— | ||
|
71073S
|
71073S
71073-02730-J0
Cover, Front Seat Back, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
71073-02730-J0 |
— | ||
|
71074S
|
71074S
71073-02720-B1
Cover, Front Seat Back, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
71073-02720-B1 |
— | ||
|
71074S
|
71074S
71073-02720-J0
Cover, Front Seat Back, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
71073-02720-J0 |
— | ||
|
71074S
|
71074S
71074-02600-B1
Cover, Front Seat Back, Lh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
71074-02600-B1 |
— | ||
|
71074S
|
71074S
71074-02600-J0
Cover, Front Seat Back, Lh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
71074-02600-J0 |
— | ||
|
71430S
|
71430S
71430-02660-B1
Back Assy, Front Seat, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
71430-02660-B1 |
— | ||
|
71430S
|
71430S
71430-02660-J0
Back Assy, Front Seat, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
71430-02660-J0 |
— | ||
|
71440S
|
71440S
71440-02620-B1
Back Assy, Front Seat, Lh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.GRAY,TRIM1# |
71440-02620-B1 |
— | ||
|
71440S
|
71440S
71440-02620-J0
Back Assy, Front Seat, Lh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5D..TERRA SEAT = TYPE A-*104 & W(SIDE AIR BAG),DK.BLUE,TRIM8# |
71440-02620-J0 |
— | ||
|
71511S
|
71511S
71511-02120
Pad, Front Seat Cushion, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
71511-02120 |
— | ||
|
71512S
|
71512S
71511-02120
Pad, Front Seat Cushion, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
71511-02120 |
— | ||
|
71630S
|
71630S
71630-02070
Spring Assy, Front Seat Back, Rh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
71630-02070 |
— | ||
|
71640S
|
71640S
71640-02040
Spring Assy, Front Seat Back, Lh(For Separate Type)
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..5D |
71640-02040 |
— | ||
|
71910A
|
71910A
71910-02360-B1
Headrest Assy, Front Seat
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
71910-02360-B1 |
— | ||
|
71910A
|
71910A
71910-02360-J1
Headrest Assy, Front Seat
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA SEAT = TYPE A-*104,DK.BLUE,TRIM8# |
71910-02360-J1 |
— | ||
|
71931
|
71931
71930-02070-B0 Support, Front Seat Headrest[11.2001 - 05.2004] CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
71930-02070-B0 |
US $16.89 |
||
|
71931
|
71931
71930-02070-J0
Support, Front Seat Headrest
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA W(LOCK),DK.BLUE,TRIM8# |
71930-02070-J0 |
— | ||
|
71931
|
71931
71931-02050-B0 Support, Front Seat Headrest[11.2001 - 05.2004] CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
71931-02050-B0 |
US $10.34 |
||
|
71931
|
71931
71931-02050-J0
Support, Front Seat Headrest
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA W/O(LOCK),DK.BLUE,TRIM8# |
71931-02050-J0 |
— | ||
|
9008046007
|
9008046007
90080-46007
Ring, Hog, Small (For Front Seat)
|
90080-46007 |
— |
