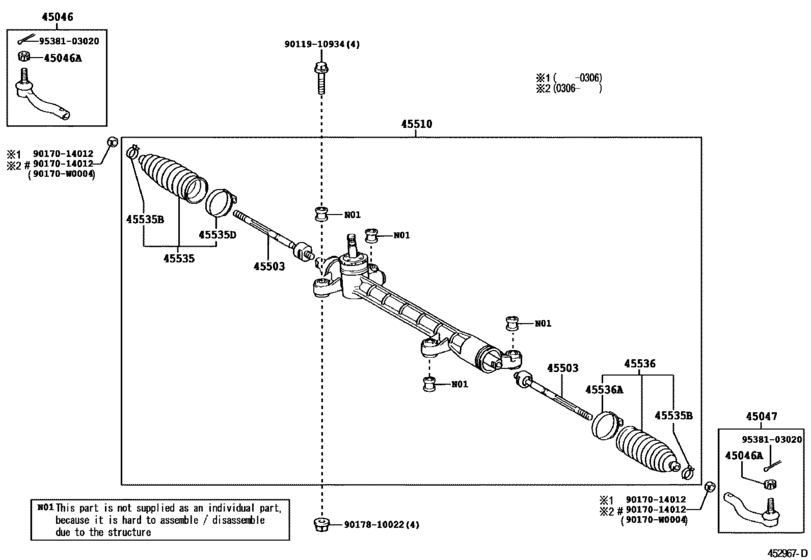

Front Steering Gear & Link ([11.2001 - ] (0111- )UKP..RHD) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-09360
End Sub-Assy, Tie Rod, Rh
[10.2003 - 05.2004] CDE120,ZZE12#..UKP |
45046-09360 |
— | ||
|
45046
|
45046
45046-19265 End Sub-Assy, Tie Rod, Rh[11.2001 - 10.2003] CDE120,ZZE12#..UKP |
45046-19265 |
US $65.06 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45047-09150
End Sub-Assy, Tie Rod, Lh
[10.2003 - 05.2004] CDE120,ZZE12#..UKP |
45047-09150 |
— | ||
|
45047
|
45047
45047-19115 End Sub-Assy, Tie Rod, Lh[11.2001 - 10.2003] CDE120,ZZE12#..UKP |
45047-19115 |
from US $47.91 |
||
|
45503
|
45503
45503-02080
End Sub-Assy, Steering Rack
[10.2003 - 05.2004] CDE120,ZZE12#..UKP |
45503-02080 |
— | ||
|
45503
|
45503
45503-12130 End Sub-Assy, Steering Rack[11.2001 - 10.2003] CDE120,ZZE12#..UKP |
45503-12130 |
from US $74.26 |
||
| replacement | |||||
|
45503
|
45503
45503-12131 End Sub-Assy, Steering Rack[11.2001 - 10.2003] CDE120,ZZE12#..UKP |
45503-12131 |
from US $94.69 |
||
|
45510
|
45510
45510-02040
Gear Assy, Steering
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..RHD |
45510-02040 |
— | ||
|
45535
|
45535
45535-09040
Boot, Steering Rack, No.1
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
45535-09040 |
— | ||
|
45535B
|
45535B
90466-22003
Clip(For Steering Rack Boot)
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
90466-22003 |
— | ||
|
45535D
|
45535D
90460-57006
Clamp(For Steering Rack Boot No.1)
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
90460-57006 |
— | ||
|
45536
|
45536
45535-09040
Boot, Steering Rack, No.1
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
45535-09040 |
— | ||
|
45536A
|
45536A
90460-57006
Clamp(For Steering Rack Boot No.1)
[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
90460-57006 |
— | ||
|
90170W0004
|
90170W0004
90170-W0004
New Genuine Part
|
90170-W0004 |
— | ||
|
9011910934
|
9011910934
90119-10934 BOLT W/WASHER |
90119-10934 |
US $5.28 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.13 |
||
|
9017810022
|
9017810022
90178-10022 NUT, FLANGE |
90178-10022 |
US $1.60 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
