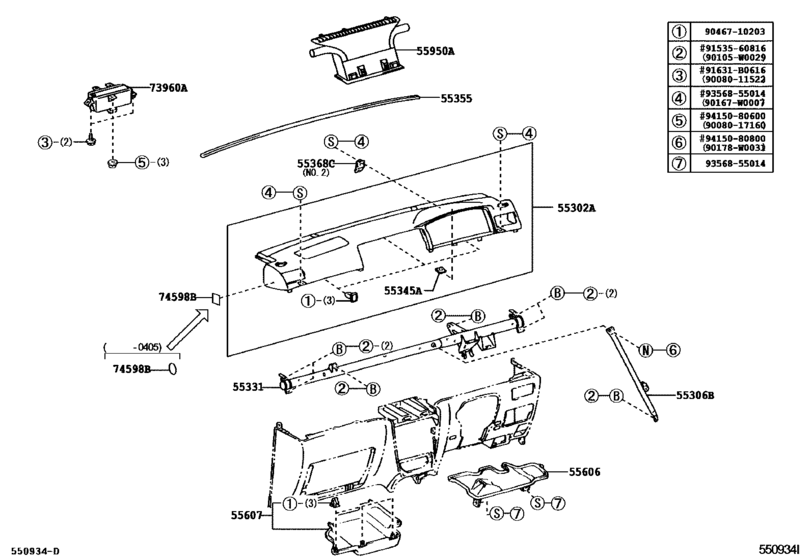

Instrument Panel & Glove Compartment ([11.2001 - ] (0111- )UKP..RHD) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55302A
|
55302A
55302-02090-B0
Panel Sub-Assy, Instrument, Upper
[11.2001 - 05.2004] ZZE123..UKP..RHD DK.GRAY,TRIM1#; CDE120,ZZE120,121..UKP..RHD..TERRA DK.GRAY,TRIM1#,8#; CDE120,ZZE120,121..UKP..RHD..SOL..(DCRL,HTWC) DK.GRAY,TRIM0#,1# |
55302-02090-B0 |
— | ||
|
55306B
|
55306B
55306-02150
Brace Sub-Assy, Instrument Panel To Cowl
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..RHD |
55306-02150 |
— | ||
|
55331
|
55331
55330-02160
Reinforcement, Instrument Panel
[11.2001 - 01.2002] CDE120,ZZE12#..UKP..RHD |
55330-02160 |
— | ||
| replacement | |||||
|
55331
|
55331
55330-02161
Reinforcement, Instrument Panel
[11.2001 - 01.2002] CDE120,ZZE12#..UKP..RHD |
55330-02161 |
— | ||
|
55331
|
55331
55330-02161
Reinforcement, Instrument Panel
[01.2002 - 05.2004] CDE120,ZZE12#..UKP..RHD |
55330-02161 |
— | ||
|
55345A
|
55345A
55345-12060 Clip, Instrument Panel, No.1[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
55345-12060 |
US $1.10 |
||
|
55355
|
55355
55355-0D030
Cushion, Instrument Panel, No.1
[10.2002 - 05.2004] CDE120,ZZE12#..UKP |
55355-0D030 |
— | ||
| replacement | |||||
|
55355
|
55355
55355-52012 Cushion, Instrument Panel, No.1[10.2002 - 05.2004] CDE120,ZZE12#..UKP |
55355-52012 |
US $12.08 |
||
|
55355
|
55355
55355-52012 Cushion, Instrument Panel, No.1[11.2001 - 10.2002] CDE120,ZZE12#..UKP |
55355-52012 |
US $12.08 |
||
|
55368C
|
55368C
55362-12050 Bracket, Meter Mounting[11.2001 - 05.2004] CDE120,ZZE12#..UKP NO.1 |
55362-12050 |
US $1.46 |
||
|
55368C
|
55368C
55368-12090 Bracket, Meter Mounting[11.2001 - 05.2004] CDE120,ZZE12#..UKP NO.2 |
55368-12090 |
US $3.20 |
||
|
55606
|
55606
55606-02010
Cover Sub-Assy, Instrument Panel Under, No.1
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..RHD |
55606-02010 |
— | ||
|
55607
|
55607
55607-02010
Cover Sub-Assy, Instrument Panel Under, No.2
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..RHD |
55607-02010 |
— | ||
|
55950A
|
55950A
55950-02080
Nozzle Assy, Defroster
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..RHD |
55950-02080 |
— | ||
|
73960A
|
73960A
73960-02040
Air Bag Assy, Instrument Panel Passenger W/o Door
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..RHD |
73960-02040 |
— | ||
|
74598B
|
74598B
74598-20010 Label, Driver & Passenger Air Bag Caution[11.2001 - 01.2002] CDE120,ZZE12#..UKP |
74598-20010 |
US $1.44 |
||
|
74598B
|
74598B
74598-30040 Label, Passenger Air Bag CautionPASSENGER AIR BAG CAUTION [01.2002 - 05.2004] CDE120,ZZE12#..UKP |
74598-30040 |
US $1.56 |
||
|
90105W0029
|
90105W0029
90105-W0029 New Genuine Part |
90105-W0029 |
US $1.75 |
||
|
90167W0007
|
90167W0007
90167-W0007
New Genuine Part
|
90167-W0007 |
— | ||
|
90178W0031
|
90178W0031
90178-W0031
Nut (For Transmission Control Cable)
|
90178-W0031 |
— | ||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.70 |
||
|
9008011522
|
9008011522
90080-11522 New Genuine Part |
90080-11522 |
US $0.73 |
||
|
9008017160
|
9008017160
90080-17160
New Genuine Part
|
90080-17160 |
— | ||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9153560816
|
9153560816
91535-60816 BOLT WWASHER |
91535-60816 |
US $1.05 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.72 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.84 |
||
