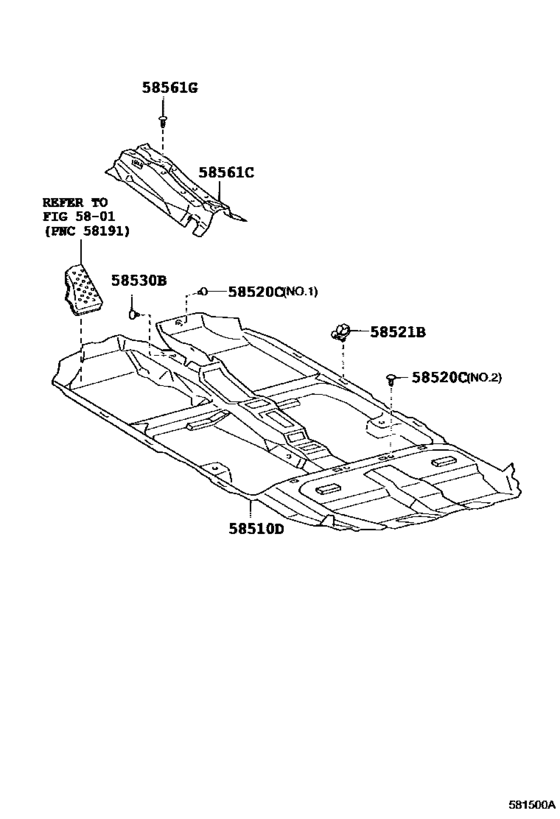

Mat & Carpet ([11.2001 - ] (0111- )UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58510D
|
58510D
58510-02370-B0
Carpet Assy, Floor, Front
[11.2001 - 05.2004] CDE120,ZZE12#..UKP..RHD..5D DK.GRAY,TRIM1# |
58510-02370-B0 |
— | ||
|
58510D
|
58510D
58510-02370-J0
Carpet Assy, Floor, Front
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..RHD..5D..TERRA DK.BLUE,TRIM8# |
58510-02370-J0 |
— | ||
|
58520C
|
58520C
90467-06001-B3 Clip(For Deck Boad)[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#,NO.1; CDE120,ZZE12#..UKP..(SOL,TSP) DK.GRAY,TRIM1#,NO.1 |
90467-06001-B3 |
US $0.87 |
||
|
58520C
|
58520C
90467-07049-B7 Clip(For Front Floor Carpet)[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#,NO.2; CDE120,ZZE12#..UKP..(SOL,TSP) DK.GRAY,TRIM1#,NO.2 |
90467-07049-B7 |
US $1.60 |
||
|
58521B
|
58521B
58521-13020 Hook, Floor Carpet[11.2001 - 05.2004] CDE120,ZZE12#..UKP |
58521-13020 |
US $4.95 |
||
|
58530B
|
58530B
90467-07090-B3
Clip(For Instrument Panel Under Cover)
[11.2002 - 05.2004] ZZE123..UKP DK.GRAY,TRIM1#; CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#; CDE120,ZZE120,121..UKP..SOL DK.GRAY,TRIM0#,1# |
90467-07090-B3 |
— | ||
|
58530B
|
58530B
90467-09118 Clip(For Hood Insulator)[11.2001 - 11.2002] CDE120,ZZE12#..UKP |
90467-09118 |
US $3.04 |
||
|
58561C
|
58561C
58561-02030
Silencer, Front Floor, No.1
[11.2001 - 08.2003] CDE120,ZZE12#..UKP |
58561-02030 |
— | ||
| replacement | |||||
|
58561C
|
58561C
58561-02031
Silencer, Front Floor, No.1
[11.2001 - 08.2003] CDE120,ZZE12#..UKP |
58561-02031 |
— | ||
|
58561C
|
58561C
58561-02031
Silencer, Front Floor, No.1
[08.2003 - 05.2004] CDE120,ZZE12#..UKP |
58561-02031 |
— | ||
|
58561G
|
58561G
90467-06020-B6 Clip(For Instrument Lower Cover)[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA DK.GRAY,TRIM1#,8#; CDE120,ZZE12#..UKP..(SOL,TSP) DK.GRAY,TRIM1# |
90467-06020-B6 |
US $2.40 |
||
