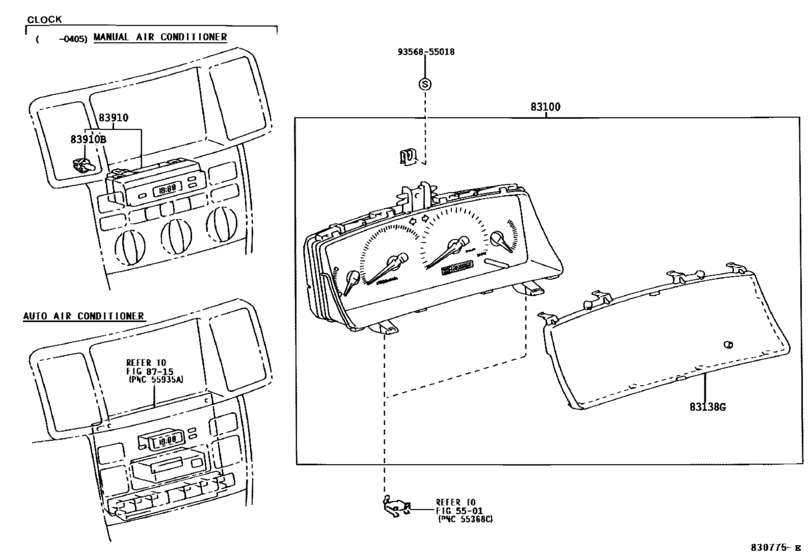

Meter ([11.2001 - ] (0111- )UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-02760
Meter Assy, Combination
[11.2001 - 05.2004] CDE120..UKP OPTITRON METER,KM/H |
83800-02760 |
— | ||
|
83100
|
83100
83800-02790
Meter Assy, Combination
[11.2001 - 05.2004] CDE120..UKP..RHD OPTITRON METER,MILE/H+KM/H |
83800-02790 |
— | ||
|
83100
|
83100
83800-02810
Meter Assy, Combination
[11.2001 - 05.2004] CDE120..UKP..TERRA ANALOGUE METER,KM/H |
83800-02810 |
— | ||
|
83100
|
83100
83800-02830
Meter Assy, Combination
[11.2001 - 05.2004] CDE120..UKP..RHD..TERRA ANALOGUE METER,MILE/H+KM/H |
83800-02830 |
— | ||
|
83138G
|
83138G
83852-02740
Glass, Combination Meter
[11.2001 - 05.2004] CDE120,ZZE12#..UKP OPTITRON METER |
83852-02740 |
— | ||
|
83138G
|
83138G
83852-02800
Glass, Combination Meter
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..TERRA ANALOGUE METER |
83852-02800 |
— | ||
|
83910
|
83910
83910-12580 Clock Assy[11.2001 - 05.2004] CDE120,ZZE121..UKP |
83910-12580 |
US $425.15 |
||
|
83910B
|
83910B
90010-07020 Bulb, Clock Indicator[11.2001 - 05.2004] CDE120,ZZE121..UKP 14V 1.12W |
90010-07020 |
US $5.53 |
||
|
9356855018
|
9356855018
93568-55018 SCREW |
93568-55018 |
US $1.92 |
