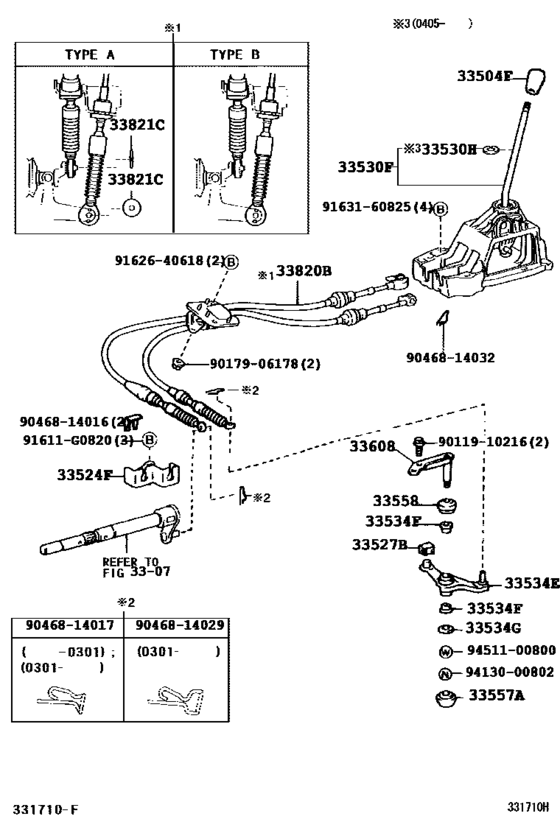

Shift Lever & Retainer ([11.2001 - ] (0111- )CDE120..UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-02030-B0
Knob Sub-Assy, Shift Lever
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5F..TERRA DK.GRAY,TRIM1#,8#,(L) |
33504-02030-B0 |
— | ||
|
33504F
|
33504F
33504-13010-B0 Knob Sub-Assy, Shift Lever[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..5F..TERRA DK.GRAY,TRIM1#,8# |
33504-13010-B0 |
US $77.93 |
||
|
33524F
|
33524F
33524-28020
Bracket, Control Lever Housing Support (For Floor Shift)
[11.2001 - 05.2004] CDE120..UKP |
33524-28020 |
— | ||
|
33527B
|
33527B
33557-33010 Bush (For Shift & Select Lever)[11.2001 - 05.2004] CDE120,ZZE12#..UKP..MTM |
33557-33010 |
from US $7.20 |
||
|
33530F
|
33530F
33530-02050
Lever Assy, Shift (For Floor Shift)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..RHD..5F |
33530-02050 |
— | ||
| replacement | |||||
|
33530F
|
33530F
33530-02170
Lever Assy, Shift (For Floor Shift)
[11.2001 - 05.2004] CDE120,ZZE120,121..UKP..RHD..5F |
33530-02170 |
— | ||
|
33534E
|
33534E
33534-28090
Crank, Selecting Bell, No.2
[11.2001 - 05.2004] CDE120..UKP |
33534-28090 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[11.2001 - 05.2004] CDE120,ZZE12#..UKP..MTM |
90386-12022 |
from US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[11.2001 - 05.2004] CDE120,ZZE12#..UKP..MTM |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[11.2001 - 05.2004] CDE120,ZZE12#..UKP..MTM |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-10030 Cover, Selecting Bellcrank Dust, No.2[11.2001 - 05.2004] CDE120,ZZE12#..UKP..MTM |
33558-10030 |
US $3.68 |
||
|
33608
|
33608
33608-12031 Support Sub-Assy, Selecting Bellcrank[11.2001 - 05.2004] CDE120..UKP |
33608-12031 |
US $12.38 |
||
|
33820B
|
33820B
33820-02232
Cable Assy, Transmission Control
[01.2003 - 03.2003] CDE120..UKP FRAME NO.=RXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02232 |
— | ||
| replacement | |||||
|
33820B
|
33820B
33820-02440
Cable Assy, Transmission Control
[01.2003 - 03.2003] CDE120..UKP FRAME NO.=RXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02440 |
— | ||
|
33820B
|
33820B
33820-02233
Cable Assy, Transmission Control
[03.2003 - 06.2003] CDE120..UKP FRAME NO.=RXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02233 |
— | ||
| replacement | |||||
|
33820B
|
33820B
33820-02440
Cable Assy, Transmission Control
[03.2003 - 06.2003] CDE120..UKP FRAME NO.=RXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02440 |
— | ||
|
33820B
|
33820B
33820-02234
Cable Assy, Transmission Control
[06.2003 - 05.2004] CDE120..UKP FRAME NO.=RXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02234 |
— | ||
| replacement | |||||
|
33820B
|
33820B
33820-02440
Cable Assy, Transmission Control
[06.2003 - 05.2004] CDE120..UKP FRAME NO.=RXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02440 |
— | ||
|
33820B
|
33820B
33820-02340
Cable Assy, Transmission Control
[06.2002 - 01.2003] CDE120..UKP TYPE A:REFER ILLUST. |
33820-02340 |
— | ||
| replacement | |||||
|
33820B
|
33820B
33820-02343
Cable Assy, Transmission Control
[06.2002 - 01.2003] CDE120..UKP TYPE A:REFER ILLUST. |
33820-02343 |
— | ||
|
33820B
|
33820B
33820-02342
Cable Assy, Transmission Control
[01.2003 - 03.2003] CDE120..UKP FRAME NO.=EXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02342 |
— | ||
| replacement | |||||
|
33820B
|
33820B
33820-02343
Cable Assy, Transmission Control
[01.2003 - 03.2003] CDE120..UKP FRAME NO.=EXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02343 |
— | ||
|
33820B
|
33820B
33820-02343
Cable Assy, Transmission Control
[03.2003 - 06.2003] CDE120..UKP FRAME NO.=EXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02343 |
— | ||
|
33820B
|
33820B
33820-02344
Cable Assy, Transmission Control
[06.2003 - 05.2004] CDE120..UKP FRAME NO.=EXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02344 |
— | ||
| replacement | |||||
|
33820B
|
33820B
33820-02440
Cable Assy, Transmission Control
[06.2003 - 05.2004] CDE120..UKP FRAME NO.=EXXXXXX,TYPE A:REFER TO ILLUSTRATION |
33820-02440 |
— | ||
|
33820B
|
33820B
33820-1A211
Cable Assy, Transmission Control
[11.2001 - 05.2004] CDE120..UKP TYPE B:REFER ILLUST. |
33820-1A211 |
— | ||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[11.2001 - 05.2004] CDE120,ZZE12#..UKP..MTM OD=30 |
90201-08077 |
from US $1.56 |
||
|
91611G0820
|
91611G0820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9011910216
|
9011910216
90119-10216 Bolt (For Control Shaft Cover) |
90119-10216 |
US $2.72 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.90 |
||
|
9046814029
|
9046814029
90468-14029 CLIP |
90468-14029 |
US $0.70 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.44 |
||
|
9162640618
|
9162640618
91626-40618 BOLTWWASHER |
91626-40618 |
US $1.44 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.84 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
