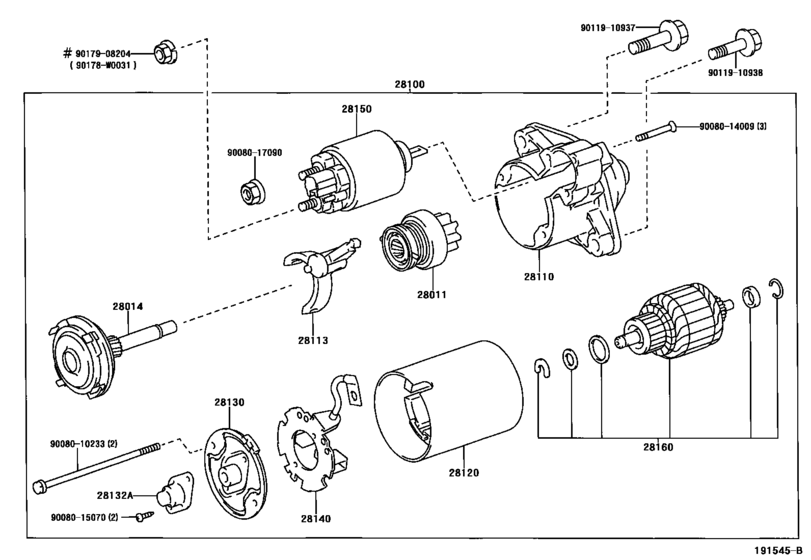

Starter ([11.2001 - 05.2004] 12V 2.0KW (0111-0405)1CDFTV..UKP) Diagram Toyota COROLLA
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- HB
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 11.2001
- To
- 05.2004
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB
- Driver's Position
- RHD
- Fuel Induction
- DCR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-0G010
Clutch Sub-Assy, Starter
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
28011-0G010 |
— | ||
|
28014
|
28014
28014-0G010 Shaft Sub-Assy, Planet CarrierPLANET CARRIER [11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
28014-0G010 |
US $27.96 |
||
|
28100
|
28100
28100-0G010 Starter Assy[11.2001 - 05.2004] 1CDFTV..CDE120..UKP 12V 2.0KW |
28100-0G010 |
US $1,645.28 |
||
|
28110
|
28110
28110-0G010 Housing Assy, Starter DriveSTARTER DRIVE [11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
28110-0G010 |
US $84.45 |
||
|
28113
|
28113
28113-02010 Lever, Starter Pinion DriveSTARTER PINION DRIVE [11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
28113-02010 |
US $14.41 |
||
|
28120
|
28120
28120-0G010
Yoke Assy, Starter
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
28120-0G010 |
— | ||
|
28130
|
28130
28130-0B020
Frame Assy, Starter Commutator End
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
28130-0B020 |
— | ||
|
28132A
|
28132A
28132-04010 Cover, Starter Commutator End FrameSTARTER COMMUTATOR END FRAME [11.2001 - 05.2004] 1CDFTV,3ZZFE,4ZZFE..CDE120,ZZE120,121..UKP |
28132-04010 |
US $15.29 |
||
| replacement | |||||
|
28132A
|
28132A
28132-0X040
Cover, Starter Commutator End Frame
[11.2001 - 05.2004] 1CDFTV,3ZZFE,4ZZFE..CDE120,ZZE120,121..UKP |
28132-0X040 |
— | ||
|
28140
|
28140
28140-0G010
Holder Assy, Starter Brush
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
28140-0G010 |
— | ||
|
28150
|
28150
28150-0B020 Switch Assy, Magnet StarterMAGNET STARTER [11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
28150-0B020 |
US $152.88 |
||
|
28160
|
28160
28160-0G010
Armature Assy, Starter
[11.2001 - 05.2004] 1CDFTV..CDE120..UKP |
28160-0G010 |
— | ||
|
90178W0031
|
90178W0031
90178-W0031
Nut (For Transmission Control Cable)
|
90178-W0031 |
— | ||
|
9008010233
|
9008010233
90080-10233 New Genuine Part |
90080-10233 |
US $2.18 |
||
|
9008014009
|
9008014009
90080-14009 New Genuine Part |
90080-14009 |
US $1.75 |
||
|
9008015070
|
9008015070
90080-15070 New Genuine Part |
90080-15070 |
US $1.46 |
||
|
9008017090
|
9008017090
90080-17090
New Genuine Part
|
90080-17090 |
— | ||
|
9011910937
|
9011910937
90119-10937 New Genuine Part |
90119-10937 |
US $2.33 |
||
|
9011910938
|
9011910938
90119-10938 New Genuine Part |
90119-10938 |
US $1.40 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
