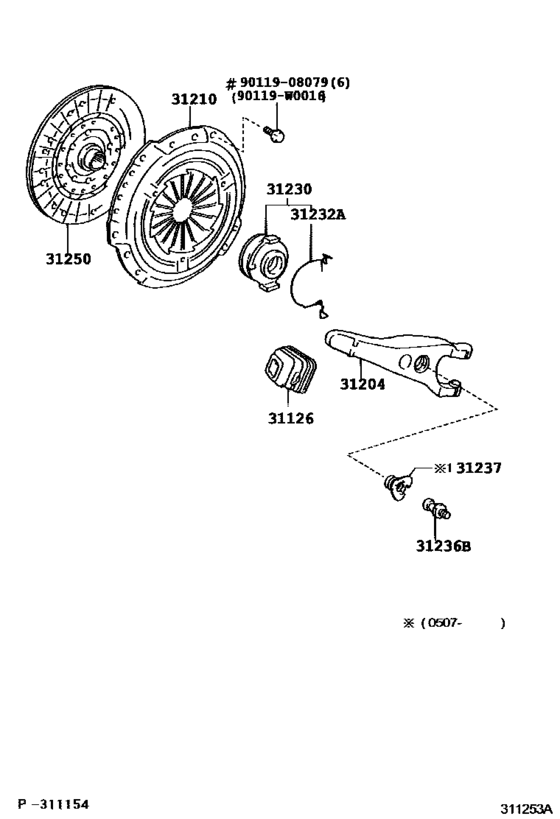

Clutch & Release Fork ([06.2004 - ] (0406- )CDE120..UKP) Diagram Toyota COROLLA
- Year
- 2004 - 2007
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- body
- WG
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 06.2004
- To
- 02.2007
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
- Fuel Induction
- DCRL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20080 Boot, Clutch Release Fork[05.2004 -] CDE120..UKP..DCRL |
31126-20080 |
from US $11.36 |
||
|
31204
|
31204
31204-20131 Fork Sub-Assy, Clutch ReleaseCLUTCH RELEASE [05.2004 -] CDE120..UKP..DCRL |
31204-20131 |
US $82.99 |
||
|
31210
|
31210
31210-05050
Cover Assy, Clutch
[06.2004 - 10.2005] CDE120..UKP |
31210-05050 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-05051
Cover Assy, Clutch
[06.2004 - 10.2005] CDE120..UKP |
31210-05051 |
— | ||
|
31210
|
31210
31210-05051
Cover Assy, Clutch
[11.2005 - 02.2007] CDE120..UKP |
31210-05051 |
— | ||
|
31230
|
31230
31230-20191 Bearing Assy, Clutch Release[06.2004 -] CDE120..UKP |
31230-20191 |
from US $27.66 |
||
|
31232A
|
31232A
31232-20031 Clip, Release Bearing Hub[06.2004 -] CDE120..UKP |
31232-20031 |
from US $2.56 |
||
|
31236B
|
31236B
31236-20080
Support, Release Fork
[06.2004 -] CDE120..UKP |
31236-20080 |
— | ||
|
31237
|
31237
31237-20010
Boot, Clutch Release Fork Support
[07.2005 -] CDE120..UKP |
31237-20010 |
— | ||
|
31250
|
31250
31250-05070 Disc Assy, ClutchCLUTCH [06.2004 -] CDE120..UKP |
31250-05070 |
US $103.08 |
||
|
90119W0016
|
90119W0016
90119-W0016
Bolt (For Transmission Control Cable Bracket)
|
90119-W0016 |
— | ||
| replacement | |||||
|
90119W0016
|
90119W0016
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.70 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.70 |
||
