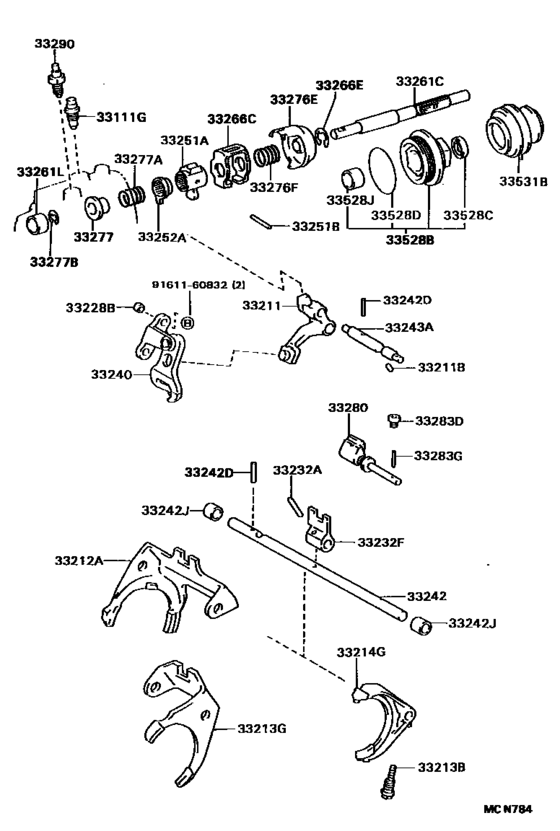

Gear Shift Fork & Lever Shaft (Mtm) ([05.1993 - ] S50,S51 (9305- )CE100,101,102,106,107,108..5F) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- CE100
- grade
- DX
- body
- 4DS
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111G
|
33111G
90930-03133 Plug, Breather[06.1991 - 03.1992] CE100,106,108..5F |
90930-03133 |
from US $5.92 |
||
|
33211
|
33211
33211-32020 Fork, Reverse Shift[06.1991 - 09.1991] CE100..5F |
33211-32020 |
US $42.81 |
||
| replacement | |||||
|
33211
|
33211
33270-32010 Fork, Reverse Shift[06.1991 - 09.1991] CE100..5F |
33270-32010 |
US $51.54 |
||
|
33211
|
33211
33270-32010 Fork, Reverse Shift[09.1991 - 05.1992] CE100,106,108..5F |
33270-32010 |
US $51.54 |
||
|
33211
|
33211
33270-33011 Fork, Reverse Shift[05.1992 -] CE100,101,102,106,107,108..5F |
33270-33011 |
US $63.34 |
||
|
33211B
|
33211B
90361-08002 Roller(For Reverse Shift Fork)[06.1991 -] CE100,101,102,106,107,108..5F |
90361-08002 |
US $3.06 |
||
|
33212A
|
33212A
33210-32022 Fork, Gear Shift, No.1[06.1991 - 05.1992] CE100,106,108..5F |
33210-32022 |
US $215.49 |
||
| replacement | |||||
|
33212A
|
33212A
33210-32023 Fork, Gear Shift, No.1[06.1991 - 05.1992] CE100,106,108..5F |
33210-32023 |
US $216.94 |
||
|
33212A
|
33212A
33210-32023 Fork, Gear Shift, No.1[05.1992 -] CE100,101,102,106,107,108..5F |
33210-32023 |
US $216.94 |
||
|
33213B
|
33213B
90105-06065 Bolt(For Shift Fork Set)[06.1991 -] CE100,101,102,106,107,108..5F |
90105-06065 |
US $2.33 |
||
|
33213G
|
33213G
33220-32022
Fork, Gear Shift, No.2
[06.1991 - 05.1992] CE100,106,108..5F |
33220-32022 |
— | ||
| replacement | |||||
|
33213G
|
33213G
33220-32024
Fork, Gear Shift, No.2
[06.1991 - 05.1992] CE100,106,108..5F |
33220-32024 |
— | ||
|
33213G
|
33213G
33220-32023 Fork, Gear Shift, No.2[05.1992 - 06.1998] CE100,101,102,106,107,108..5F |
33220-32023 |
US $104.83 |
||
| replacement | |||||
|
33213G
|
33213G
33220-32024
Fork, Gear Shift, No.2
[05.1992 - 06.1998] CE100,101,102,106,107,108..5F |
33220-32024 |
— | ||
|
33214G
|
33214G
33214-32021
Fork, Gear Shift, No.3
[06.1991 - 05.1992] CE100,106,108..5F |
33214-32021 |
— | ||
|
33214G
|
33214G
33214-33010 Fork, Gear Shift, No.3[05.1993 -] CE100,101,102,106,107,108..5F |
33214-33010 |
US $58.53 |
||
|
33214G
|
33214G
33214-33020 Fork, Gear Shift, No.3[05.1992 - 05.1993] CE100,106,108..5F |
33214-33020 |
US $52.71 |
||
|
33228B
|
33228B
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[06.1991 -] CE100,101,102,106,107,108..5F |
90253-11001 |
US $1.92 |
||
|
33232A
|
33232A
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[06.1991 -] CE100,101,102,106,107,108..5F |
90254-05001 |
from US $0.99 |
||
|
33232F
|
33232F
33232-32012 Head, Gear Shift, No.1[06.1991 -] CE100,101,102,106,107,108..5F |
33232-32012 |
US $42.37 |
||
|
33240
|
33240
33240-32020 Bracket Assy, Reverse Shift Arm[06.1991 - 05.1992] CE100,106,108..5F |
33240-32020 |
US $82.99 |
||
|
33240
|
33240
33240-33010 Bracket Assy, Reverse Shift Arm[05.1992 -] CE100,101,102,106,107,108..5F |
33240-33010 |
US $99.01 |
||
|
33242
|
33242
33242-32020 Shaft, Gear Shift Fork, No.1[06.1991 - 05.1992] CE100,106,108..5F |
33242-32020 |
US $56.78 |
||
|
33242
|
33242
33242-33020 Shaft, Gear Shift Fork, No.1[05.1992 -] CE100,101,102,106,107,108..5F |
33242-33020 |
US $56.93 |
||
|
33242D
|
33242D
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[06.1991 -] CE100,101,102,106,107,108..5F |
90254-05001 |
from US $0.99 |
||
|
33242J
|
33242J
90384-14005 Bush (For Shift Fork Shaft)[05.1992 -] CE100,101,102,106,107,108..5F 長さ＝１２．０ |
90384-14005 |
US $3.49 |
||
|
33242J
|
33242J
90389-14043 Bush (For Shift Fork Shaft)[05.1992 -] CE100,101,102,106,107,108..5F 長さ＝１０．１ |
90389-14043 |
US $3.49 |
||
|
33243A
|
33243A
33243-32010 Shaft, Reverse Shift Fork[06.1991 - 06.1998] CE100,101,102,106,107,108..5F |
33243-32010 |
US $19.95 |
||
| replacement | |||||
|
33243A
|
33243A
33243-32011 Shaft, Gear Shift Fork, No.2[06.1991 - 06.1998] CE100,101,102,106,107,108..5F |
33243-32011 |
US $20.68 |
||
|
33251A
|
33251A
33251-32031
Lever, Shift, Inner No.1
[06.1991 - 05.1993] CE100,106,108..5F |
33251-32031 |
— | ||
|
33251A
|
33251A
33251-33010 Lever, Shift, Inner No.1[05.1993 - 06.1998] CE100,101,102,106,107,108..5F |
33251-33010 |
US $19.36 |
||
| replacement | |||||
|
33251A
|
33251A
33251-33011
Lever, Shift, Inner No.1
[05.1993 - 06.1998] CE100,101,102,106,107,108..5F |
33251-33011 |
— | ||
|
33251B
|
33251B
90254-05007 Pin, Slotted Spring (For Shift Inner Lever)[06.1991 -] AE104,109,CE10#..5F 長さ＝４７．０ |
90254-05007 |
US $3.68 |
||
|
33252A
|
33252A
33252-32030 Lever, Shift, Inner No.2[06.1991 - 05.1993] CE100,106,108..5F |
33252-32030 |
US $24.32 |
||
|
33252A
|
33252A
33252-33010 Lever, Shift, Inner No.2[05.1993 -] CE100,101,102,106,107,108..5F |
33252-33010 |
US $8.88 |
||
|
33261C
|
33261C
33261-32031 Shaft, Shift & Select Lever[06.1991 - 05.1992] CE100,106,108..5F |
33261-32031 |
US $35.53 |
||
|
33261C
|
33261C
33261-33010
Shaft, Shift & Select Lever
[05.1992 -] CE100,101,102,106,107,108..5F |
33261-33010 |
— | ||
|
33261L
|
33261L
90384-15002 Bush, Bimetal Formed(For Outer Select Lever)[05.1992 - 11.1999] AE101..6F;CE100,101,102,106,107,108..5F |
90384-15002 |
US $1.76 |
||
|
33266C
|
33266C
33266-32022 Plate, Shift Inter Lock[06.1991 - 05.1993] CE100,106,108..5F |
33266-32022 |
US $19.22 |
||
|
33266C
|
33266C
33266-33011 Plate, Shift Inter Lock[05.1993 - 06.2002] CE100,101,102,106,107,108..5F |
33266-33011 |
US $13.69 |
||
|
33266E
|
33266E
90523-14001 Ring, E(For Bleeder Clutch Release Tube)[06.1991 -] CE100,101,102,106,107,108..5F |
90523-14001 |
US $1.75 |
||
|
33276E
|
33276E
33276-33011 Seat, Select Spring, No.1[05.1993 -] CE100,101,102,106,107,108..5F |
33276-33011 |
US $19.36 |
||
|
33276F
|
33276F
90501-13036 Spring, Compression, No.1 (For Select Return)[05.1993 -] CE100,101,102,106,107,108..5F |
90501-13036 |
US $1.89 |
||
|
33276F
|
33276F
90501-14129
Spring, Compression, No.1 (For Select Return)
[06.1991 - 05.1993] CE100,106,108..5F |
90501-14129 |
— | ||
|
33277
|
33277
33277-33010 Seat, Select Spring, No.2[05.1993 -] CE100,101,102,106,107,108..5F |
33277-33010 |
US $7.13 |
||
|
33277A
|
33277A
90501-15009
Spring, Compression, No.2 (For Select Return)
[06.1991 - 05.1993] CE100,106,108..5F |
90501-15009 |
— | ||
|
33277A
|
33277A
90501-16135 Spring, Compression, No.2 (For Select Return)[05.1993 - 02.1994] CE100,106,108..5F |
90501-16135 |
US $3.20 |
||
| replacement | |||||
|
33277A
|
33277A
90501-16144 Spring, Compression, No.2 (For Select Return)[05.1993 - 02.1994] CE100,106,108..5F |
90501-16144 |
US $3.20 |
||
|
33277A
|
33277A
90501-16144 Spring, Compression, No.2 (For Select Return)[02.1994 -] CE100,101,102,106,107,108..5F |
90501-16144 |
US $3.20 |
||
|
33277B
|
33277B
90523-12003 Ring, E(For Reverse Restrict Pin)[06.1991 -] AE100,101,CE100,101,102,106,107,108,EE10#..MTM |
90523-12003 |
US $0.61 |
||
|
33280
|
33280
33280-32012 Pin Assy, Reverse Restrict[06.1991 -] CE100,101,102,106,107,108..5F |
33280-32012 |
US $44.84 |
||
|
33283D
|
33283D
90341-10065 Plug, Straight, No.1[06.1991 - 07.1999] AE10#,CE10#,EE10#..MTM |
90341-10065 |
from US $3.52 |
||
|
33283G
|
33283G
90254-04005 Pin, Slotted Spring (For Reverse Restrict Pin)[06.1991 -] CE100,101,102,106,107,108..5F |
90254-04005 |
US $0.96 |
||
|
33290
|
33290
33290-17010 Ball Assy, Lock, No.1[04.1992 - 05.1993] CE100,106,108..5F |
33290-17010 |
US $28.97 |
||
|
33290
|
33290
33290-32012
Ball Assy, Lock, No.1
[06.1991 - 04.1992] CE100,106,108..5F |
33290-32012 |
— | ||
|
33290
|
33290
33290-33010 Ball Assy, Lock, No.1[05.1993 - 02.1996] CE100,106,108..5F |
33290-33010 |
US $26.35 |
||
| replacement | |||||
|
33290
|
33290
33290-52040 Ball Assy, Lock, No.1[05.1993 - 02.1996] CE100,106,108..5F |
33290-52040 |
US $16.60 |
||
|
33528B
|
33528B
33506-32040 Cover, Control Shaft[06.1991 - 05.1992] CE100,106,108..5F |
33506-32040 |
US $37.13 |
||
| replacement | |||||
|
33528B
|
33528B
33506-33010 Cover, Control Shaft[06.1991 - 05.1992] CE100,106,108..5F |
33506-33010 |
US $36.69 |
||
|
33528B
|
33528B
33506-33010 Cover, Control Shaft[05.1992 -] CE100,101,102,106,107,108..5F |
33506-33010 |
US $36.69 |
||
|
33528C
|
33528C
90311-18013 Seal, Oil (For Control Shaft Cover)[06.1991 - 10.1992] CE100,106,108..5F |
90311-18013 |
from US $2.32 |
||
|
33528D
|
33528D
90301-65004
Ring, O (For Control Shaft Cover)
[06.1991 -] CE100,101,102,106,107,108..5F |
90301-65004 |
— | ||
|
33528J
|
33528J
90384-18017 Bush, Bimetal Formed (For Shift & Select Lever Shaft)[05.1993 - 12.1999] AE101..6F;CE100,101,102,106,107,108..5F |
90384-18017 |
US $3.32 |
||
|
33531B
|
33531B
33531-32011 Boot, Dust (For Shift & Select Lever Shaft)[06.1991 - 05.1993] CE100,106,108..5F |
33531-32011 |
US $10.48 |
||
|
9161160832
|
9161160832
91611-60832 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91611-60832 |
US $2.77 |
||
