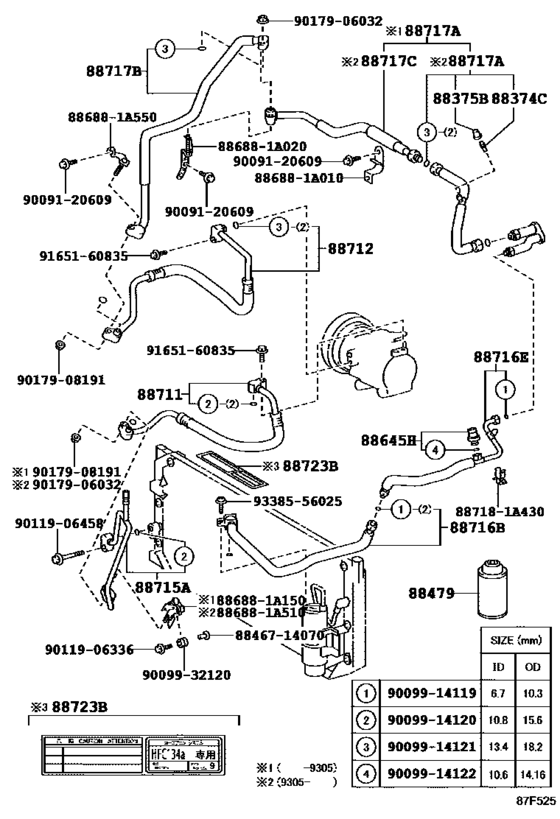

Heating & Air Conditioning - Cooler Piping ([05.1993 - 08.1995] DEALER OPTION (9305-9508)CE10#..CTD,DX,GL,L,LX,SEL,XE) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- CE100
- grade
- DX
- body
- 4DS
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374C
|
88374C
48094-10010 Valve, Service, No.1[06.1991 - 05.1993] CE10# |
48094-10010 |
US $4.08 |
||
| replacement | |||||
|
88374C
|
88374C
88374-20020 Valve, Service, No.1[06.1991 - 05.1993] CE10# |
88374-20020 |
US $5.12 |
||
|
88374C
|
88374C
88374-30010 Valve, Service, No.1[05.1993 - 01.1994] AE100,104,CE10#,EE10#..CTD,DX,GL,L,LX,SEL,XE |
88374-30010 |
from US $3.37 |
||
|
88375B
|
88375B
88375-30270
Cap, Cooler Compressor Service Valve
[06.1991 - 05.1992] CE100,104;AE100,104,CE106,108,109,EE10#..CTD,DX,GL,L,LT,LX,XE |
88375-30270 |
— | ||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[05.1993 - 08.1994] AE100,104,CE10#,EE10#..CTD,DX,DXJ,GL,L,LX,SEL,XE |
88375-30290 |
from US $0.94 |
||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[06.1991 - 05.1992] AE100,104,CE10#,EE10#..CTD,DX,GL,L,LT,LX,XE ２５０Ｇ |
90986-02004 |
— | ||
|
88479
|
88479
90986-02006
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[05.1993 - 05.1997] AE100,104,CE10#,EE101,106,107,108..CTD,DX,GL,L,LX,SEL,XE ３００Ｇ |
90986-02006 |
— | ||
| replacement | |||||
|
88479
|
88479
90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)[05.1993 - 05.1997] AE100,104,CE10#,EE101,106,107,108..CTD,DX,GL,L,LX,SEL,XE ３００Ｇ |
90986-02008 |
US $22.80 |
||
|
88479
|
88479
90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)[05.1993 -] EE101..DX;AE100,104,CE102,104,108,EE104,108..L,SEL,XE;AE109,CE100,105,106,107,109, EE102,103,106,107..CTD,DX,DXJ,GL,SEL,XE ２００Ｇ |
90986-02008 |
US $22.80 |
||
|
88645H
|
88645H
88645-20050 Switch, Pressure[05.1993 -] AE10#,CE10#,EE10# |
88645-20050 |
US $159.08 |
||
|
88645H
|
88645H
88645-50010
Switch, Pressure No.1
[06.1991 - 05.1993] AE10#,CE10#,EE10# |
88645-50010 |
— | ||
|
88711
|
88711
88711-12730 Hose, Cooler Refrigerant Discharge, No.1[06.1991 - 05.1993] CE10#..CTD,DX,GL,L,LX,XE |
88711-12730 |
US $187.82 |
||
|
88711
|
88711
88711-1A090 Hose, Cooler Refrigerant Discharge, No.1[05.1993 -] CE10# |
88711-1A090 |
US $180.54 |
||
|
88712
|
88712
88712-12870 Hose, Cooler Refrigerant Suction, No.1[06.1991 - 05.1993] CE10# |
88712-12870 |
US $174.72 |
||
|
88712
|
88712
88712-1A120 Hose, Cooler Refrigerant Suction, No.1[05.1993 - 08.1995] CE10#..CTD,DX,GL,L,LX,SEL,XE |
88712-1A120 |
US $179.09 |
||
|
88715A
|
88715A
88715-12390 Pipe, Cooler Refrigerant Discharge, A[06.1991 - 05.1993] CE100,106,108,109..CTD,DX,GL,L; CE100..4FC..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ); CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
88715-12390 |
US $41.93 |
||
|
88715A
|
88715A
88715-12480 Pipe, Cooler Refrigerant Discharge, A[05.1993 - 05.1997] CE10#..CTD,DX,G,GL,L,LT,SEL,XE |
88715-12480 |
US $110.66 |
||
|
88716B
|
88716B
88716-1A040
Pipe, Cooler Refrigerant Liquid, B
[06.1991 - 05.1993] CE10#..CTD,DX,GL,L,LX,XE |
88716-1A040 |
— | ||
|
88716B
|
88716B
88716-1A370 Pipe, Cooler Refrigerant Liquid, B[05.1993 -] CE100,102,104,105,106,107,108,109..CTD,DX,DXJ,GL,L,LX |
88716-1A370 |
US $64.36 |
||
|
88716E
|
88716E
88716-1A030 Pipe, Cooler Refrigerant Liquid, E[06.1991 - 05.1993] CE100..4FC..LX;CE100,106,108,109..CTD,DX,GL,L; CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
88716-1A030 |
US $78.62 |
||
| replacement | |||||
|
88716E
|
88716E
88706-12090 Pipe, Cooler Refrigerant Liquid, E[06.1991 - 05.1993] CE100..4FC..LX;CE100,106,108,109..CTD,DX,GL,L; CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
88706-12090 |
US $308.67 |
||
|
88716E
|
88716E
88716-1A340 Pipe, Cooler Refrigerant Liquid, E[05.1993 -] CE10#..CTD,DX,DXJ,G,GL,L,LT,SEL,XE |
88716-1A340 |
US $52.42 |
||
|
88717A
|
88717A
88717-12530 Pipe, Cooler Refrigerant Suction, A[06.1991 - 05.1992] CE100..4FC..LX;CE10#..CTD,DX,GL,L,SEL; CE100..XE;CE104..LX,XE;CE100..5F..LX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ｴｱｺﾝ=DOP) |
88717-12530 |
US $199.47 |
||
|
88717A
|
88717A
88717-12780 Pipe, Cooler Refrigerant Suction, A[05.1993 - 01.1994] CE100..DX |
88717-12780 |
US $104.83 |
||
|
88717B
|
88717B
88707-12040 Pipe, Cooler Refrigerant Suction, B[06.1991 - 05.1993] CE10# |
88707-12040 |
US $205.30 |
||
|
88717B
|
88717B
88717-12730 Pipe, Cooler Refrigerant Suction, B[05.1993 - 08.1995] CE10#..CTD,DX,GL,L,LX,SEL,XE |
88717-12730 |
US $193.65 |
||
| replacement | |||||
|
88717B
|
88717B
88707-12120 Pipe, Cooler Refrigerant Suction, B[05.1993 - 08.1995] CE10#..CTD,DX,GL,L,LX,SEL,XE |
88707-12120 |
US $202.38 |
||
|
88717C
|
88717C
88717-12790 Pipe, Cooler Refrigerant Suction, C[05.1993 - 01.1994] CE100,104 |
88717-12790 |
US $87.36 |
||
|
88723B
|
88723B
88723-12050
Label, Cooler Service Caution
[06.1991 - 05.1993] AE10#,CE10#,EE10# ｲﾗｽﾄ ｻﾝｼﾖｳ |
88723-12050 |
— | ||
|
88723B
|
88723B
88723-12110
Label, Cooler Service Caution
[05.1993 - 08.1995] AE10#,CE10#,EE10# ｲﾗｽﾄ ｻﾝｼﾖｳ |
88723-12110 |
— | ||
|
886881A010
|
886881A010
88688-1A010
Bracket, Cooler Diaphragm
|
88688-1A010 |
— | ||
|
886881A020
|
886881A020
88688-1A020
Bracket, Cooler Diaphragm
|
88688-1A020 |
— | ||
|
886881A150
|
886881A150
88688-1A150
Bracket, Cooler Diaphragm
|
88688-1A150 |
— | ||
|
886881A510
|
886881A510
88688-1A510
Bracket, Cooler Diaphragm
|
88688-1A510 |
— | ||
| replacement | |||||
|
886881A510
|
886881A510
88688-1A490
Bracket, Cooler Diaphragm
|
88688-1A490 |
— | ||
|
886881A550
|
886881A550
88688-1A550
Bracket, Cooler Diaphragm
|
88688-1A550 |
— | ||
|
887181A430
|
887181A430
88718-1A430
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-1A430 |
— | ||
|
8846714070
|
8846714070
88467-14070
Insulator (For Power Take-Off Cable Bracket)
|
88467-14070 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.44 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.13 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.77 |
||
|
9009914122
|
9009914122
90099-14122 O-RING |
90099-14122 |
from US $1.27 |
||
|
9009932120
|
9009932120
90099-32120
Cushion, Cooler Condenser, No.2
|
90099-32120 |
— | ||
| replacement | |||||
|
9009932120
|
9009932120
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9011906336
|
9011906336
90119-06336 SCREW |
90119-06336 |
US $1.28 |
||
|
9011906458
|
9011906458
90119-06458 New Genuine Part |
90119-06458 |
US $1.89 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017908191
|
9017908191
90179-08191 New Genuine Part |
90179-08191 |
US $1.44 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
