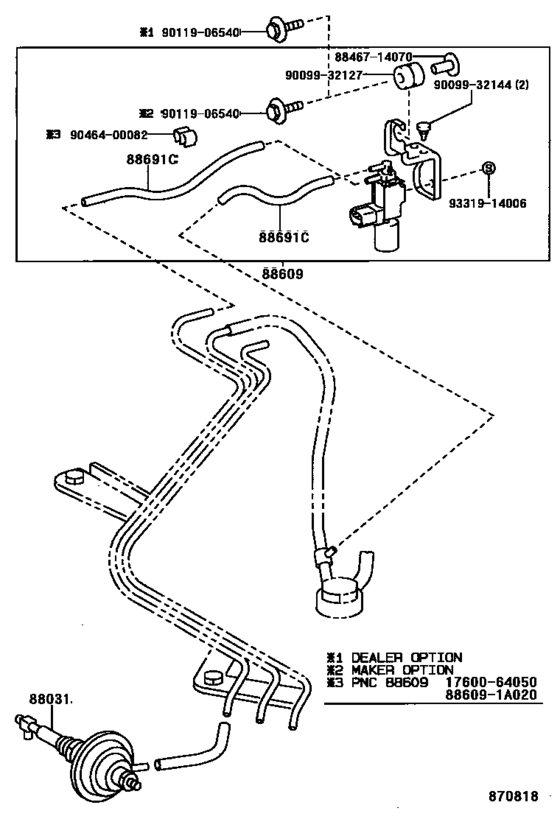

Heating & Air Conditioning - Vacuum Piping ([05.1993 - ] (9305- )CE100,104,106,108,109) Diagram Toyota COROLLA
- Year
- 1991 - 1995
- Sales region
- Japan
- Frame
- CE100
- grade
- DX
- body
- 4DS
- ENGINE
- 2C
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 06.1991
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-20080 Actuator Set, Idle-Up[06.1991 - 09.1991] CE100..DX,SEL;CE100..5F..(LX,XE) |
88031-20080 |
US $53.46 |
||
|
88609
|
88609
88609-12790
Device Sub-Assy, Idle Up
[01.1994 - 04.1998] CE100..4FC..DX;CE10#..5F..(CTD,DX,GL,L,LX,SEL,XE) ｱﾘ(ｶﾝﾚｲﾁ ｱｲﾄﾞﾙ ｱﾂﾌﾟ) |
88609-12790 |
— | ||
|
88609
|
88609
88609-1A020
Device Sub-Assy, Idle Up
[05.1993 - 01.1994] CE100,104..DX,SEL,XE ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
88609-1A020 |
— | ||
|
88609
|
88609
88690-12840
Device Sub-Assy, Idle Up
[06.1991 - 05.1993] CE104,106,109;CE100..5F..(LX,SEL,XE); CE100..DX;CE108..5F |
88690-12840 |
— | ||
|
88691C
|
88691C
90999-92002
Air Hose (300 mm)
[06.1991 - 05.1992] CE100..4FC..DX;CE100,104,108..5F..(DX,L,LX,XE) ＊Ｈ，Ｌ＝２７０，マーク＝＃０ |
90999-92002 |
— | ||
|
88691C
|
88691C
90999-92003
Hose, Breather (For Transfer Case)
[05.1993 - 01.1994] CE100..5F..DX;CE100,104..LX,SEL,XE ＊Ｈ，Ｌ＝４５０，マーク＝＃＊; CE106,108..4FC ＊Ｈ，Ｌ＝３８０，マーク＝＃＊,ｶﾝﾚｲﾁ ｼﾖｳ; CE106,108,109..5F ＊Ｈ，Ｌ＝４２０，マーク＝＃＊,ｶﾝﾚｲﾁ ｼﾖｳ; CE100..4FC..DX ＊Ｈ，Ｌ＝４５０，マーク＝＃＊,ﾋ-ﾀ ｱｲﾄﾞﾙ ｱﾂﾌﾟ OR ｸ-ﾗ ｱｲﾄﾞﾙ ｱﾂﾌﾟ |
90999-92003 |
— | ||
|
8846714070
|
8846714070
88467-14070
Insulator (For Power Take-Off Cable Bracket)
|
88467-14070 |
— | ||
|
9009932127
|
9009932127
90099-32127
Grommet (For Power Take-Off Cable Bracket)
|
90099-32127 |
— | ||
| replacement | |||||
|
9009932127
|
9009932127
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9009932144
|
9009932144
90099-32144
New Genuine Part
|
90099-32144 |
— | ||
|
9011906540
|
9011906540
90119-06540
New Genuine Part
|
90119-06540 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
